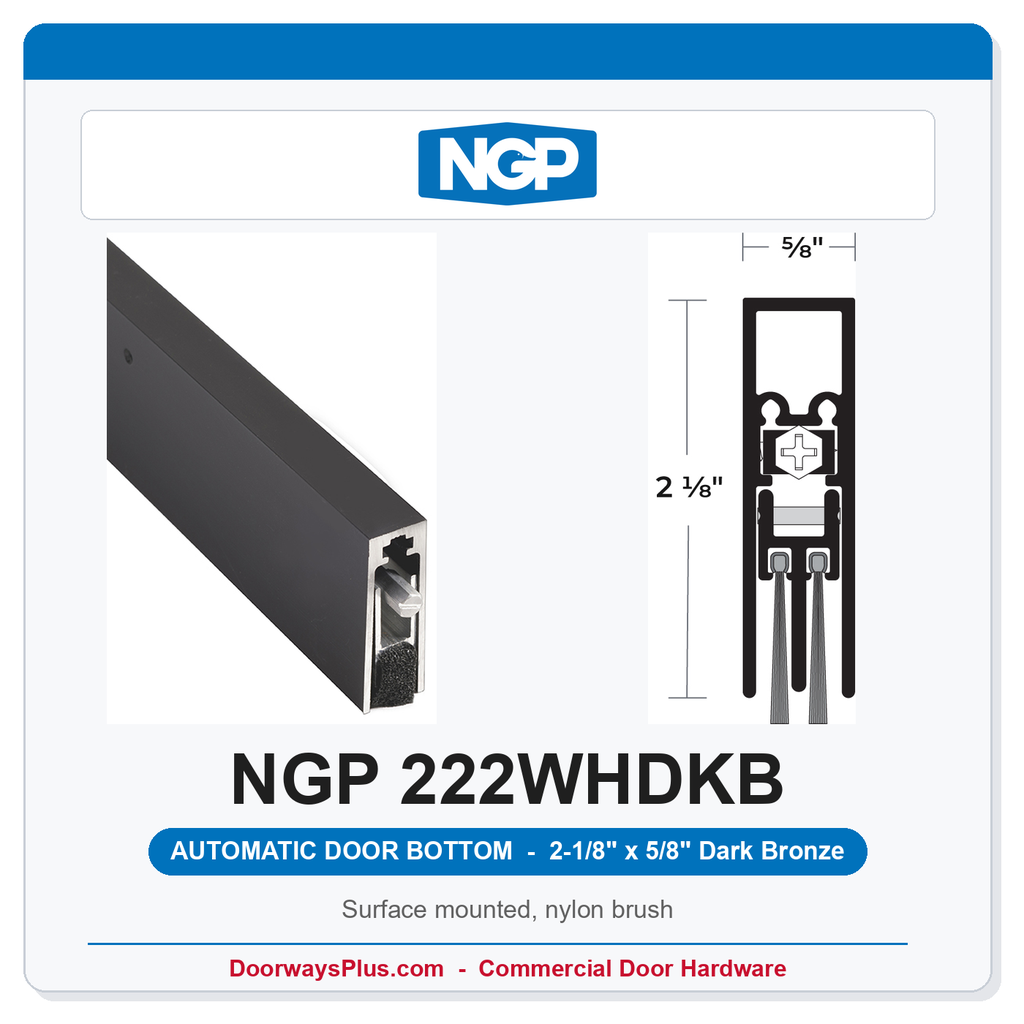

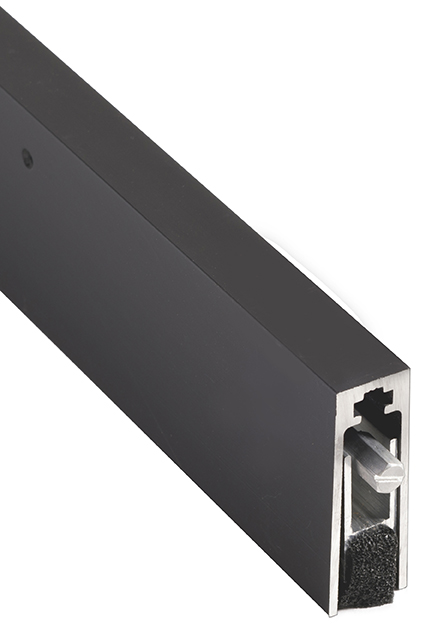

NGP 222WHDKB Automatic Door Bottom | Dark Bronze
The National Guard Products 222WHDKB is a commercial automatic door bottom (surface mounted). Housing 2-1/8" x 5/8", max drop 3/4". Insert: Nylon Brush. Finish: Dark Bronze.
BHMA A156.22 Grade 1 (1,000,000-cycle). Surface ADBs are handed (RH supplied, field reversible). Specify net length; 20" and over can be cut down up to 1-1/2". Min 11-1/2", max 60". Use with a threshold for the best seal.
Technical Specifications
| Model | NGP 222WHDKB |
| Type | Automatic Door Bottom |
| Mounting | Surface Mounted |

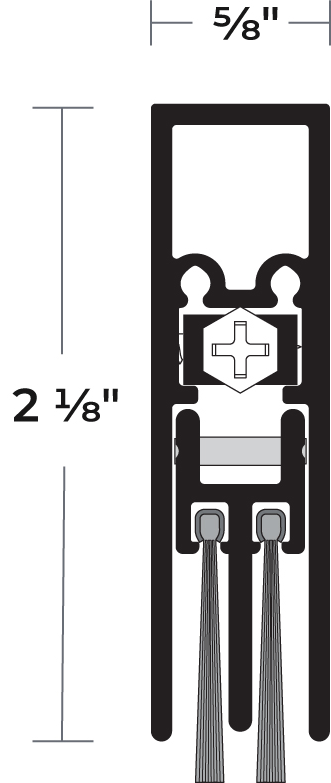

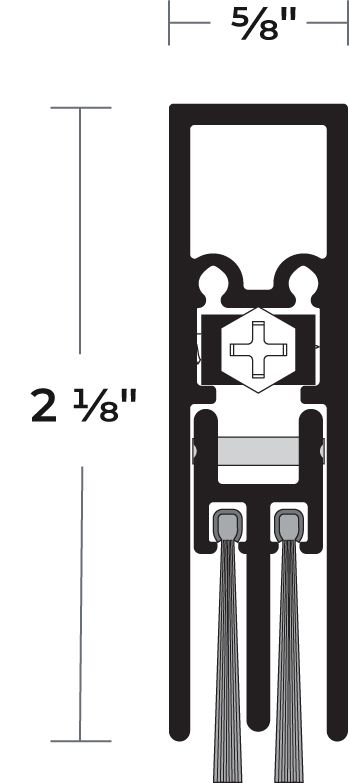

| Housing | 2-1/8" x 5/8" |
| Max drop | 3/4" |
| Insert | Nylon Brush |
| Finish | Dark Bronze |
| Available Lengths | 36", 42", and 48" |
| Fire listing | Non-Rated on this listing (BHMA A156.22 Grade 1; no UL file cited) |
Ordering & Lead Time
Made to order (not stocked). Lead time: 5-7 business days.
| Length | 36 Inch or 42 Inch or 48 Inch |
| Brand | National Guard Products |
| Bottom Weatherseal Type | Automatic Door Bottom |
| Housing Finish | Dark Bronze |
| Fire Rated | Non-Rated |
| Insert Material | Nylon Brush |
| Mounting Type | Surface Mounted |
| Sweeps, Door Bottom or Rain Drip | Door Bottom |
