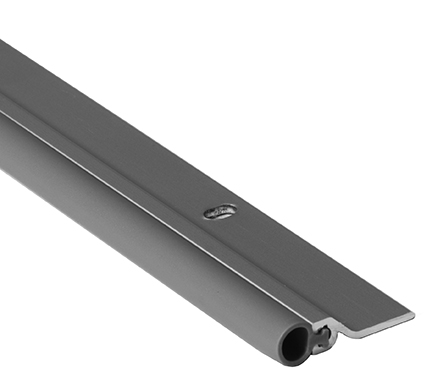

National Guard Products 160VA Vinyl Perimeter Weatherstrip Set – Anodized Aluminum, Head & Jamb, Five Opening Sizes
The National Guard Products (NGP) 160VA Vinyl Perimeter Weatherstrip is a head-and-jamb perimeter seal set finished in Anodized Aluminum with a black vinyl (TPV) insert, engineered to deliver a continuous, flame-resistant, moisture-resistant seal around the full perimeter of commercial door openings. Each set ships as one head piece and two jamb pieces, surface applied to the frame stop with furnished stainless steel screws, and is available in five standard opening sizes — 3'0 x 7'0, 4'0 x 7'0, 6'0 x 7'0, 6'0 x 8'0, and 8'0 x 8'0 — making it a versatile choice for single commercial doors, pairs, and oversized openings in hollow metal or wood fire-rated assemblies. UL certified for positive pressure and standard fire conditions, the NGP 160VA is a code-compliant, budget-friendly solution for architects, contractors, and facility managers specifying perimeter weatherstrip on fire-rated and non-rated door openings.
NGP 160VA High-Performance Weatherstrip Features
- UL Certified – Standard Fire (ANSI/UL 10B & CAN/ULC-S104): Certified for application to hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes, complying with NFPA 80 and NFPA 252.
- UL Certified – Positive Pressure (ANSI/UL 10C): Positive pressure certification meets IBC, NFPA 80, and NFPA 252 requirements for hollow metal (up to 3 Hr.) and wood fire doors (up to 90 min.), providing added code confidence on egress and stairwell openings.
- Aluminum Alloy 6063-T5 Extrusion: The carrier channel is extruded from 6063-T5 aluminum alloy for a rigid, corrosion-resistant frame that holds its shape across the full door width and height.
- Thermo-Plastic Vulcanizate (TPV) Vinyl Insert: The black TPV seal compresses against the door edge to minimize air infiltration and is recommended by NGP for achieving minimum air leakage and a tight perimeter seal.
- Wide Operating Temperature Range: Rated for continuous service from -40°F to 250°F, supporting performance in cold-storage, industrial, and high-heat environments without seal degradation.
- Flame-Resistant & Moisture-Resistant: The TPV insert material resists ignition and repels moisture, helping protect the door frame stop area from water intrusion and contributing to fire-door assembly integrity.
- Slotted Screw Holes for Field Adjustment: Slotted mounting holes allow lateral positioning adjustment during installation so the seal compresses evenly against the door face without shimming or special tools.
- Stainless Steel Fasteners Furnished: Each set includes #6 x 3/4" stainless steel sheet metal screws — no need to source hardware separately, and stainless construction resists corrosion in high-humidity or exterior-adjacent applications.
- Head-and-Jamb Set Convenience: Sold as a complete perimeter set (1 head + 2 jambs) cut to the specified opening size, reducing field measuring and cutting labor versus buying continuous stock lengths.
- Five Opening Sizes Available: Offered in 3'0 x 7'0, 4'0 x 7'0, 6'0 x 7'0, 6'0 x 8'0, and 8'0 x 8'0 to suit single commercial doors, double-egress pairs, and oversized openings.
- Economical Perimeter Seal: NGP positions the 160VA as an economical product, delivering UL-listed fire-door compliance at a practical price point for high-volume or budget-sensitive projects.
Technical Details
| Manufacturer | National Guard Products (NGP) |
| Model Number | 160VA |
| Product Type | Vinyl Perimeter Weatherstrip – Head & Jamb Set |
| Finish | Anodized Aluminum |
| Insert / Seal Material | Thermo-Plastic Vulcanizate (TPV) – Black |
| Carrier Material | Aluminum Alloy 6063, T5 Temper |

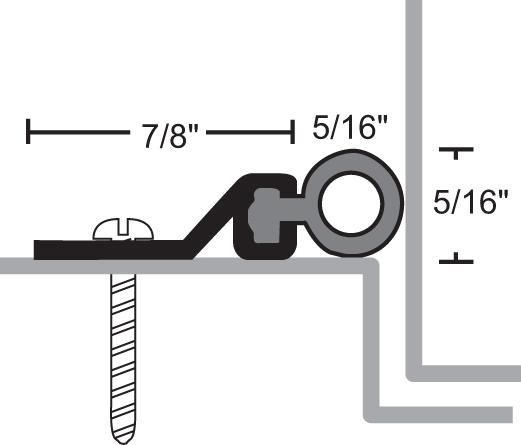

| Typical Profile Section | 7/8" x 5/16" |
| Set Configuration | 1 Head + 2 Jambs (complete perimeter set) |
| Available Opening Sizes | 3'0 x 7'0 | 4'0 x 7'0 | 6'0 x 7'0 | 6'0 x 8'0 | 8'0 x 8'0 |
| Mounting Method | Surface applied to the frame stop |
| Fasteners Furnished | #6 x 3/4" Stainless Steel Sheet Metal Screws |
| Screw Holes | Slotted for field adjustment |
| Temperature Range | -40°F to 250°F |
| Fire-Door Application | Hollow Metal doors rated up to 3 hours; Wood doors rated up to 90 minutes |
| UL Certification – Standard Fire | ANSI/UL 10B & CAN/ULC-S104; complies with NFPA 80 & NFPA 252 |
| UL Certification – Positive Pressure | ANSI/UL 10C; complies with IBC, NFPA 80 & NFPA 252 |
| Air Infiltration | Recommended by NGP for minimum air leakage and tight perimeter seal |
| Flame-Resistant | Yes |
| Moisture-Resistant | Yes |
| Lead Time | Made to order – approximately 10–15 business days |
Pro-Tip for Perimeter Sealing
The NGP 160VA is designed to be surface applied directly to the frame stop on the head and both jambs. Before driving fasteners fully, take advantage of the slotted screw holes to shift the seal channel inward or outward until the TPV insert contacts the door face with even compression. Once position is confirmed, tighten the furnished #6 x 3/4" stainless steel sheet metal screws to lock the channel in place. Installing the head piece first and then fitting the jamb pieces up to it creates clean corner junctions and a continuous air and smoke barrier around the full door perimeter.
| Gasketing Set Size | 3'0 x 7'0 Set or 4'0 x 7'0 Set or 6'0 x 7'0 Set or 6'0 x 8'0 Set or 8'0 x 8'0 Set |
| Brand | National Guard Products |
| Housing Finish | Aluminum |
| Weatherstripping Type | Perimeter Gasketing |
| Housing Size | 7/8" x 5/16" |
| Insert Color | Black |
| Fasteners | #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished |
| Fire Rated | Fire Rated |
| Insert Material | Vinyl |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
