National Guard Products 137SA Silicone Dense Bulb Perimeter Weatherstrip Head-and-Jamb Set – Anodized Aluminum

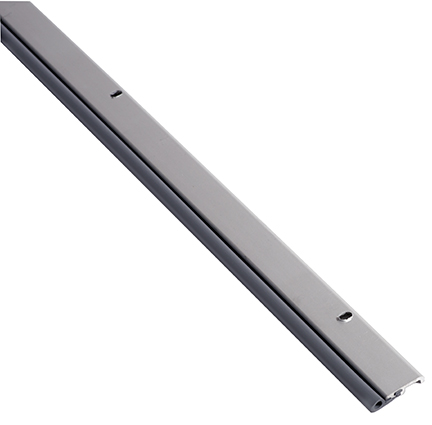

National Guard Products (NGP) model 137SA is a silicone dense bulb perimeter weatherstrip head-and-jamb set finished in anodized aluminum with a black dense silicone bulb insert. Each set ships as one head piece and two jamb pieces, cut to length for the specified opening, and is screw-applied directly to the frame stop. The 137SA is engineered to deliver an air-tight perimeter seal while carrying a full stack of UL fire-door and smoke-and-draft-control certifications, making it the right choice for hollow metal and wood fire-rated openings in commercial, institutional, and high-security facilities. Available in five standard opening sizes and made to order, this is a specification-grade product built to perform across extreme temperature swings, high-ozone environments, and spaces equipped with FM200 or Halon fire-suppression systems.
High-Performance Silicone Perimeter Weatherstrip Features
- Dense Silicone Bulb: Black synthetic rubber polymer delivers excellent flexibility and memory, maintaining a consistent seal cycle after cycle without permanent compression set.
- Extreme Temperature Range: Rated from -81°F to 300°F, the silicone bulb remains flexible at temperatures where vinyl or EPDM compounds may stiffen or crack, ensuring reliable performance in cold-storage corridors and high-heat mechanical rooms alike.
- Aluminum Alloy 6063-T5 Retainer: The extruded retainer combines light weight with corrosion resistance, and the anodized finish provides a clean, durable appearance suited to high-traffic commercial openings.
- FM200 and Halon Compatible: Specifically recommended for areas employing FM200 or Halon gaseous fire-suppression systems, where moisture-sensitive or reactive gasket materials are a liability.
- UL-Certified Fire and Smoke Control: Certified under ANSI/UL10B (fire) and ANSI/UL10C (positive pressure fire and smoke) for hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes; also UL-certified to CAN/ULC-S104 for Canadian applications.
- Smoke & Draft Category H: Certified by UL to ANSI/UL1784 Category ‘H’, complying with IBC and NFPA 105 for use on ‘S’-labeled positive pressure hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes.
- ANSI/BHMA A156.22 Certified: Certified to the American National Standard for Door Gasketing and Edge Sealing Systems and listed in the BHMA Certified Products Directory, including performance tests for heat and cold.
- NFPA 80 and NFPA 252 Compliance: Meets code requirements for fire door assemblies under both the Standard for Fire Doors and Other Opening Protectives and the Standard Methods of Fire Tests of Door Assemblies.
- Ozone, UV, and Aging Resistance: Silicone chemistry provides excellent resistance to environmental degradation, extending service life in exterior vestibules, curtain-wall entries, and sun-exposed openings.
- Moisture Resistance: Impervious to moisture absorption, preventing swelling, mold growth, or bond failure in high-humidity environments such as pool facilities, kitchens, and exterior entries.
- Flame Resistant: The silicone bulb carries flame-resistant properties consistent with its fire-door certification package.
- Stainless Steel Fasteners Furnished: #6 x 3/4" stainless steel sheet metal screws are included, providing corrosion-resistant attachment appropriate for interior and protected exterior applications.
- Slotted Screw Holes: Factory-slotted holes allow field adjustment of the retainer position for a precise, gap-free fit against the door face.
- Head-and-Jamb Set Format: Sold as a complete perimeter set (one head piece plus two jamb pieces) cut to the ordered opening size, eliminating the need to field-cut or source separate components.
- Made to Order: Custom cut to the specified opening; please allow 10–15 business days for production and shipment.
Technical Details
| Manufacturer | National Guard Products (NGP) |
| Model Number | 137SA |
| Product Type | Silicone Dense Bulb Perimeter Weatherstrip Head-and-Jamb Set |
| Finish | Anodized Aluminum |
| Insert / Seal Material | Dense Silicone, Black |
| Retainer Material | Aluminum Alloy 6063, T5 Temper |

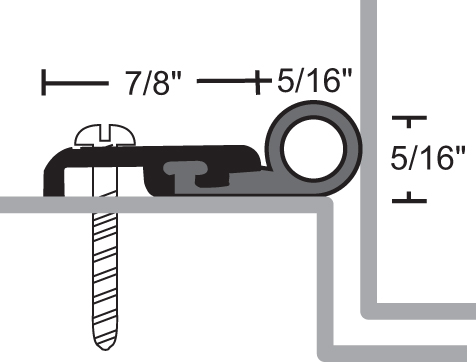

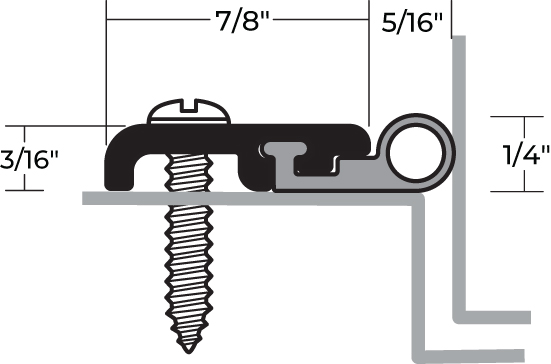

| Typical Section Profile | 7/8" x 5/16" |
| Set Contents | 1 Head piece + 2 Jamb pieces |
| Application Method | Screw-applied to the frame stop |
| Fasteners Furnished | #6 x 3/4" Stainless Steel Sheet Metal Screws |
| Screw Holes | Slotted for field adjustment |
| Available Opening Sizes | 3’0 x 7’0, 4’0 x 7’0, 6’0 x 7’0, 6’0 x 8’0, 8’0 x 8’0 |
| Temperature Range | -81°F to 300°F |
| UL Fire Certification (Standard Pressure) | Certified to CAN/ULC-S104 and ANSI/UL10B; complies with NFPA 80 and NFPA 252 — Hollow Metal doors up to 3 hrs., Wood doors up to 90 min. |
| UL Fire Certification (Positive Pressure) | Certified to ANSI/UL10C; complies with IBC, NFPA 80 and NFPA 252 — Hollow Metal doors up to 3 hrs., Wood doors up to 90 min. |
| Smoke & Draft Control | UL-Certified to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 — ‘S’-labeled Positive Pressure Hollow Metal doors up to 3 hrs., Wood doors up to 90 min. |
| ANSI/BHMA Standard | Certified to ANSI/BHMA A156.22; listed in the BHMA Certified Products Directory |
| Compatible Fire Suppression Systems | FM200 and Halon |
| Resistance Properties | Ozone, UV, Aging, Moisture, Flame |
| Availability | Made to Order — 10 to 15 business day lead time |
Pro-Tip for Perimeter Sealing
The 137SA installs surface-applied to the face of the frame stop, with the dense silicone bulb compressing against the door face as the door closes. Before fastening, use the factory-slotted screw holes to slide the retainer inward or outward until the bulb makes even contact along the full height and width of the door. Drive the furnished #6 x 3/4" stainless steel sheet metal screws snugly but not so tightly that the retainer bows — a bowed retainer creates high and low spots in bulb pressure and can compromise both the air seal and the fire-door rating. Install the head piece last, overlapping or mitering the top corners to close any gap between the head and jamb runs. Because the silicone remains flexible from -81°F to 300°F and resists ozone and UV degradation, no seasonal adjustment is typically required after the initial set.
| Gasketing Set Size | 3'0 x 7'0 Set or 4'0 x 7'0 Set or 6'0 x 7'0 Set or 6'0 x 8'0 Set or 8'0 x 8'0 Set |
| Brand | National Guard Products |
| Housing Finish | Aluminum |
| Smoke Rated | Smoke Rated |
| Weatherstripping Type | Perimeter Gasketing |
| Housing Size | 7/8" x 5/16" |
| Insert Color | Black |
| Fasteners | #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished |
| Fire Rated | Fire Rated |
| Insert Material | Silicone |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
