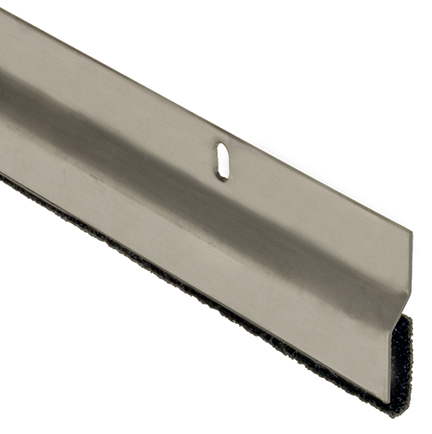

NGP 127NSS Neoprene Perimeter Weatherstrip | Stainless Steel

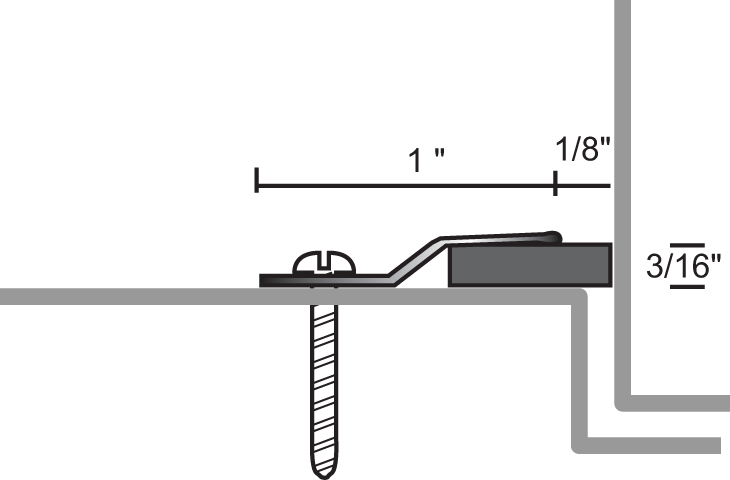

The National Guard Products 127NSS is a commercial neoprene perimeter seal. NGP lists it as Stainless Steel Neoprene Perimeter Seal. Typical section is 1-1/8" x 3/16".
Sold as a head-and-jamb set (1 head + 2 jambs). Available openings: 3'0 x 7'0, 4'0 x 7'0, 6'0 x 7'0, 6'0 x 8'0, 8'0 x 8'0.
Product Features
- Stainless Steel Type 304
- Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix Closed Cell Advanced Elastomeric Foam
- Very Good Abrasion Resistance, Tensile Strength and Memory
- Flame-Resistant
- Moisture-Resistant
- Temperature Range -81F to 275F
- Good Resistance to Ozone, Sunlight and Aging
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
- #6 x 3/4" Stainless Steel SMS Furnished
- Screw Holes Slotted for Adjustment
- Brushed #4 finish (US32D, 630)
- Neoprene is black
Standards
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- AIR INFILTRATION Recommended product for minimum Air Leakage and a tight seal around the perimeter of doors.
- SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category 'H'; complies with IBC and NFPA 105 for use on 'S' labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
- ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Technical Details
| Model | NGP 127NSS |
| Type | Perimeter gasketing / weatherstrip set |
| Manufacturer | National Guard Products |
| Housing size | 1-1/8" x 3/16" |
| Insert | Neoprene |
| Insert color | Neoprene is black |
| Temperature range | Temperature Range -81F to 275F |
| Mounting | Surface, screw applied |
| Certifications | UL10B / CAN/ULC-S104, UL10C positive pressure, UL1784 Category H smoke & draft, BHMA A156.22 |
| Available set sizes | 3'0 x 7'0, 4'0 x 7'0, 6'0 x 7'0, 6'0 x 8'0, 8'0 x 8'0 |
| Application | Head and jamb set (1 head + 2 jambs), screw applied to the frame stop. |
Ordering & Lead Time
Made to order (not stocked). Lead time: 10-15 business days.
| Gasketing Set Size | 3'0 x 7'0 Set or 4'0 x 7'0 Set or 6'0 x 7'0 Set or 6'0 x 8'0 Set or 8'0 x 8'0 Set |
| Brand | National Guard Products |
| Housing Finish | Stainless Steel |
| Smoke Rated | Smoke Rated |
| Weatherstripping Type | Perimeter Gasketing |
| Housing Size | 1-1/8" x 3/16" |
| Insert Color | Black |
| Fasteners | #6 x 3/4" Stainless Steel SMS |
| Fire Rated | Fire Rated |
| Insert Material | Neoprene |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
