National Guard Products 127N DKB Neoprene Sponge Perimeter Weatherstrip Head-and-Jamb Set – Dark Bronze

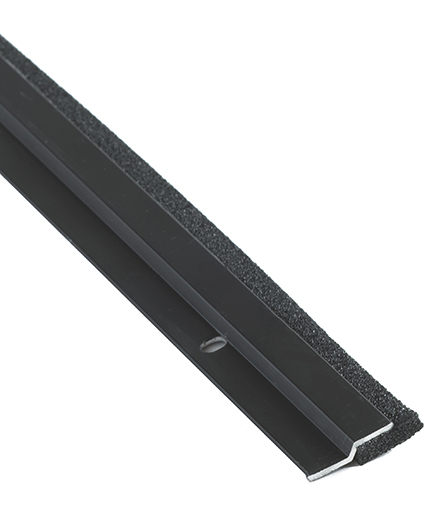

The National Guard Products (NGP) 127N DKB is a neoprene sponge perimeter weatherstrip head-and-jamb set finished in Dark Bronze aluminum with a black closed-cell EPDM neoprene sponge insert. Each set includes one head piece and two jamb pieces, screw-applied directly to the frame stop, and is available in five standard opening sizes: 3'0 x 7'0, 4'0 x 7'0, 6'0 x 7'0, 6'0 x 8'0, and 8'0 x 8'0. The 127N is engineered to deliver a tight perimeter seal for commercial and institutional door openings, carrying UL fire-door certifications for both standard and positive-pressure applications as well as ANSI/BHMA A156.22 certification — making it a compliant choice for hollow metal and wood fire-rated doors wherever code-mandated smoke, draft, and fire control gasketing is required. Because the 127N DKB is made to order, please allow 10–15 business days for production before shipment.
High-Performance Perimeter Weatherstrip Features
- Patent-Pending Microcellular EPDM Insert: The black neoprene sponge seal is formed from a synthetic EPDM rubber in a polypropylene thermoplastic matrix closed-cell advanced elastomeric foam — delivering consistent compression and recovery across the full door perimeter.
- Exceptional Memory and Tensile Strength: NGP rates the EPDM insert with very good abrasion resistance, tensile strength, and memory, helping the seal return to its original profile after repeated door cycles.
- Extreme Temperature Performance: The neoprene sponge insert is rated for a temperature range of -81°F to 275°F, making it suitable for cold-storage, industrial, and high-heat corridor applications.
- Flame- and Moisture-Resistant: The insert is inherently flame-resistant and moisture-resistant, supporting long-term performance in demanding commercial environments.
- Ozone, Sunlight, and Aging Resistance: Good resistance to ozone, UV exposure, and aging helps the seal maintain its profile and flexibility over the life of the door assembly.
- 6063-T5 Aluminum Alloy Carrier: The extruded aluminum retainer is produced from Alloy 6063, T5 temper — a commercial-grade extrusion alloy recognized for its smooth surface finish and corrosion resistance.
- Dark Bronze Finish: The aluminum carrier is finished in Dark Bronze (DKB), coordinating with the most common commercial door frame finishes specified in institutional and government projects.
- Slotted Screw Holes for Field Adjustment: Screw holes are slotted to allow on-site positioning of the weatherstrip for a precise, even compression across the door perimeter.
- Stainless Steel Screws Furnished: #6 x 3/4" stainless steel sheet metal screws are included, resisting corrosion at the fastener for the life of the installation.
- UL Fire-Door Certified — Standard and Positive Pressure: Certified by UL to CAN/ULC-S104 and ANSI/UL10B, and separately to ANSI/UL10C for positive-pressure applications, the 127N complies with NFPA 80 and NFPA 252 for hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes.
- UL Smoke and Draft Control — Category 'H': Certified by UL to ANSI/UL10C and ANSI/UL1784 Category H; complies with IBC and NFPA 105 for use on 'S'-labeled positive-pressure hollow metal fire doors up to 3 hours and wood fire doors up to 90 minutes.
- ANSI/BHMA A156.22 Certified: Certified gasketing complies with the American National Standard for Door Gasketing and Edge Sealing Systems and is listed in the BHMA Certified Products Directory.
- Head-and-Jamb Set Convenience: Sold as a complete set — one head piece and two jamb pieces — sized to the opening, reducing field measuring and cutting errors.
- Five Standard Opening Sizes Available: Offered for openings of 3'0 x 7'0, 4'0 x 7'0, 6'0 x 7'0, 6'0 x 8'0, and 8'0 x 8'0 to cover single and double-door commercial applications.
Technical Details
| Manufacturer | National Guard Products (NGP) |
| Model Number | 127N DKB |
| Product Type | Perimeter Weatherstrip Head-and-Jamb Set |
| Finish | Dark Bronze (DKB) |
| Carrier Material | Aluminum Alloy 6063, T5 Temper |
| Insert / Seal Material | Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix Closed-Cell Advanced Elastomeric Foam (Neoprene Sponge); Black in color |
| Insert Technology | Patent-Pending Microcellular EPDM |

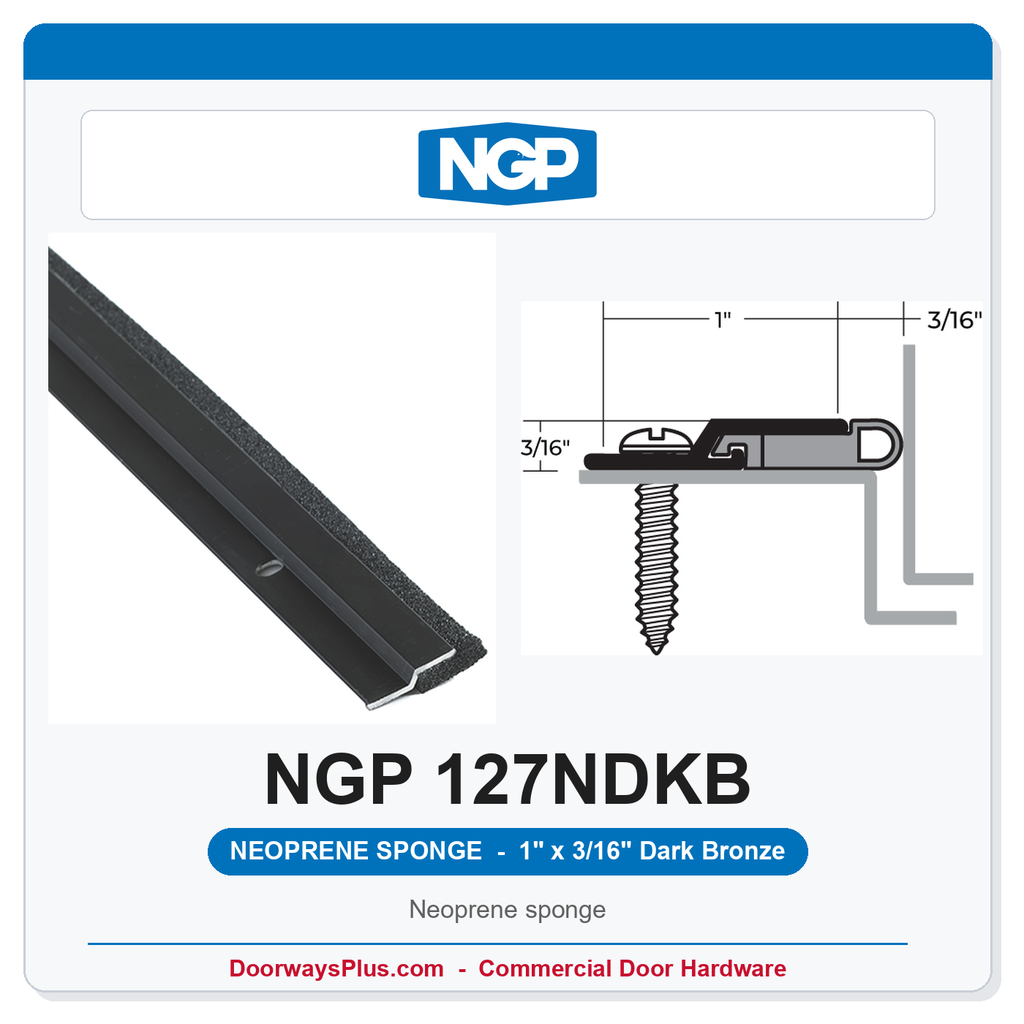

| Typical Profile Section | 1" x 3/16" |
| Temperature Range | -81°F to 275°F |
| Abrasion / Tensile / Memory Rating | Very Good |
| Flame Resistance | Flame-Resistant |
| Moisture Resistance | Moisture-Resistant |
| Ozone / UV / Aging Resistance | Good |
| Fasteners Furnished | #6 x 3/4" Stainless Steel Sheet Metal Screws |
| Screw Holes | Slotted for Adjustment |
| Application Method | Screw-Applied to Frame Stop |
| Kit Contents | 1 Head Piece + 2 Jamb Pieces (complete perimeter set) |
| Available Opening Sizes | 3'0 x 7'0 | 4'0 x 7'0 | 6'0 x 7'0 | 6'0 x 8'0 | 8'0 x 8'0 |
| Door Types (UL Certified) | Hollow Metal Fire Doors (up to 3-Hour Rating); Wood Fire Doors (up to 90-Minute Rating) |
| UL Certification — Standard | CAN/ULC-S104 and ANSI/UL10B; complies with NFPA 80 and NFPA 252 |
| UL Certification — Positive Pressure | ANSI/UL10C; complies with IBC, NFPA 80, and NFPA 252 |
| UL Smoke & Draft Control | ANSI/UL10C and ANSI/UL1784 Category 'H'; complies with IBC and NFPA 105 for 'S'-labeled Positive Pressure doors |
| BHMA Certification | ANSI/BHMA A156.22 — Door Gasketing and Edge Sealing Systems; listed in BHMA Certified Products Directory |
| Availability | Made to Order — 10–15 Business Day Production Lead Time |
Pro-Tip for Perimeter Sealing
The NGP 127N DKB is designed to be surface-applied directly to the frame stop on the push side of the door. Because the screw holes are slotted, installers can shift each piece slightly inward or outward before final tightening to achieve uniform neoprene compression across the head and both jambs. Use the furnished #6 x 3/4" stainless steel sheet metal screws to prevent fastener corrosion at the frame. For fire-rated openings, always confirm that the 127N is installed in accordance with the applicable UL listing and the Authority Having Jurisdiction (AHJ) requirements under NFPA 80.
| Gasketing Set Size | 3'0 x 7'0 Set or 4'0 x 7'0 Set or 6'0 x 7'0 Set or 6'0 x 8'0 Set or 8'0 x 8'0 Set |
| Brand | National Guard Products |
| Housing Finish | Dark Bronze |
| Smoke Rated | Smoke Rated |
| Weatherstripping Type | Perimeter Gasketing |
| Housing Size | 1" x 3/16" |
| Insert Color | Black |
| Fasteners | #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished |
| Fire Rated | Fire Rated |
| Insert Material | Neoprene |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
