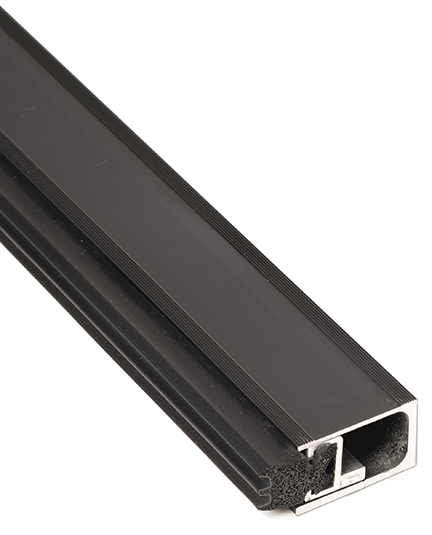

NGP 103NDKB Adjustable Neoprene Perimeter Weatherstrip | Dark Bronze

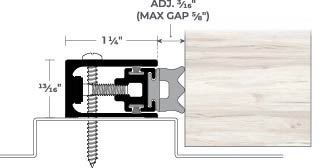

The National Guard Products 103NDKB is a commercial adjustable neoprene perimeter seal. NGP lists it as Dark Bronze Finish, Aluminum Adjustable Neoprene Perimeter Seal. Typical section is 1-1/4" x 13/16" (1/4" adj).
Sold as a head-and-jamb set (1 head + 2 jambs). Available openings: 3'0 x 7'0, 4'0 x 7'0, 6'0 x 7'0, 6'0 x 8'0, 8'0 x 8'0.
Product Features
- Aluminum Alloy 6063, T5 Temper
- Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix Closed Cell Advanced Elastomeric Foam
- Very Good Abrasion Resistance, Tensile Strength and Memory
- Flame-Resistant
- Moisture-Resistant
- Temperature Range -81F to 275F
- Good Resistance to Ozone, Sunlight and Aging
- Adjustment Screws on 10" Centers Allow Adjustment Without Re-Positioning Mounting Location
- #6 x 3/4" or #6 x 1-1/2" Stainless Steel SMS Furnished
- Neoprene is Black
- Dark Bronze
Standards
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- AIR INFILTRATION Recommended product for minimum Air Leakage and a tight seal around the perimeter of doors.
- SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category 'H'; complies with IBC and NFPA 105 for use on 'S' labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Technical Details
| Model | NGP 103NDKB |
| Type | Perimeter gasketing / weatherstrip set |
| Manufacturer | National Guard Products |
| Housing | Aluminum Alloy 6063, T5 Temper |
| Housing finish | Dark Bronze |
| Housing size | 1-1/4" x 13/16" (1/4" adj) |
| Insert | Neoprene |
| Insert color | Neoprene is Black |
| Temperature range | Temperature Range -81F to 275F |
| Mounting | Surface, screw applied |
| Certifications | UL10B / CAN/ULC-S104, UL10C positive pressure, UL1784 Category H smoke & draft |
| Available set sizes | 3'0 x 7'0, 4'0 x 7'0, 6'0 x 7'0, 6'0 x 8'0, 8'0 x 8'0 |
| Application | Head and jamb set (1 head + 2 jambs), screw applied to the frame stop. |
Ordering & Lead Time
Made to order (not stocked). Lead time: 10-15 business days.
| Gasketing Set Size | 3'0 x 7'0 Set or 4'0 x 7'0 Set or 6'0 x 7'0 Set or 6'0 x 8'0 Set or 8'0 x 8'0 Set |
| Brand | National Guard Products |
| Housing Finish | Dark Bronze |
| Smoke Rated | Smoke Rated |
| Weatherstripping Type | Perimeter Gasketing |
| Housing Size | 1-1/4" x 13/16" (1/4" adj) |
| Insert Color | Black |
| Fasteners | #6 x 3/4" Stainless Steel SMS |
| Fire Rated | Fire Rated |
| Insert Material | Neoprene |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
