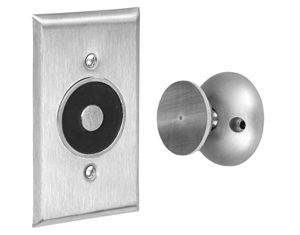

ABH 2400 Flush Wall-Mounted Magnetic Door Release - US28 Aluminum

The ABH 2400 is a high-efficiency, flush-mounted electromagnetic door holder designed for fire and smoke barrier doors. It provides an exceptionally clean architectural appearance by sitting nearly flush against the wall surface. This essential life-safety device holds doors open during normal operation and automatically releases them upon a signal from the fire alarm system or a remote switch. Engineered with a field-selectable Tri-Voltage circuit, the ABH 2400 is the professional choice for modern hospitals, schools, and commercial corridors.

Key Features & Benefits

• Ultra-Slim Flush Design: Offers a minimal total projection of only 1-7/8". For applications requiring a bit more reach, every unit includes a complimentary 1" extension to achieve a 2-7/8" projection.
• Universal Tri-Voltage Compatibility: The special electrical circuit is field-selectable for 12V DC, 24V AC/DC, or 120V AC, ensuring it works with virtually any building’s power requirements.
• Self-Aligning Armature: The armature features a double swivel and pivoting ball design that compensates for up to 1/4" of centerline misalignment, guaranteeing a secure magnetic lock even if the door is not perfectly plumb.
• Superior Security: The armature is thru-bolted for maximum durability in high-traffic areas. Optional extensions are available for unlimited projections to meet unique site conditions.
• Certified Safety: Fully UL and ULC listed, California State Fire Marshall listed, and NYC MEA approved. Meets or exceeds all ANSI/BHMA 156.15 standards.
• Efficient Installation: Features a quick-insert connector for fast wiring and a low-current design to save on energy and reduce heat.

Why Choose the ABH 2400 for Your Project?

The ABH 2400 provides the perfect balance of aesthetics and performance. Its low-profile design reduces the chance of equipment or carts striking the magnet in busy hallways. Because this item ships direct from the ABH factory near Chicago, you can rely on a fast 3-day lead time to keep your project moving.

Custom Finishes: The standard finish is US28 Aluminum. We also offer Spray Aluminum, Brass, Bronze, Dark Bronze, or a premium US32D Stainless Steel faceplate. [Request a Quote] for custom finishes or specialized armature extensions today.
