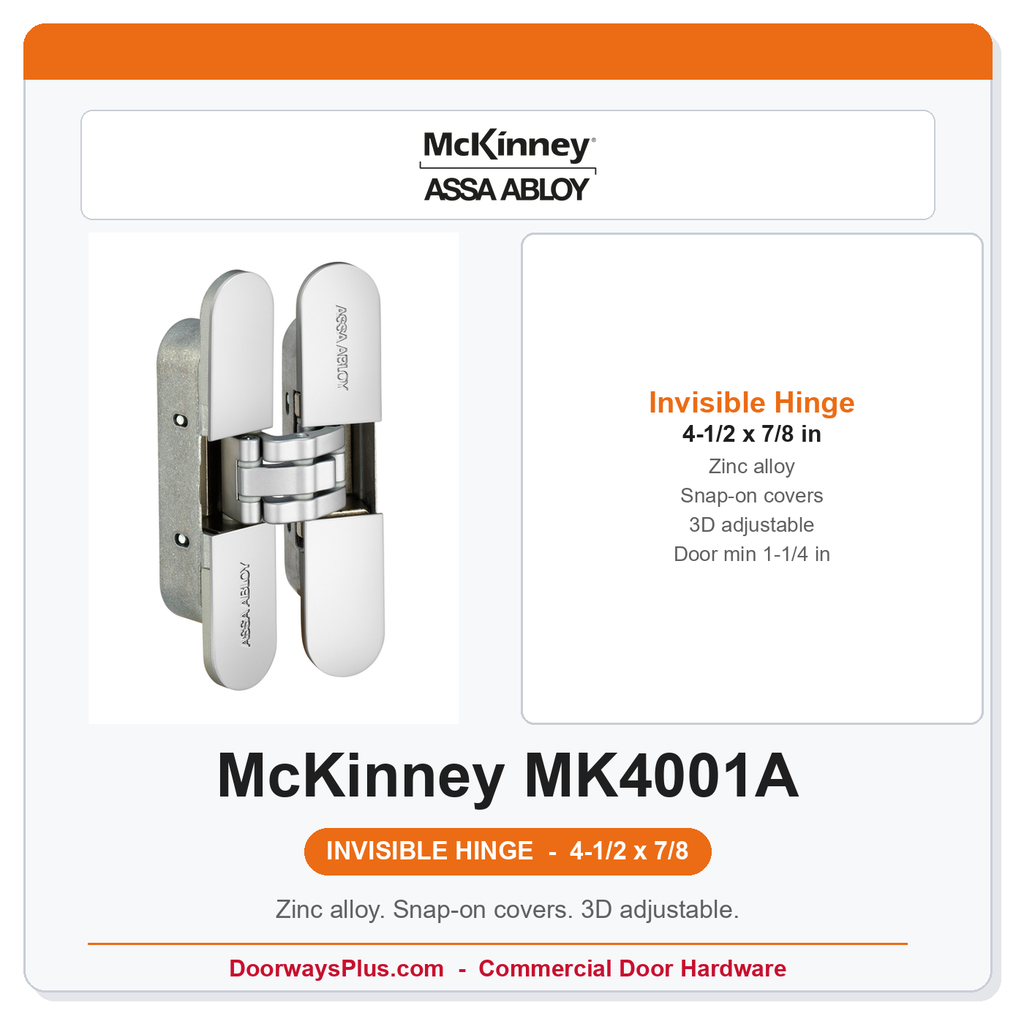

McKinney MK4001A 4-1/2 x 7/8 Steel Concealed Hinge | Invisible Full Mortise, 3D Adjustable
Institutional Grade Features & Benefits
- Concealed when closed. Full mortise invisible hinge. Zinc alloy. Non-handed. 180 degree opening.
- Snap-on covers. The covers conceal the screws.
- 3-dimensional adjustability. Vertical +/- 1.5 mm, horizontal +/- 1.5 mm, depth +/- 1 mm.
- Door thickness minimum. 1-1/4 in.
- Size. 4.53 in x 0.91 in on the cut sheet, sold as 4-1/2 x 7/8 in.
- Openings. Wood or hollow metal doors with wood or metal frames.
Technical Details
| Manufacturer | McKinney |
|---|---|
| Model | MK4001A |
| Material | Zinc alloy |
| Size | 4-1/2 x 7/8 in (cut sheet 4.53 in x 0.91 in) |
| Covers | Snap-on |
| Handing | Non-handed |
| Opening angle | 180 degrees |
| Adjustment | Vertical +/- 1.5 mm, horizontal +/- 1.5 mm, depth +/- 1 mm |
| Door thickness minimum | 1-1/4 in |
| Capacity at 36 in door | 130 lbs (2 hinges), 146 lbs (3), 156 lbs (4) |
| Lead time | 2-3 business days |
| General - US Finishes | 626 - Satin Chrome or Matte Black |
| Brand | McKinney |
| Hinge Type | Invisible |
| Base Material | Steel |
