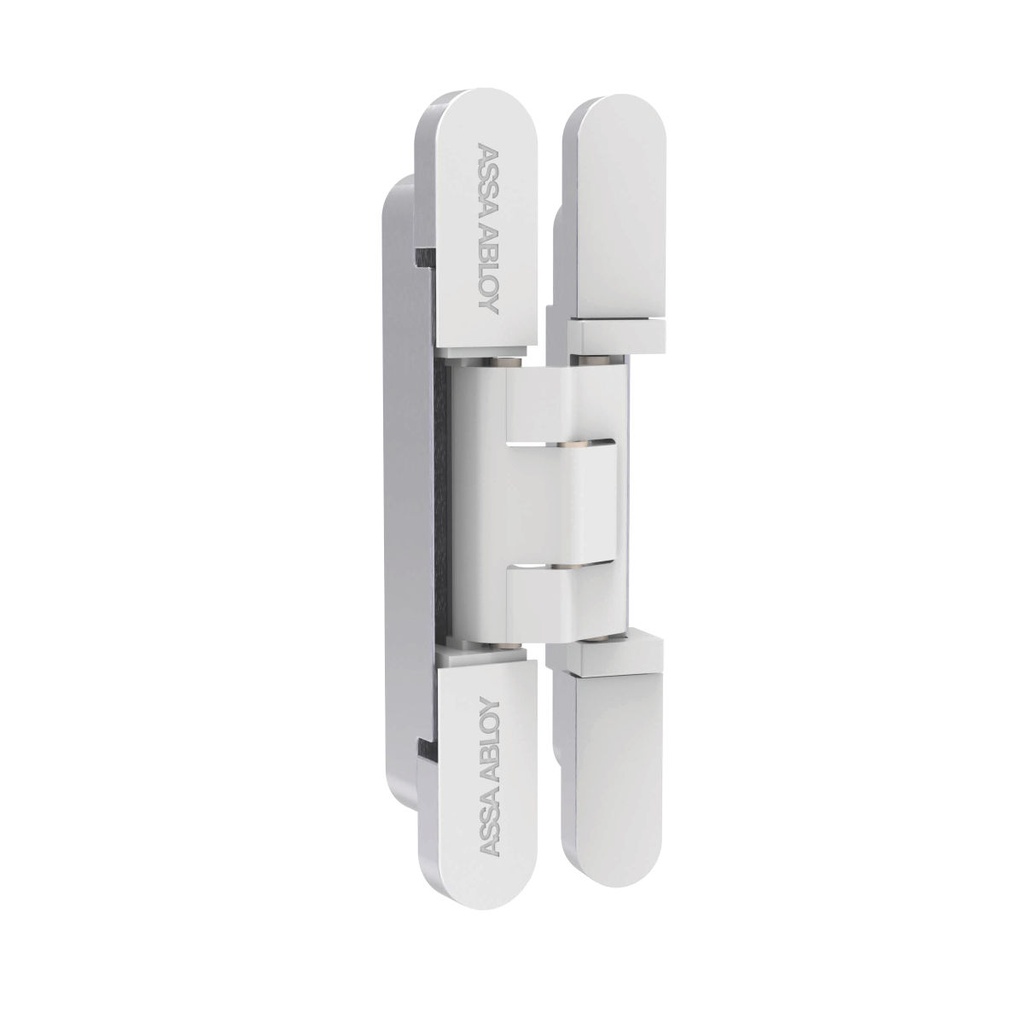

McKinney MK1821A 6.10 in x 0.70 in Steel Concealed Invisible Full Mortise Hinge
Institutional Grade Features & Benefits
- Concealed when closed. Full mortise invisible hinge. Zinc alloy. Non-handed. 180 degree opening.
- Size. 155 mm (6.10 in) long; door-side width 18 mm (0.70 in); frame-side width 21 mm (0.83 in).
- Door thickness minimum. 1 in per the factory cut sheet.
- 3-dimensional adjustability. Vertical +/- 3 mm, Horizontal +/- 1.5 mm, Depth +/- 3 mm.
Technical Details
| Manufacturer | McKinney |
|---|---|
| Model | MK1821A 6.10" x 0.70" |
| Product class | Concealed / invisible full mortise hinge |
| Material | Zinc alloy |
| Size | 155 mm (6.10 in) long; door-side width 18 mm (0.70 in); frame-side width 21 mm (0.83 in) |
| Handing | Non-handed |
| Opening angle | 180 degrees |
| Lead time | 2-4 weeks (factory order) |
| Door thickness minimum | 1 in |
| Adjustment | Vertical +/- 3 mm, Horizontal +/- 1.5 mm, Depth +/- 3 mm |

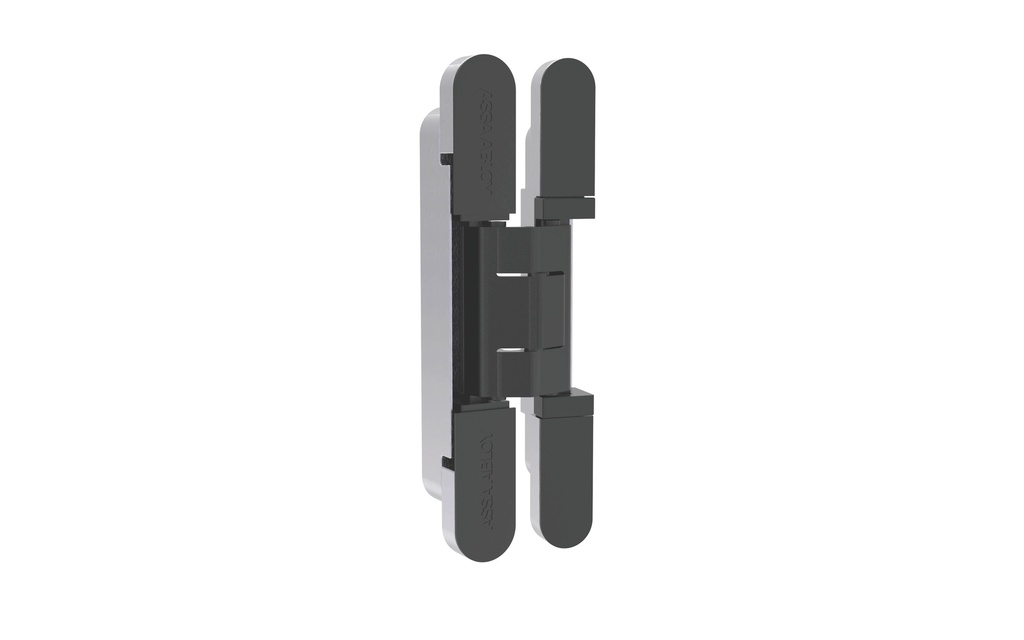

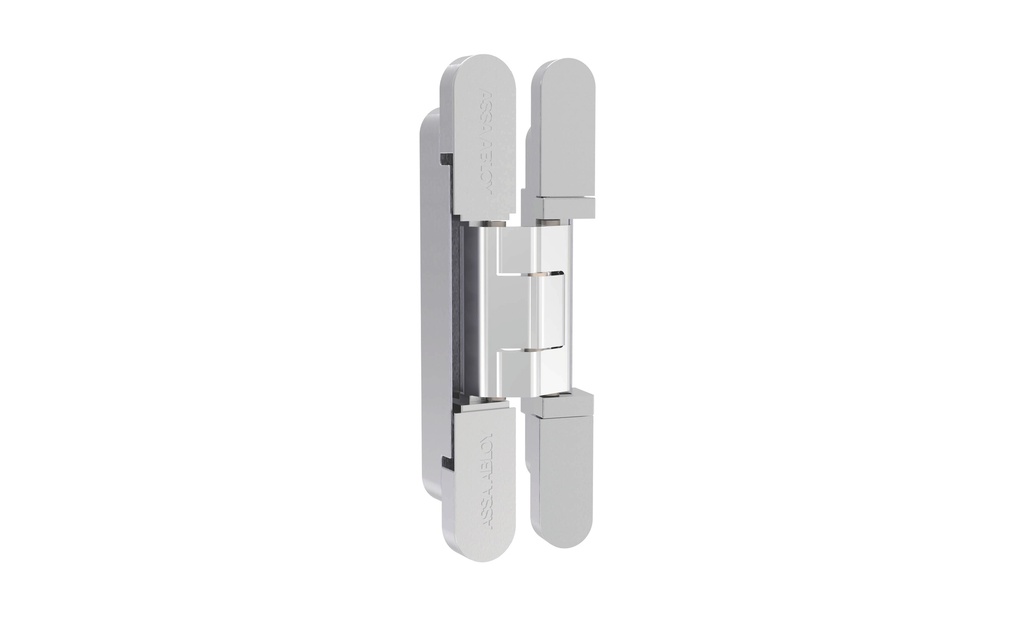

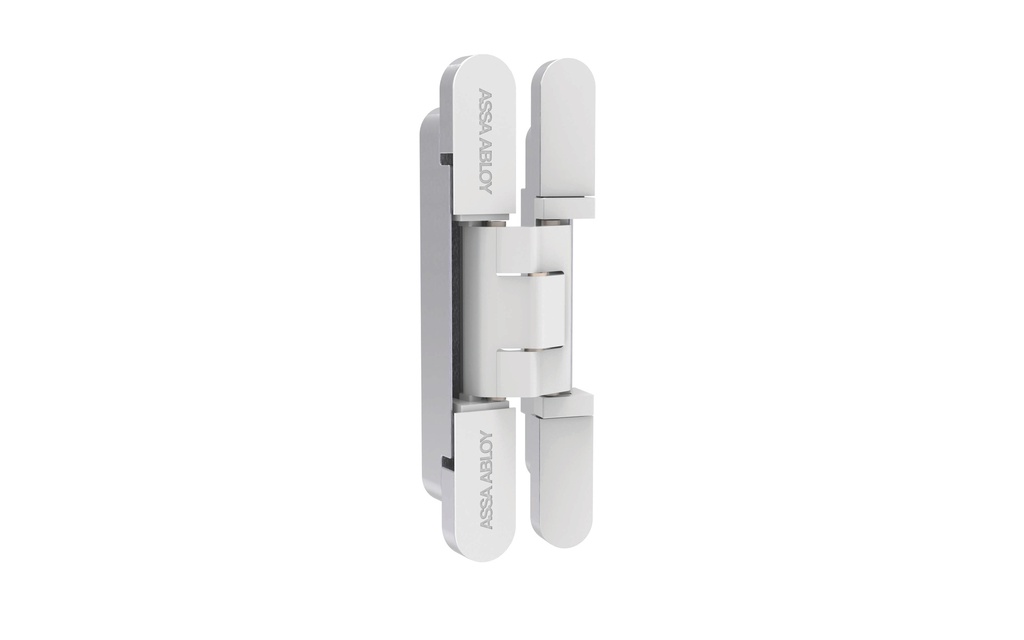

| General - US Finishes | 626 - Satin Chrome or Matte Black or Matte White |
| Brand | McKinney |
| Hinge Type | Invisible |
| Base Material | Steel |
