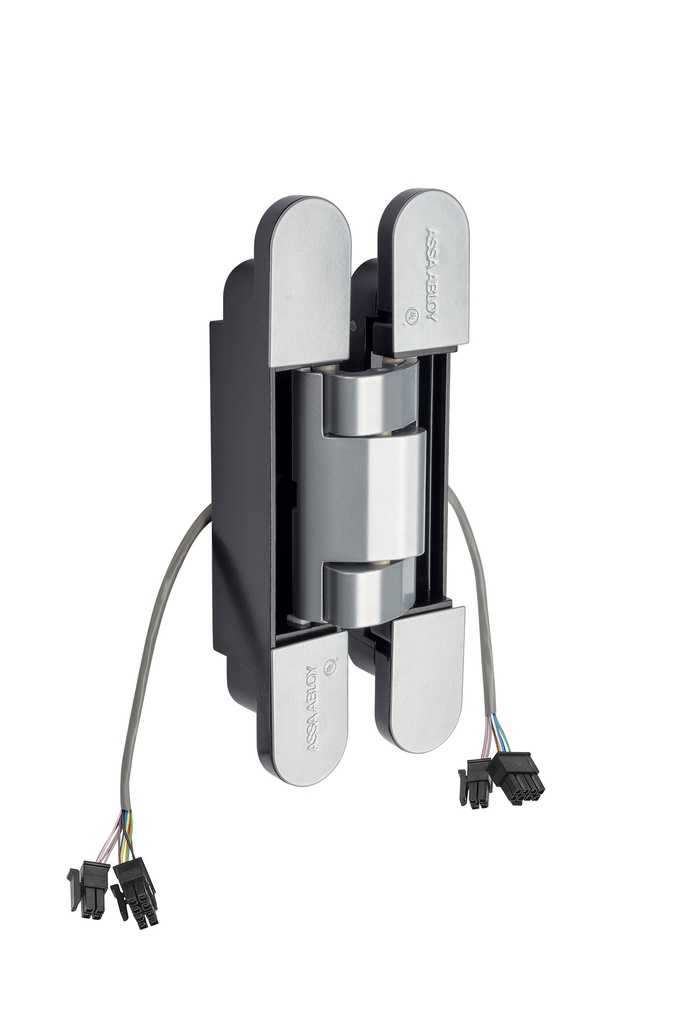

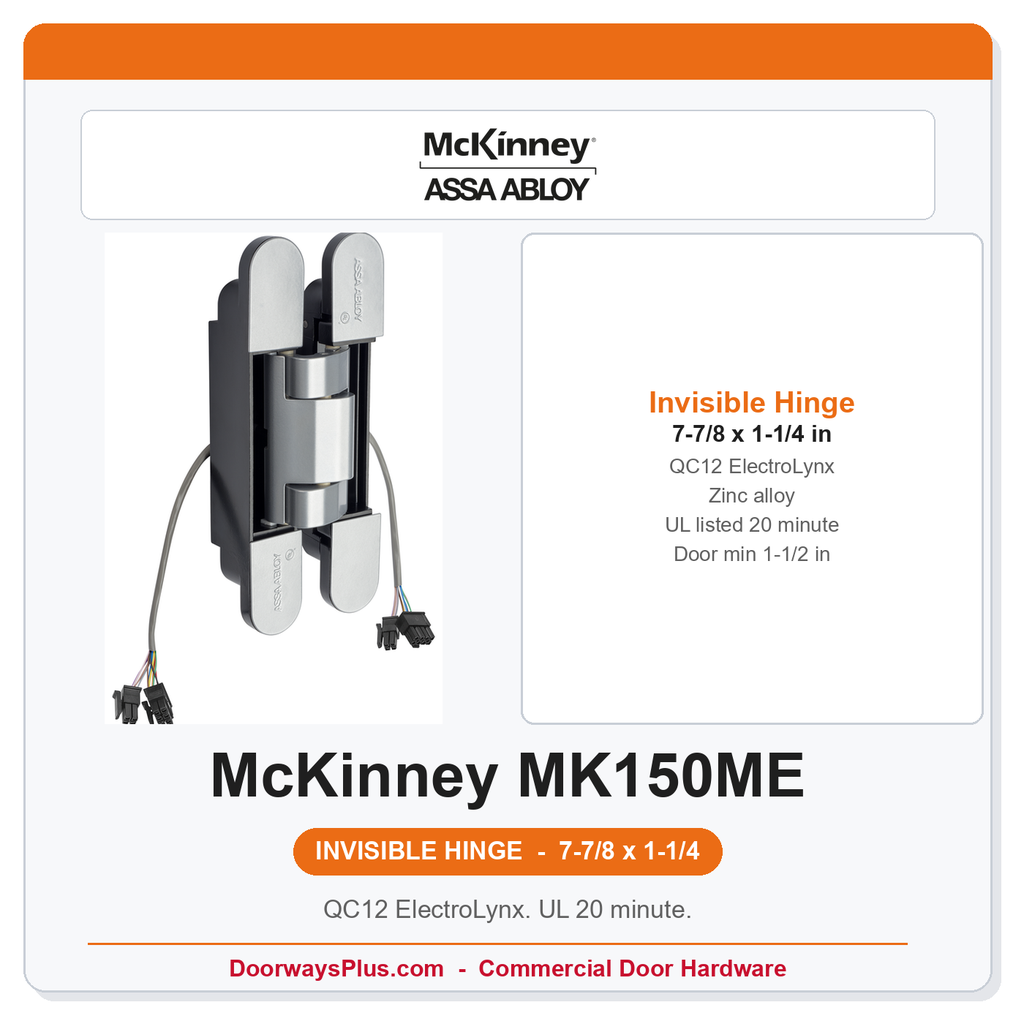

McKinney MK150ME QC12 7-7/8 in x 1-1/4 in Electrified Concealed Invisible Full Mortise Hinge
Institutional Grade Features & Benefits
- Concealed when closed. Full mortise invisible hinge. Zinc alloy. Non-handed. 180 degree opening.
- Size. 200 mm (7.87 in) long x 32 mm (1.26 in) wide.
- Door thickness minimum. 1-1/2 in per the factory cut sheet.
- 3-dimensional adjustability. Vertical +/- 3 mm, Horizontal +/- 3 mm, Depth +/- 1 mm.

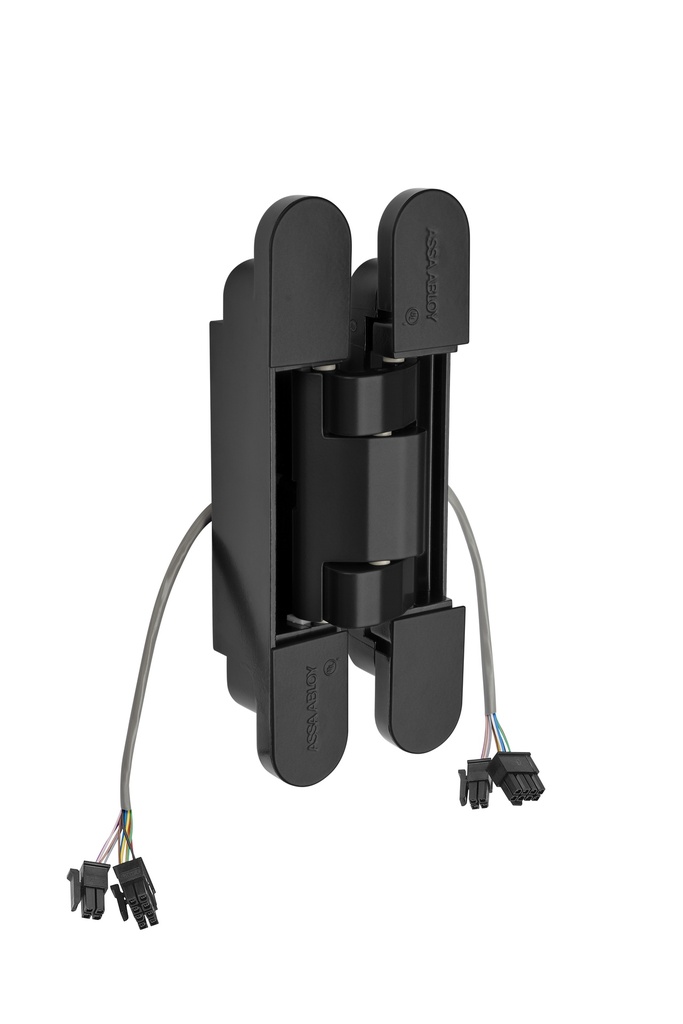

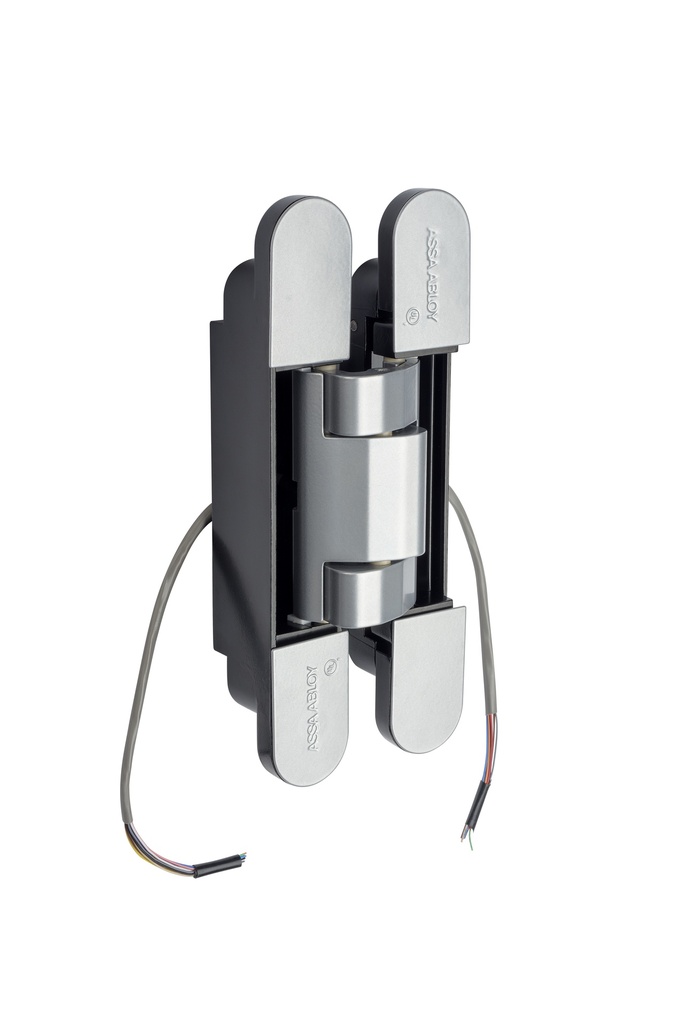

- QC12 ElectroLynx. 12-wire Quick Connect is included in the listed price. Plug-and-play with ASSA ABLOY ElectroLynx products (Sargent hardware, Securitron electrical accessories, McKinney hinges). Snip the connectors if flying leads are required.
- Listing. UL Listed 20-minute for hollow metal, steel covered composite, and wood core fire doors.
Technical Details
| Manufacturer | McKinney |
|---|---|
| Model | MK150ME 7-7/8" x 1-1/4" |
| Product class | Concealed / invisible full mortise hinge |
| Material | Zinc alloy |
| Size | 200 mm (7.87 in) long x 32 mm (1.26 in) wide |
| Handing | Non-handed |
| Opening angle | 180 degrees |
| Lead time | 2-4 weeks (factory order) |
| Door thickness minimum | 1-1/2 in |
| Electric | QC12 ElectroLynx (12 wire) included in base |
| Adjustment | Vertical +/- 3 mm, Horizontal +/- 3 mm, Depth +/- 1 mm |

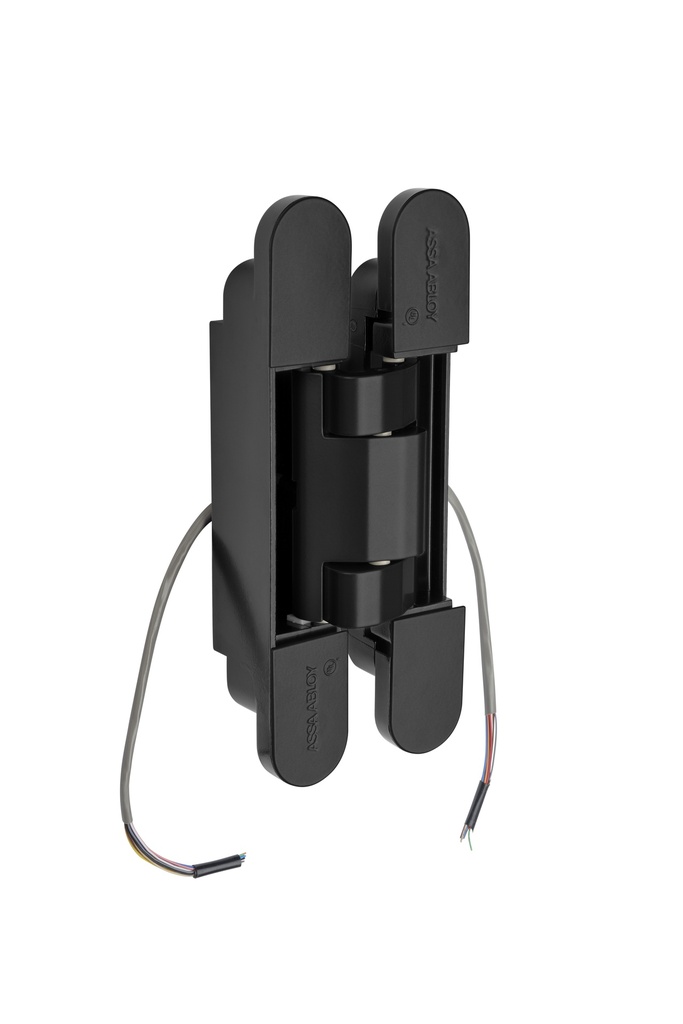

| General - US Finishes | 626 - Satin Chrome or Matte Black |
| Brand | McKinney |
| Hinge Type | Invisible, Electric Hinge |
| Electric Hinge Options | QC12 - Electrolynx, 12 Wire, Power Transfer |
| Base Material | Steel |
