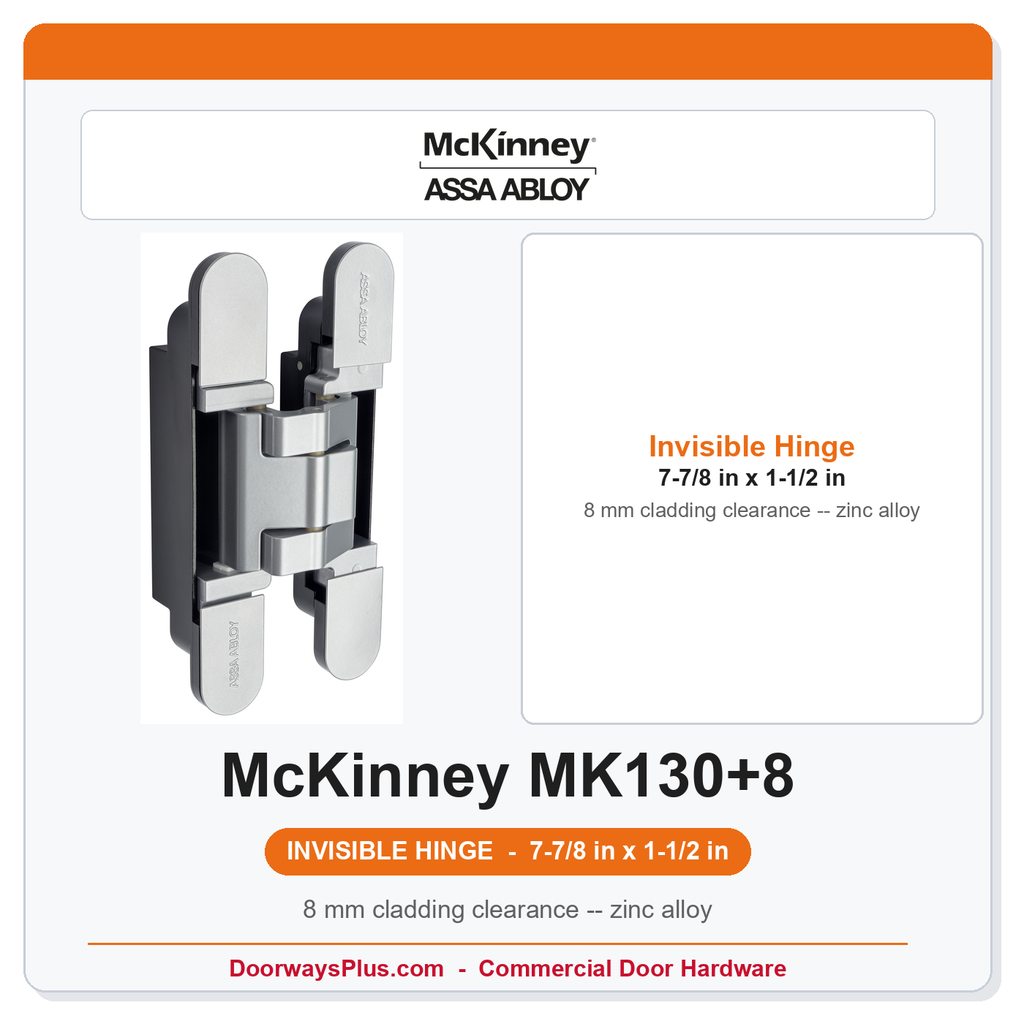

McKinney MK130+8 7-7/8 in x 1-1/2 in Steel Concealed Invisible Full Mortise Hinge
Institutional Grade Features & Benefits
- Concealed when closed. Full mortise invisible hinge. Zinc alloy. Non-handed. 180 degree opening.
- Size. 200 mm (7.87 in) long x 37 mm (1.46 in) wide; clears cladding up to 8 mm (1/3 in).
- Door thickness minimum. 1-3/4 in per the factory cut sheet.
- 3-dimensional adjustability. Vertical +/- 3 mm, Horizontal +/- 3 mm, Depth +/- 1 mm.
Technical Details
| Manufacturer | McKinney |
|---|---|
| Model | MK130+8 7-7/8" x 1-1/2" |
| Product class | Concealed / invisible full mortise hinge |
| Material | Zinc alloy |
| Size | 200 mm (7.87 in) long x 37 mm (1.46 in) wide; clears cladding up to 8 mm (1/3 in) |
| Handing | Non-handed |
| Opening angle | 180 degrees |
| Lead time | 2-4 weeks (factory order) |
| Door thickness minimum | 1-3/4 in |
| Adjustment | Vertical +/- 3 mm, Horizontal +/- 3 mm, Depth +/- 1 mm |

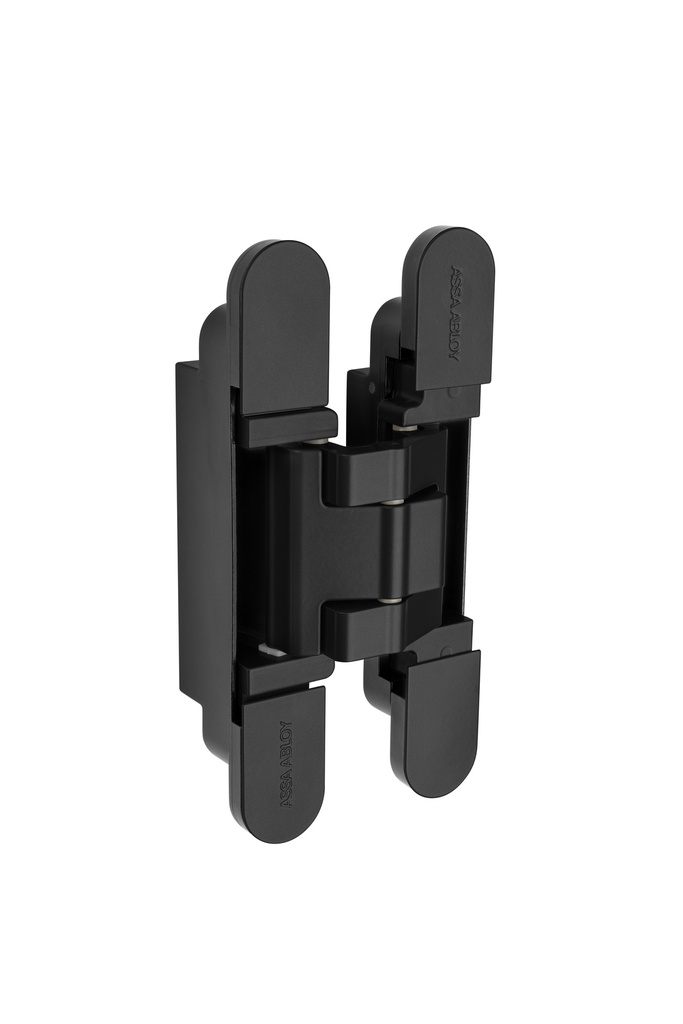

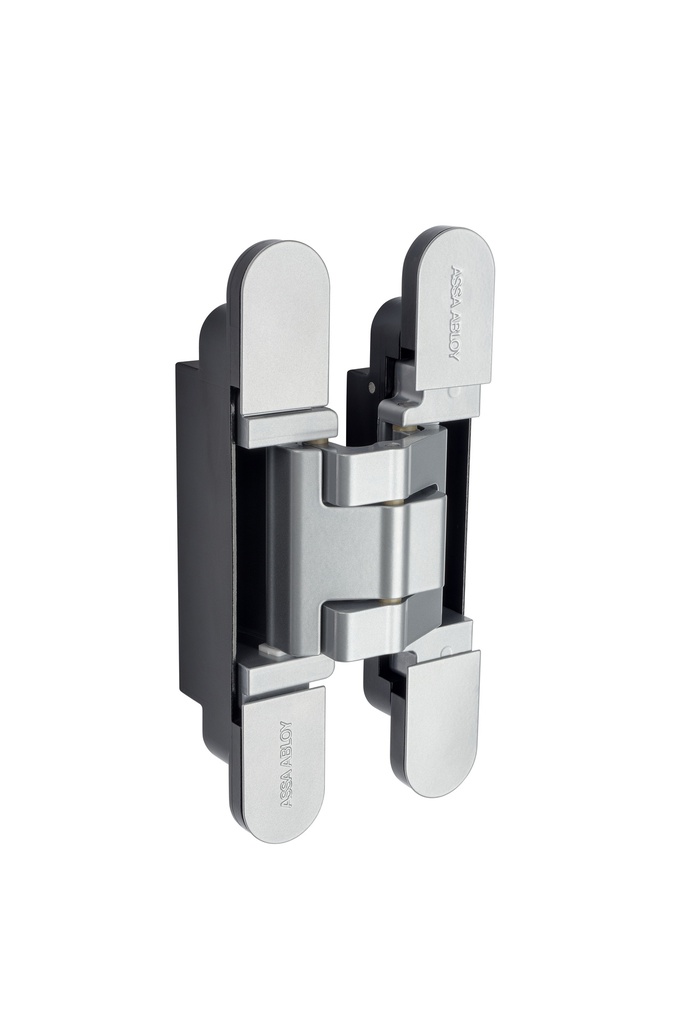

| General - US Finishes | 626 - Satin Chrome or Matte Black |
| Brand | McKinney |
| Hinge Type | Invisible |
| Base Material | Steel |
