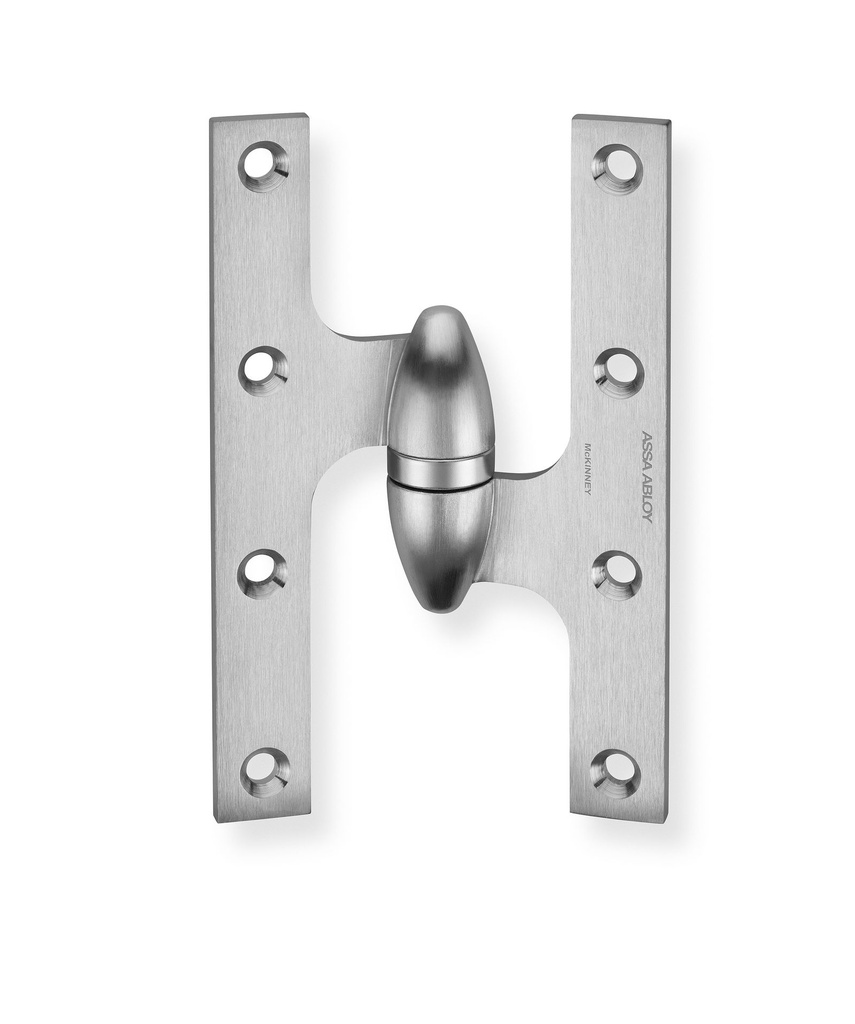

McKinney TA3383 6-Inch Standard Weight Olive Knuckle Full Mortise Hinge
The McKinney TA3383 is a 6-inch standard weight, full mortise, olive knuckle hinge — also referred to as a paumelle-style hinge — engineered for door openings where a refined, slim decorative barrel profile is specified in place of a conventional cylindrical knuckle. McKinney is a trusted architectural hardware brand with a long legacy of producing commercial-grade hinges, and the TA3383 upholds that reputation with a single, distinctive olive-shaped knuckle that delivers a clean, low-profile aesthetic without sacrificing structural performance. As a full mortise hinge, both leaves are fully recessed into routed mortises in the door edge and frame face, producing a flush, tight fit that is the standard for professional architectural door installations.
Institutional Grade Features & Benefits
- Olive Knuckle (Paumelle-Style) Design: The single olive-shaped knuckle provides a sleek, architecturally refined silhouette — the preferred choice when specifications call for a decorative barrel hinge that minimizes visual bulk on the door edge.
- Full Mortise Construction: Both hinge leaves are fully recessed into the door and frame, creating a flush, professional finish that is standard in commercial and institutional architectural hardware specifications.
- 6-Inch Leaf Height: The 6-inch size accommodates heavy, tall door panels — particularly those requiring a larger bearing surface for proper load distribution and long-term performance.
- Standard Weight Classification: Sized and gauged as a standard weight hinge, appropriate for doors meeting standard-weight application requirements across a broad range of commercial door configurations.
- McKinney Brand Reliability: Manufactured by McKinney, a brand synonymous with precision-engineered architectural hinges used in commercial, institutional, and high-end residential projects.
- Architectural Specification-Ready: The TA3383 is designed to satisfy architectural specifications that call for olive knuckle or paumelle-style full mortise hinges, making it a direct fit for projects where design intent and door hardware schedules must be matched precisely.
Technical Details
| Feature | Details |
|---|---|
| Brand | McKinney |
| Model / Part Number | TA3383 |
| Part Type | Hinge |
| Hinge Style | Olive Knuckle (Paumelle-Style) |
| Mounting Type | Full Mortise |
| Leaf Height | 6 Inch |
| Weight Class | Standard Weight |
| Knuckle Configuration | Single Olive-Shaped Knuckle |
Applications & Specification Guidance
The McKinney TA3383 full mortise olive knuckle hinge is the correct selection when architectural door hardware schedules specify a paumelle hinge, olive knuckle hinge, or decorative barrel full mortise hinge in a 6-inch standard weight configuration. This hinge is commonly specified on wood or metal doors in commercial, institutional, government, hospitality, and upscale architectural projects where both function and refined aesthetics are required. When replacing existing olive knuckle hinges or matching a hardware schedule that calls for the McKinney TA3383 by name, this part provides a direct, specification-compliant solution.
Documentation
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US10B - Oil Rubbed Bronze or US14 - Polished Nickel |
| Door Handing | LH or RH |
| Brand | McKinney |
| Hinge Type | Olive Knuckle |
| Hinge Mounting | Full Mortise |
| Hinge Height | 6.0" Hi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Base Material | Steel |
| Part Type | Hinge, Hinge |
