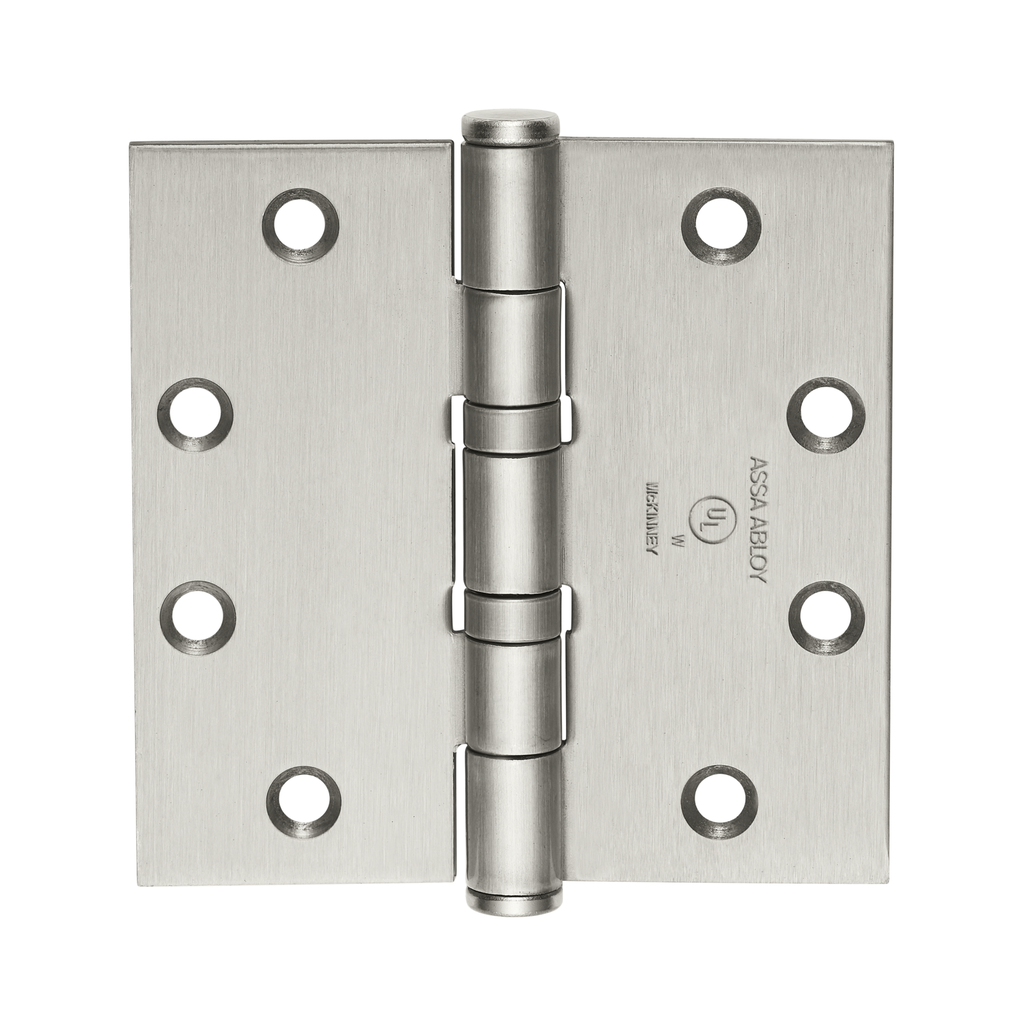

McKinney TA2314 Architectural Hinge | 4.5" x 4.5" Non-Ferrous Ball Bearing, Brass or Stainless Steel
The McKinney TA2314 NRP is a high-performance standard weight architectural hinge specifically engineered for average traffic and medium-frequency commercial applications. This 5-knuckle, full mortise hinge is a premier solution for door restoration on wood or metal doors, featuring a precision .134 gauge thickness that meets the highest industry benchmarks. Built with a non-ferrous base, it offers exceptional resilience and is a reliable choice for institutional facilities, hospitals, and office buildings.
Advanced Oil Impregnated Bearings (TA Prefix)
Equipped with McKinney's signature TA Prefix technology, this hinge features self-lubricating, one-piece bearings for maintenance-free operation.
- Superior Durability: The non-ferrous bearings provide a smoother, silent door swing while offering high resistance to clogging and corrosion.
- Long-Lasting Wear: Engineered to prevent common hinge failure, acting as a permanent solution for door edge reinforcement in environments with constant operation.
- Medium-Frequency Optimized: Perfectly balanced for doors with closing devices that undergo consistent daily use.
Life Safety & Technical Specifications
- Brand: McKinney (ASSA ABLOY)
- Model: TA2314
- Dimensions: 4.5" x 4.5" (Standard Weight .134 Thickness)
- Base Material: Non-ferrous (Brass or Stainless Steel)
- UL 3-Hour Fire Rating: IMPORTANT: Only the US32D Satin Stainless Steel finish is certified for use on fire-rated door assemblies (3-hour). Brass based materials are not approved for fire doors.
- ANSI/BHMA Standards: Complies with ANSI A2112 (Brass) or ANSI A5112 (Stainless Steel).
- Included Fasteners: Furnished with all Wood Screws (1-1/4" x 12 FPHW) and all Machine Screws (1/2" x 12-24 FPHM).
Why Choose the McKinney TA2314?
For projects requiring professional-grade security and longevity, the McKinney TA2314 is the definitive choice. Whether you are performing a solution for door surface repair or outfitting a new commercial office, self-lubricating bearings ensures your openings remain functional and safe for decades.
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or BSP - Black Suede Power Coat or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze or US10B (SS) - Oil Rub Bronze on Stainless Steel or US10BE (SS) - Oil Rub Bronze Equal on Stainless Steel or US32 - Polished Stainless Steel |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Brass, Stainless Steel |
| Hinge Corners | Square |
