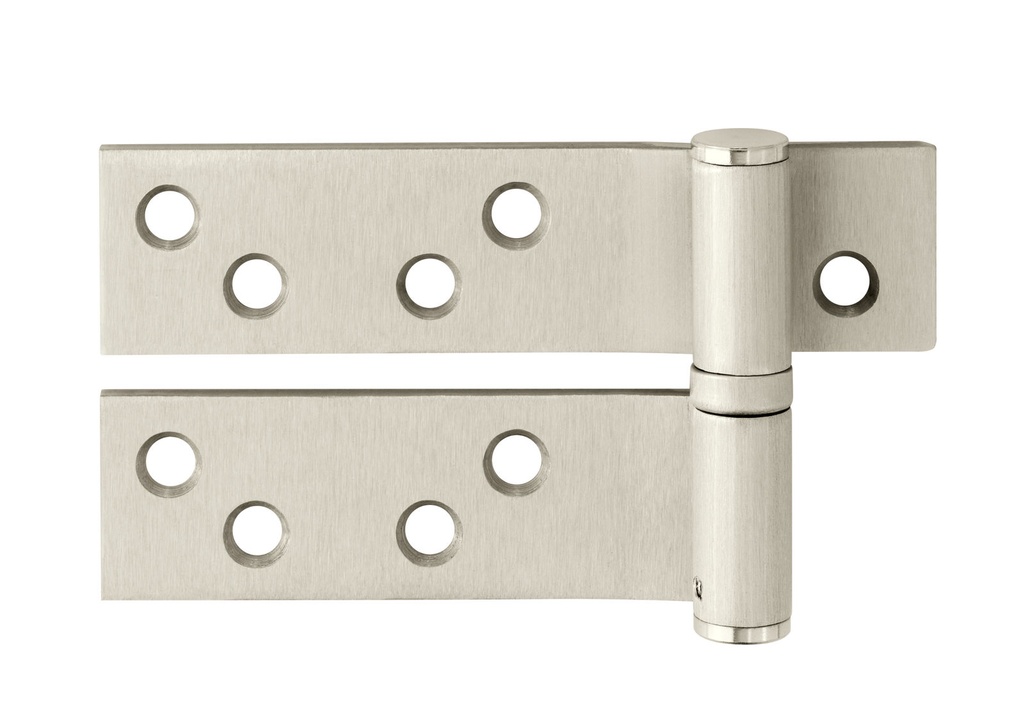

McKinney 8540 Heavy Weight Reinforcing Pivot — 4 Inch | Satin Nickel (US15)
The McKinney 8540 is a 4-inch heavy weight reinforcing pivot engineered for use with pivot-hung doors on high-frequency openings. This pivot carries and reinforces the load at the top or intermediate pivot point, providing structural support where standard pivots may be insufficient. Finished in US15 Satin Nickel, the McKinney 8540 combines durability with a refined architectural appearance suited to demanding commercial and institutional door applications.
Institutional Grade Features & Benefits
- Heavy Weight Load Capacity: Specifically designed to carry and reinforce the load on pivot-hung doors, making it well-suited for high-traffic and high-cycle openings where ordinary pivots would be inadequate.
- Top or Intermediate Pivot Position: Versatile mounting configuration allows installation at the top pivot point or at an intermediate pivot point along the door stile, accommodating a variety of pivot-hung door setups.
- Reinforcing Function: Acts as a reinforcing pivot to distribute and manage the mechanical stresses inherent in heavy-duty pivot-hung door systems, helping to maintain proper door alignment over time.
- High-Frequency Opening Performance: Engineered with the demands of busy commercial openings in mind, supporting reliable operation under sustained, repetitive use cycles.
- Satin Nickel Finish (US15): The US15 Satin Nickel finish delivers a clean, contemporary aesthetic that coordinates with a wide range of architectural hardware finishes in commercial and institutional environments.
- McKinney Quality Construction: Manufactured by McKinney, a trusted name in commercial door hardware, ensuring consistent dimensional accuracy and long-term mechanical integrity.
Technical Details
| Feature | Details |
|---|---|
| Brand | McKinney |
| Part Number | 8540 |
| Part Type | Heavy Weight Reinforcing Pivot |
| Size | 4 Inch |
| Finish | US15 Satin Nickel |
| Pivot Position | Top or Intermediate Pivot Point |
| Application | Pivot-hung doors on high-frequency openings |
| Function | Carries and reinforces load at pivot point |
Documentation
| Door Handing | LH or RH |
| Brand | McKinney |
| General - US Finishes | US15 - Satin Nickel |
| Hinge Height | 4.0" Hi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Base Material | Steel |
| Part Type | Hinge |
