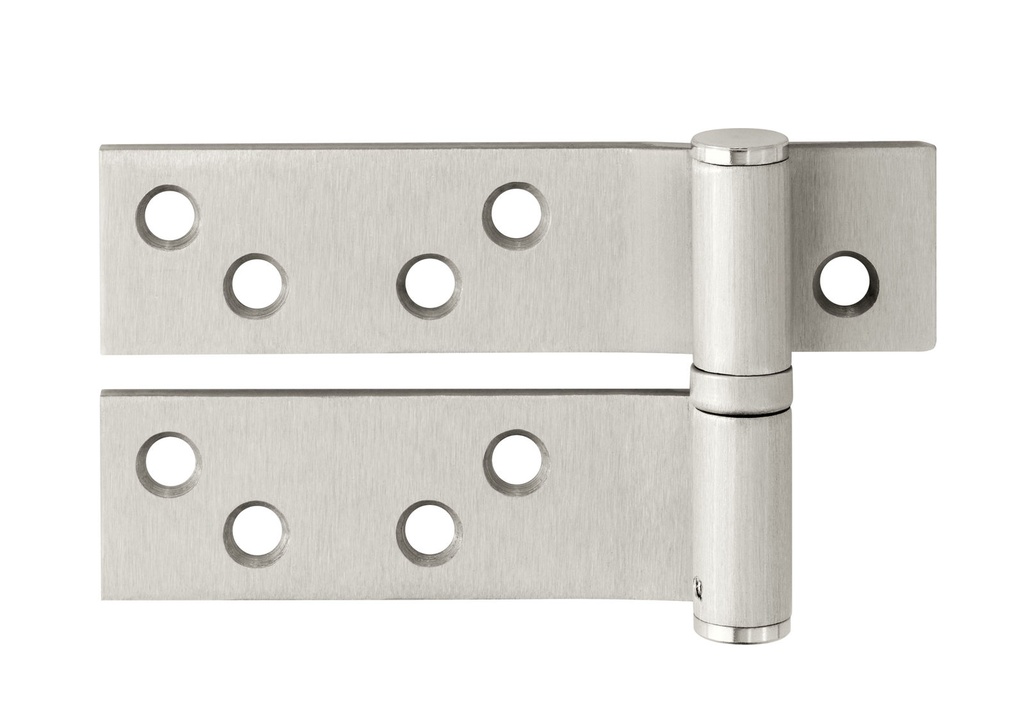

McKinney 5545 Heavy Weight Reinforcing Pivot | 4-1/2 Inch | Stainless Steel
The McKinney 5545 is a 4-1/2 inch heavy weight reinforcing pivot engineered for use with pivot-hung doors operating under demanding, high-frequency conditions. Designed to carry and reinforce the load at the top or intermediate pivot point, this pivot is the right choice when a pivot-hung opening requires additional structural support to maintain long-term performance and alignment. Finished in stainless steel, the 5545 combines durability with a clean, professional appearance suited to institutional and commercial environments.
Institutional Grade Features & Benefits
- Heavy Weight Construction: Built to carry and reinforce substantial door loads at the top or intermediate pivot location, making it ideal for high-traffic and high-frequency pivot-hung openings.
- Top or Intermediate Pivot Application: Versatile placement options allow the 5545 to be used at either the top pivot point or an intermediate pivot point depending on the door configuration and load requirements.
- Stainless Steel Finish: Corrosion-resistant stainless steel construction provides lasting durability and a consistent aesthetic in demanding commercial and institutional settings.
- Pivot-Hung Door Compatibility: Specifically designed for pivot-hung door systems, ensuring proper load distribution and reinforcement where standard hinges are not used.
- High-Frequency Performance: Engineered to withstand the rigors of openings that experience repeated, heavy use cycles without compromising structural integrity.
- McKinney Quality: Manufactured by McKinney, a trusted name in architectural hardware known for precision-engineered hinges and pivots for commercial and institutional door openings.
Technical Specifications
- Reinforcement Role: Carries and reinforces the load at the top or intermediate pivot point on pivot-hung doors operating in high-frequency environments.
- Size: 4-1/2 inches
- Material/Finish: Stainless Steel
- Door Type: Pivot-hung doors
- Pivot Position: Top pivot or intermediate pivot
Technical Details
| Feature | Details |
|---|---|
| Brand | McKinney |
| Model / Part Number | 5545 |
| Part Type | Heavy Weight Reinforcing Pivot |
| Size | 4-1/2 Inch |
| Finish / Material | Stainless Steel |
| Compatible Door Type | Pivot-Hung Doors |
| Pivot Position | Top or Intermediate Pivot Point |
| Application | High-Frequency Openings |
Documentation
| Door Handing | LH or RH |
| Brand | McKinney |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Hinge Height | 4.5" Hi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Base Material | Stainless Steel |
| Part Type | Hinge |
