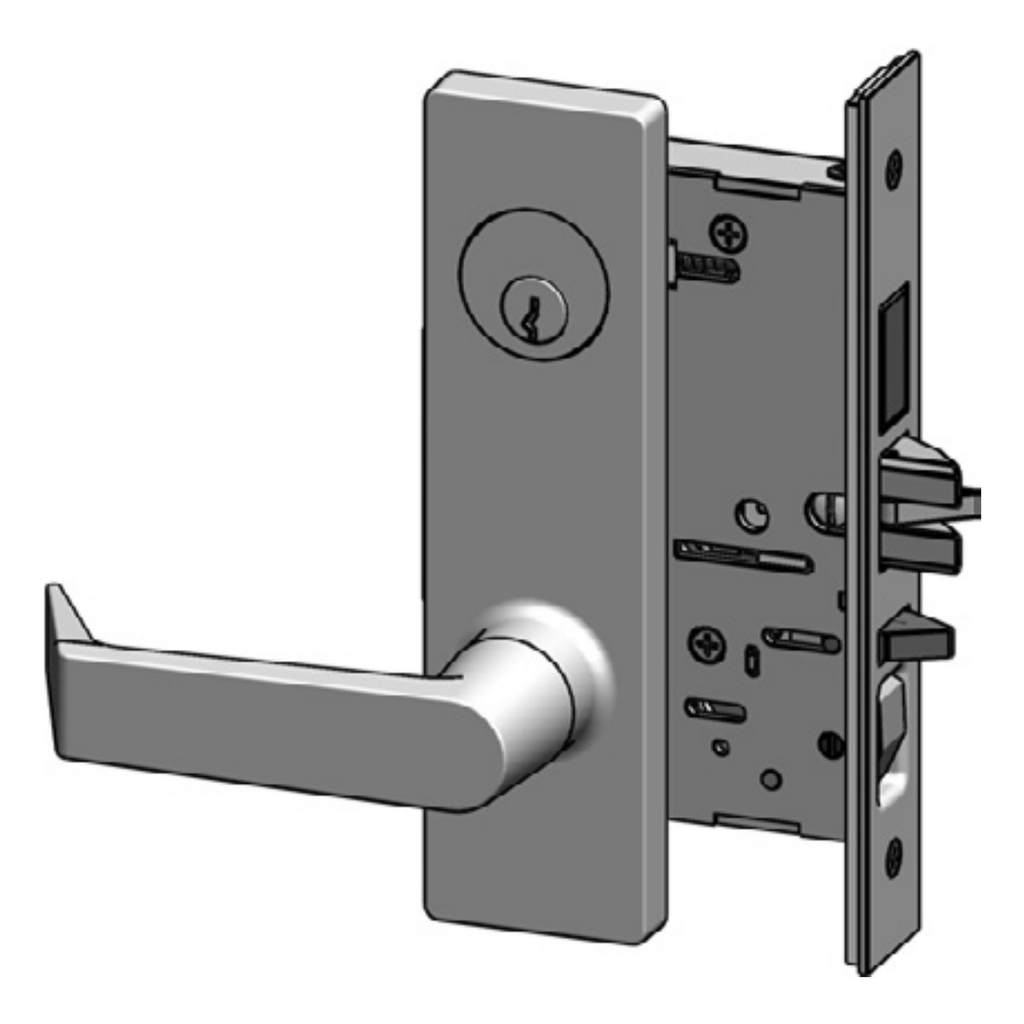

PDQ MR215 PFEF Single Cylinder Deadbolt with Dummy Trim - Grade 1
The PDQ MR215 PHL (often ordered as PFEF for the Philadelphia lever on a forged F-Series escutcheon) is a mortise deadbolt with fixed (dummy) lever trim for the PDQ MR Series. The lever is non-operating -- it does not retract a latch; security is provided by a mortise deadbolt. A key on the outside extends and retracts the deadbolt; rotating the inside lever retracts the deadbolt for egress.
The Philadelphia (PHL) lever is solid forged brass with a clean, architectural aesthetic in a US26D Satin Chrome finish. Its "return-to-door" design is ADA compliant.
Function: Single Cylinder Deadbolt with Dummy Trim (no ANSI code)
The Single Cylinder Deadbolt with Dummy Trim controls a mortise deadbolt by key from the outside, with the fixed lever providing pull-side trim and inside-lever egress:
- Key outside extends/retracts deadbolt.
- Rigid outside lever.
- Rotating inside lever retracts deadbolt.
Technical Specifications
| Feature | Details |
| Model | PDQ MR215 PHL (F-Series Escutcheon) |
| Function | Single Cylinder Deadbolt with Dummy Trim (no ANSI code) |
| Deadbolt | 1" Throw Investment Cast Stainless Steel |
| Lever Trim | Fixed / Dummy (non-latching); inside lever rotates to retract the deadbolt |
| Cylinder | Schlage C (SCC) compatible |
| Lever Style | Philadelphia (PHL) - Forged Brass Base |
| Finish | US26D (626) Satin Chrome |
| Handing | Non-handed |
| Warranty | Limited Lifetime (MR Series) |
Why the PDQ MR Series
- Deadbolt Security with Dummy Trim: a 1-inch mortise deadbolt paired with fixed lever trim -- ideal where a deadbolt is required but a latching lever is not.
- Simplified Key Management: provided with a Schlage C (SCC) compatible cylinder; supports Interchangeable Core (IC) options for rapid re-keying.
- ADA-Compliant Lever: the "return-to-door" lever design meets accessibility requirements.
| Brand | PDQ |
| Finish with BHMA code | 626 - US26D Satin Chrome |
| ANSI Mortise Lock Function | Deadbolt with Dummy Trim |
| Trim Design | PFEF |
| Series | PDQ - MR Series |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
| Standard Cylinders and Keyways | Schlage C Keyway |
