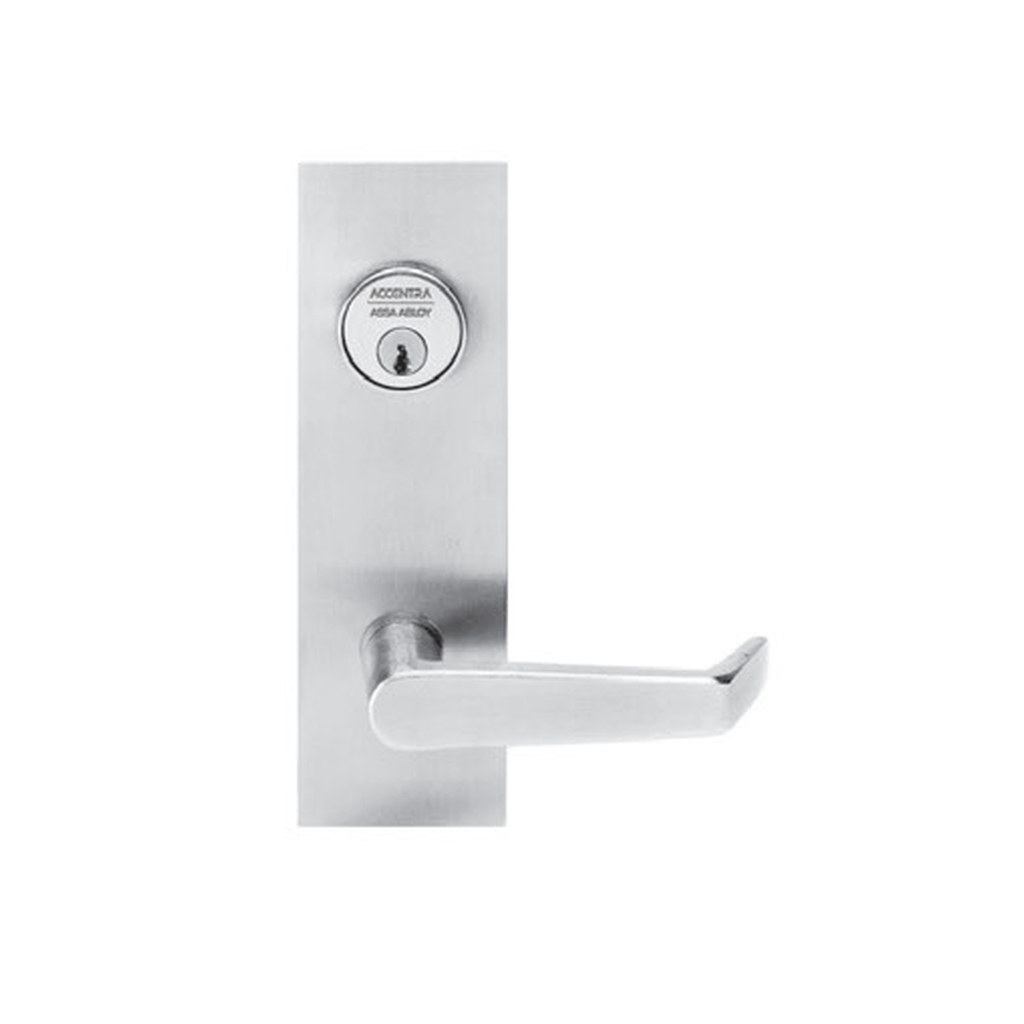

Accentra ARSL SL8802FL Privacy, Bedroom Or Bath Lock Mortise Latchset – Grade 1 Durability

Function Info: Latchbolt retracted by knob/lever either side. Deadbolt operated by thumbturn inside. When the deadbolt is projected, outside knob/lever is automatically locked. Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever. In emergency, deadbolt may be unlocked from outside by E203 emergency key, supplied.

The Accentra ARSL SL8802FL (formerly Yale SL8800 Series) is the heavy-duty security version of the 8800 Privacy, Bedroom Or Bath Lock Function mortise latchset, built for openings where heavy abuse or vandalism is a concern. It is certified to ANSI/BHMA A156.13 Series 1000, Operational Grade 1, and the SL8800 with its security escutcheon also meets Security Grade 1. It carries the Arcadia (ARSL) lever on the SL security escutcheon.

Built for openings that are opened and closed thousands of times a year, it uses a wrought steel, zinc dichromate plated case, 3/8" solid steel (heat treated) hubs and a 3/4" throw stainless steel anti-friction latchbolt. Supplied in 630 Satin Stainless Steel, the Arcadia lever is handed -- give the hand when ordering -- and it ships with the door prep and installation drawings for the trim shown.

The SL security escutcheon is what sets this lock apart: heavy duty escutcheon trim that is flat against the door to resist damage and vandalism; lever attached directly to escutcheon for added security; thrubolted security head screws offer added protection. The SL8800 is furnished in 630 Satin Stainless Steel only; levers are Nickel Plated to match Stainless Steel.

Function Details: Privacy, Bedroom Or Bath Lock (ANSI/BHMA F19)

• Lever Works the Latch from Either Side: Latchbolt retracted by knob/lever either side — either lever retracts the latchbolt, with no key needed to do it.
• Deadbolt Turned by Hand Inside: Deadbolt operated by thumbturn inside — the deadbolt is thrown and withdrawn by hand from the inside, with no key needed on that side.
• Projecting the Deadbolt Locks the Outside Lever: When the deadbolt is projected, outside knob/lever is automatically locked — with the deadbolt thrown the outside lever is locked, so a single action secures both the bolt and the trim.
• Life-Safety Free Egress -- and the Outside Trim Unlocks With It: Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever. — one motion of the inside lever pulls both bolts together, and that same motion also unlocks the outside lever, so the opening does not re-secure itself behind whoever left.
• Emergency Key Included: In emergency, deadbolt may be unlocked from outside by E203 emergency key, supplied — the override key comes with the lock rather than being ordered separately, so the opening is not left waiting on a part to be usable in an emergency.

Key Performance Features

• ANSI/BHMA Grade 1 Certified: Independently tested to the highest operational and security grade the standard defines, for long service life in demanding commercial and institutional openings.
• 3-Hour Fire Rating: UL and cUL listed for use on fire-rated door assemblies, so the opening stays code compliant.
• Accessible Operation: The lever is operable without tight grasping, pinching or wrist twisting, which is what ADA 404.2.7 requires of an accessible opening.
• Handed Lever -- Specify the Hand: This lever design is made to a hand, so give the hand on the order; the lock body itself is field reversible.
• Anti-Friction Latchbolt: A stainless steel one-piece latch that closes quietly and resists the drag that wears a latch out on a high-traffic door.
• Heavy-Duty Hubs: Heat-treated solid steel through the point that takes every turn of the lever, which is where a lighter lock fails first.
• Mechanical Warranty: Backed for the long term against defects in the mechanical lock.
