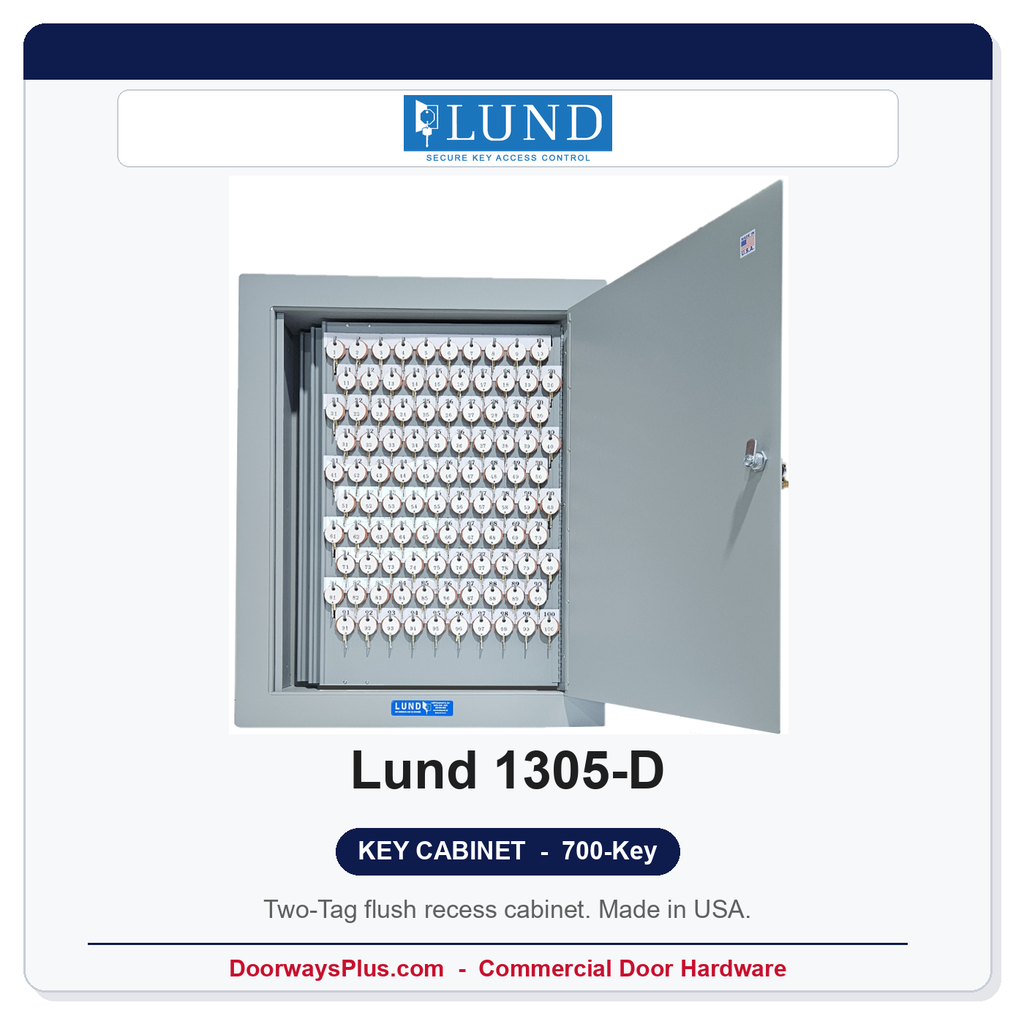

Lund 1305-D Flush Recess Key Cabinet — 700-Key Two-Tag | Made in USA
*** Lead Time: 2-4 Weeks ***

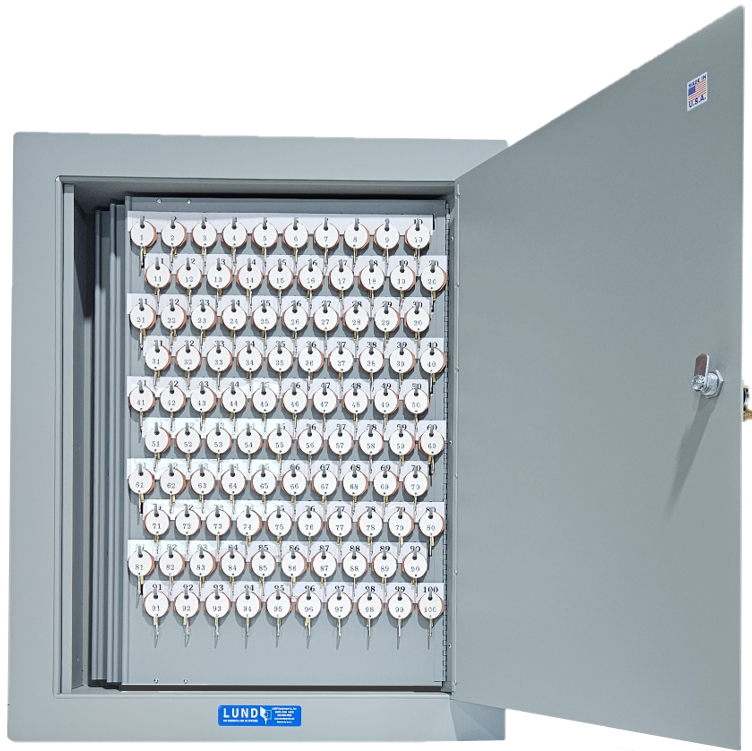

The Lund 1305-D is a commercial-grade, flush-recess key cabinet engineered for high-capacity key control in demanding institutional and facility environments. Designed to recess fully into a standard wall opening, the 1305-D presents a clean, flush front profile once installed — making it the correct choice wherever a surface-mount cabinet would be obtrusive or impractical. With a 700-key, two-tag capacity, this is the maximum configuration available for the 1305-D cabinet body; no further expansion is possible. Proudly Made in USA, the 1305-D is built to Lund's rigorous construction standards with heavy-gauge steel throughout.
Key Features & Benefits
- True Flush-Recess Design: Installs into a standard wall opening measuring 20-1/2 x 25 x 5-1/4 inches, sitting flush with the wall surface for a professional, unobtrusive appearance.
- Finishing Molding: A 2-1/4 inch finishing molding projects just 1/4 inch past the wall surface, providing a finished edge that covers rough wall margins cleanly.
- Maximum 700-Key Capacity: Accommodates up to 700 keys on a two-tag system — the full expansion ceiling for this cabinet body. No additional capacity upgrades are available for this unit.
- Two-Tag Key System: The dual-tag configuration supports two identification tags per key hook, enabling more detailed key tracking and labeling for complex facilities.
- Heavy-Gauge Steel Construction: Cabinet body is fabricated from 18-gauge steel; the flange and door are a reinforced 11-gauge steel for superior rigidity and tamper resistance at the most-handled surfaces.
- Made in USA: Manufactured domestically to consistent quality standards expected in commercial and institutional procurement specifications.
- Indoor Use: Rated for interior installations only. Not fireproof; not waterproof. Specify accordingly for code-sensitive applications.
Typical Applications
- Schools, universities, and campus facilities requiring high-volume key management
- Hospitals and healthcare campuses with multiple departments and access points
- Government buildings and municipal facilities
- Hotels and multi-unit residential properties
- Corporate campuses, data centers, and security offices
- Any facility requiring a flush, built-in key cabinet aesthetic with maximum capacity
Technical Details
| Feature | Details |
|---|---|
| Manufacturer | Lund |
| Model Number | 1305-D |
| Mount Type | Flush Recess (wall-recessed) |
| Key Capacity | 700 keys (maximum; no expansion available) |
| Tag System | Two-Tag |
| Wall Opening Required | 20-1/2 in. W x 25 in. H x 5-1/4 in. D |
| Front Profile | Flush front; finishing molding 2-1/4 in., projects 1/4 in. past wall |
| Cabinet Gauge | 18-gauge steel body |
| Flange & Door Gauge | 11-gauge steel |
| Location Rating | Indoor use only |
| Fire Rating | Not fireproof |
| Weather Resistance | Not waterproof |
| Origin | Made in USA |
Returns and Warranty
This Lund key cabinet is not a stock item you can send back. Lund Equipment Company does not accept a return shipment without written permission. Report damage or a shortage within 15 days. An order already in manufacture cannot be cancelled unless Lund is reimbursed for work completed and for special materials already ordered. Lund refund policy: https://lundkey.com/policies/refund-policy
Lund warrants each key cabinet against defects in material and workmanship for one year from the date Lund ships it. Key cabinets are for indoor use and are not fireproof or waterproof. Lund will repair or replace a part it examines and finds defective. Lund does not pay return freight, installation, or other expenses. The warranty does not cover misuse, negligence, accident, misapplication, modification, repair by an unauthorized person, improper installation, or normal wear. It applies to products purchased from Lund or from a Lund-approved distributor.
| Brand | Lund |
| Key Capacity | 700 Keys |
| Key Tag System | Two Tag Key System |
| Cabinet Type | Key Cabinet |
| Cabinet Expansion | No |
| Cabinet Mounting | Flush Recess |
