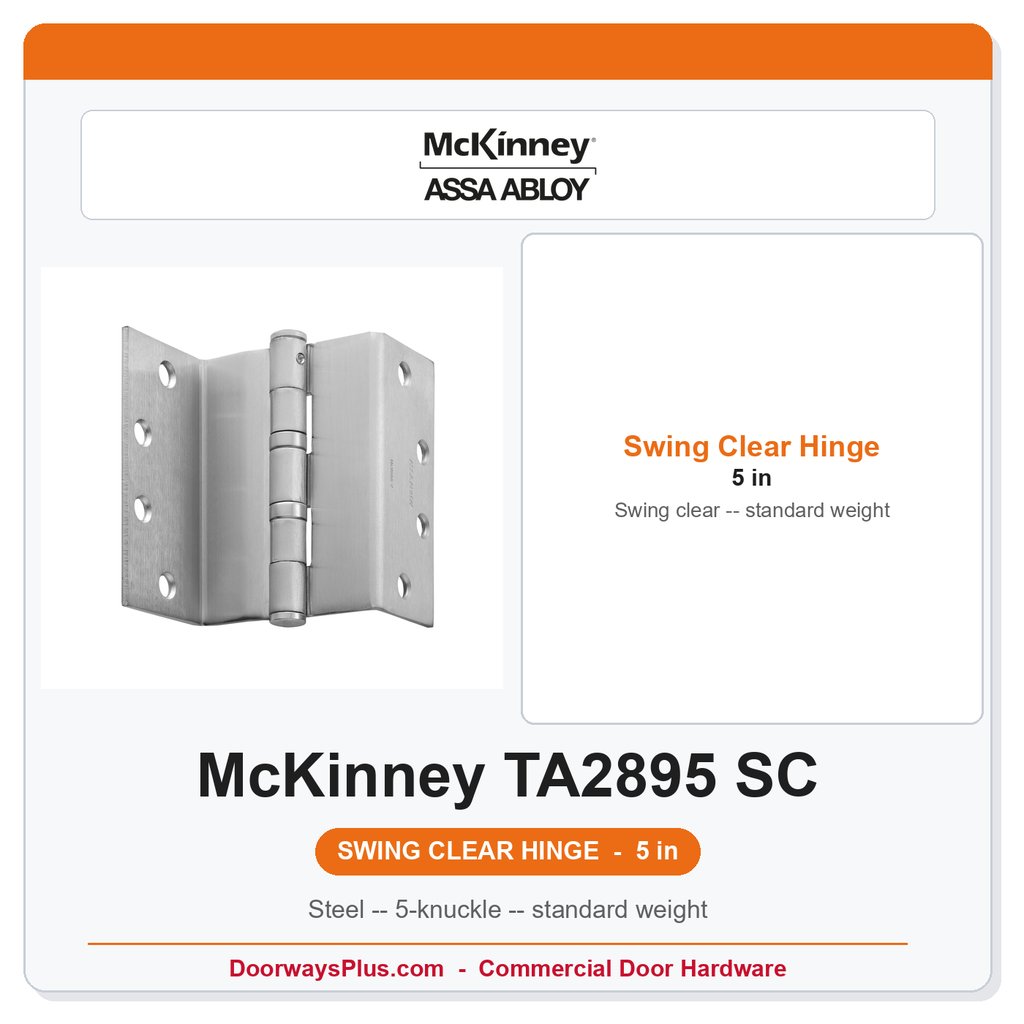

McKinney TA2895 5 Swing Clear Standard Weight Hinge
Institutional Grade Features & Benefits
- Swing clear. Five-knuckle full mortise standard-weight hinge. The barrel and door edge move out of the opening so beds and carts can pass. Meets ADA / ANSI A117.1-1986 per catalog FM-14.
- Size. 5 in (127 mm). Gauge 0.146 in. Per catalog FM-14.
- Material. Steel. Square corner. Standard weight. ANSI A8122 per catalog FM-14.
- Listing. NFPA 80 fire-rated openings per catalog FM-14. Reversible: the pin is held by an NRP set screw.
- Fasteners. 8 holes. Machine 1/2 in x #12-24. Wood 1-1/2 in x #12. Per catalog FM-14.
- Factory options (not priced here). TB ball bearing. Hospital tip. Electric options are not available on the 5 in size (catalog FM-14).
- Mill template. McKinney TA2895/TA2395 5 in mill template AADSS1253271 from the TA2395/TA2895 product page.
- Companion. Stainless TA2395 is the non-ferrous sister series. Heavy-weight T4A3795/T4A3395 is the next class up.
Technical Details
| Manufacturer | McKinney |
|---|---|
| Model | TA2895 5" |
| Product class | Swing clear full mortise standard-weight hinge |
| Material | Steel |
| Size | 5 in (127 mm) (catalog FM-14) |
| Gauge | 0.146 in (catalog FM-14) |
| Corners | Square |
| Machine screws | 1/2 in x #12-24 |
| Wood screws | 1-1/2 in x #12 |
| Listing | NFPA 80 UL; ANSI A8122 |
| Lead time | 2-4 weeks (factory order) |

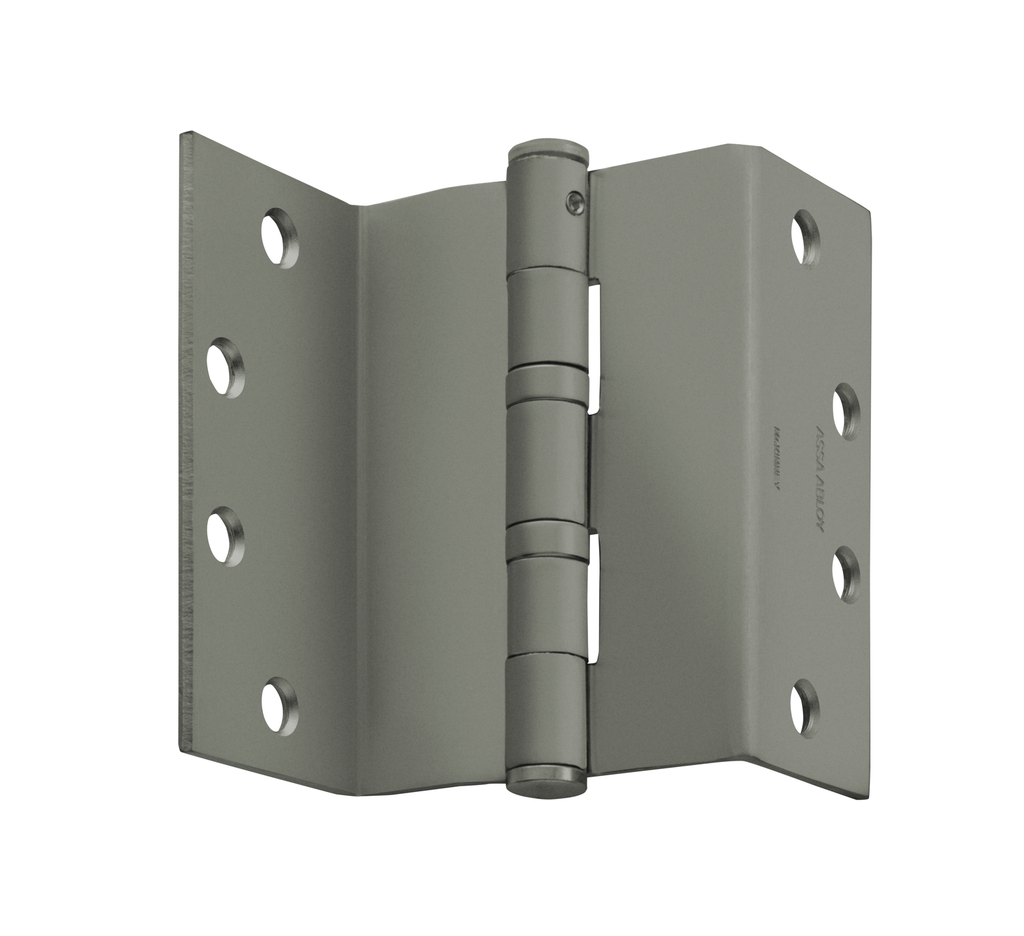

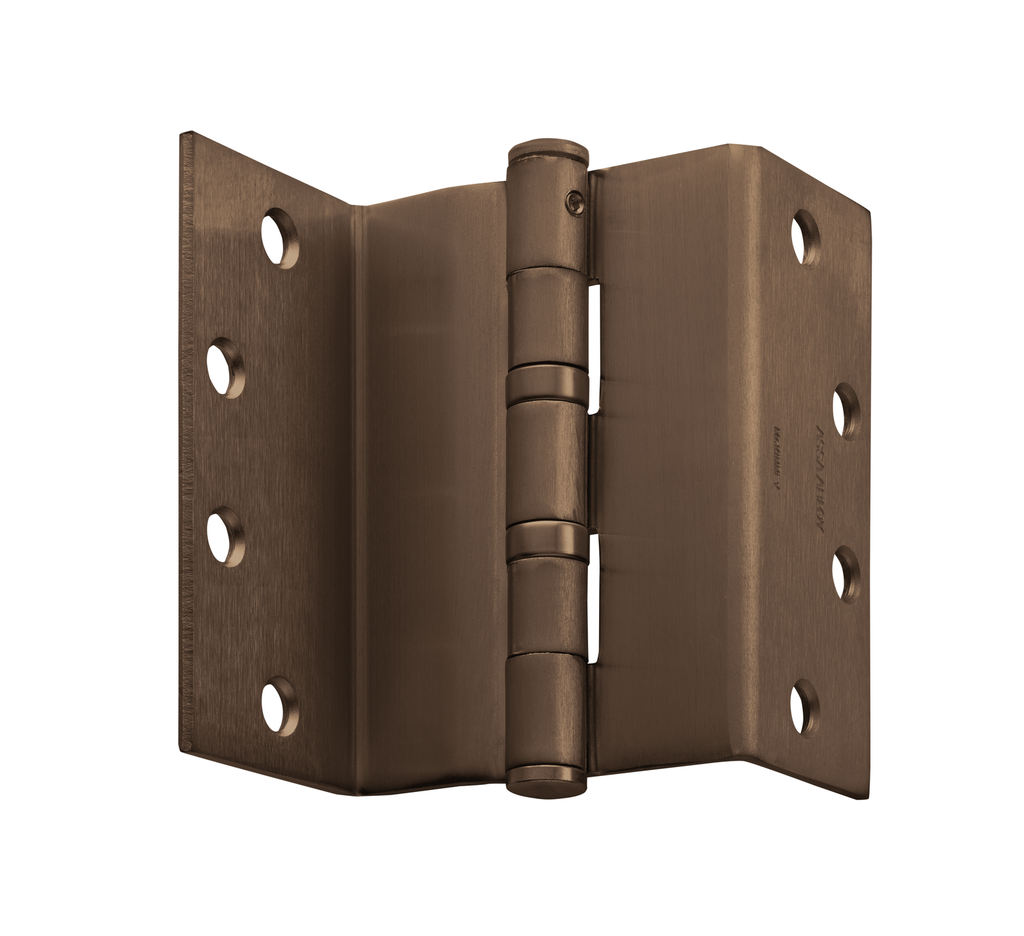

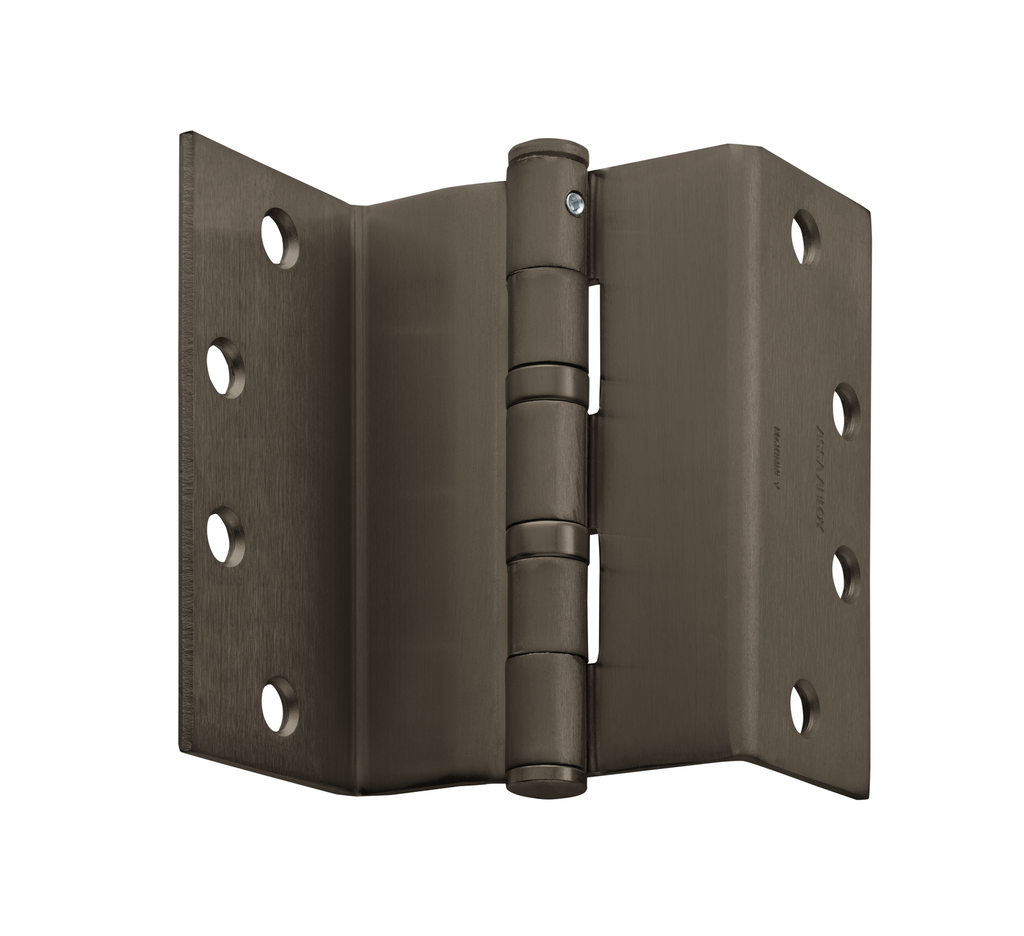

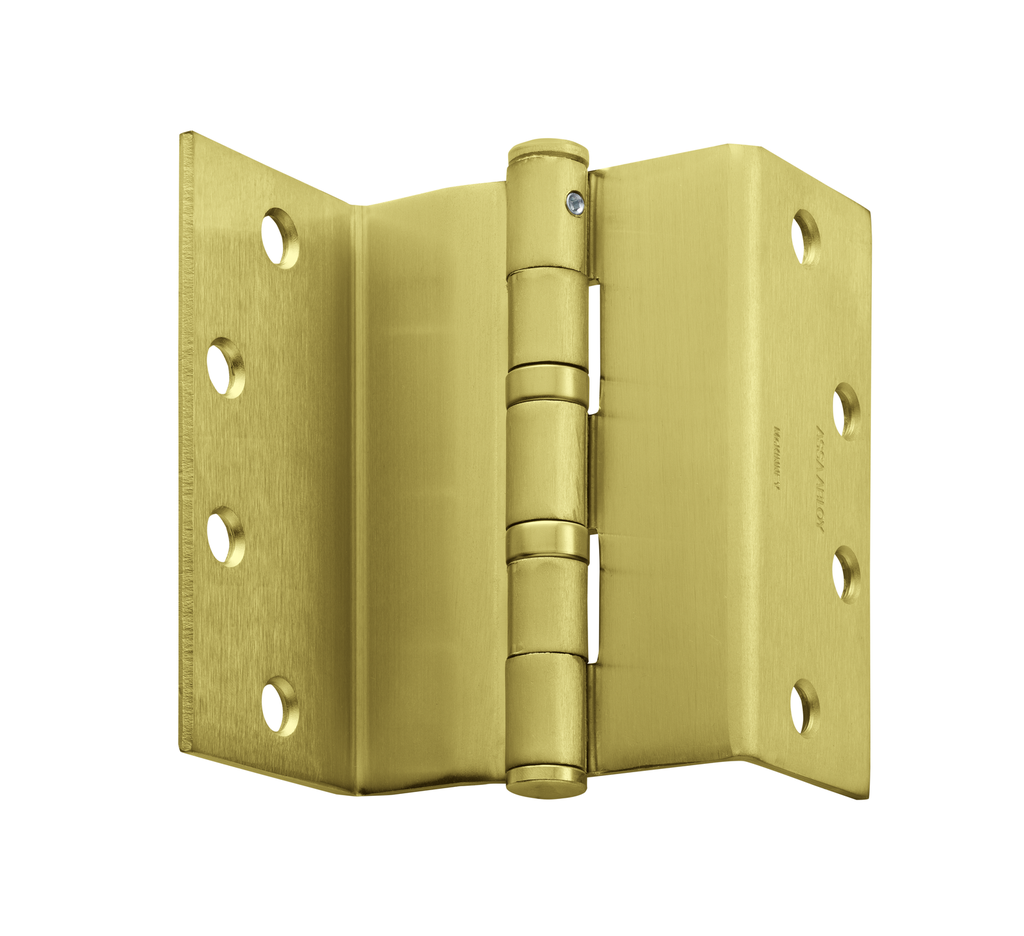

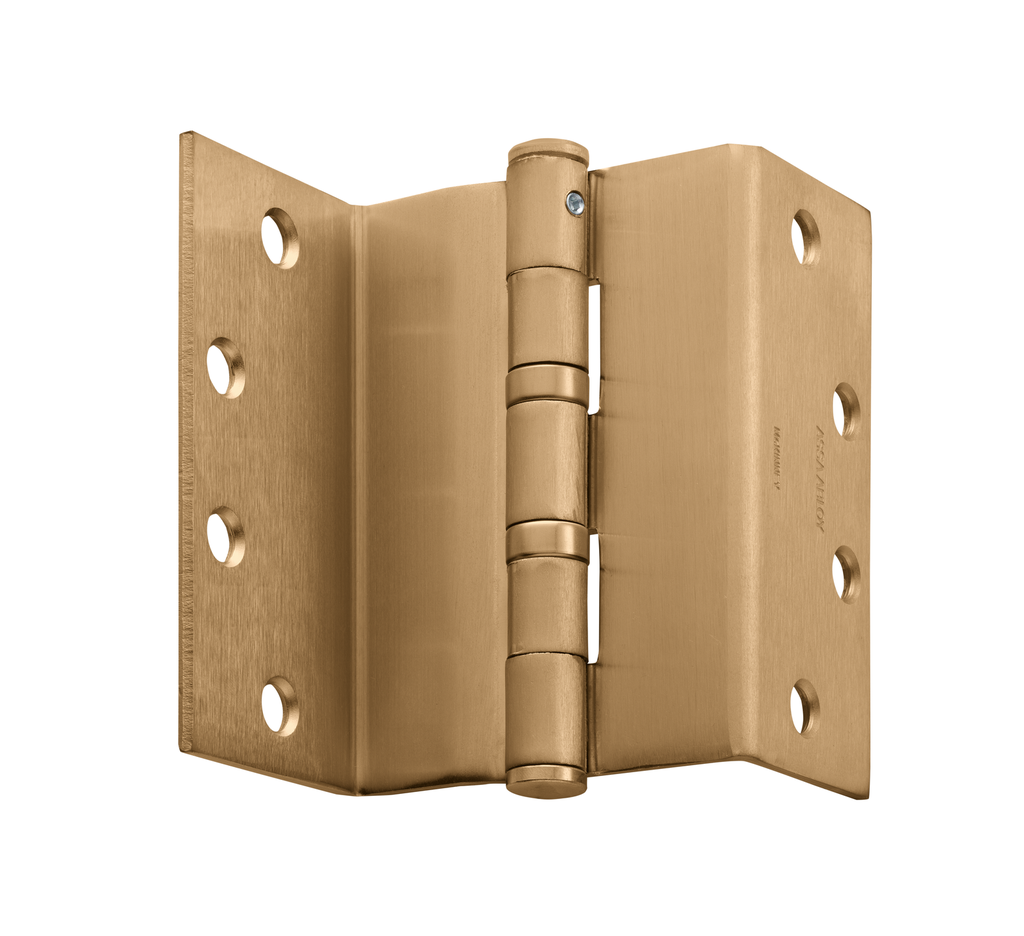

| General - US Finishes | US26D - Satin Chrome or BSP - Black Suede Power Coat or US15 - Satin Nickel or US4 - Satin Brass or US10 - Satin Bronze or US10A - Oil Rubbed Bronze or US10B - Oil Rubbed Bronze or US10BE - Oil Rub Bronze Equal or USP - Prime Painted |
| Brand | McKinney |
| Hinge Type | Swing Clear |
| Hinge Height | 5.0" Hi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Corners | Square |
| Base Material | Steel |
| Hinge Options | Swing Clear - Sq. Edge Dr |
