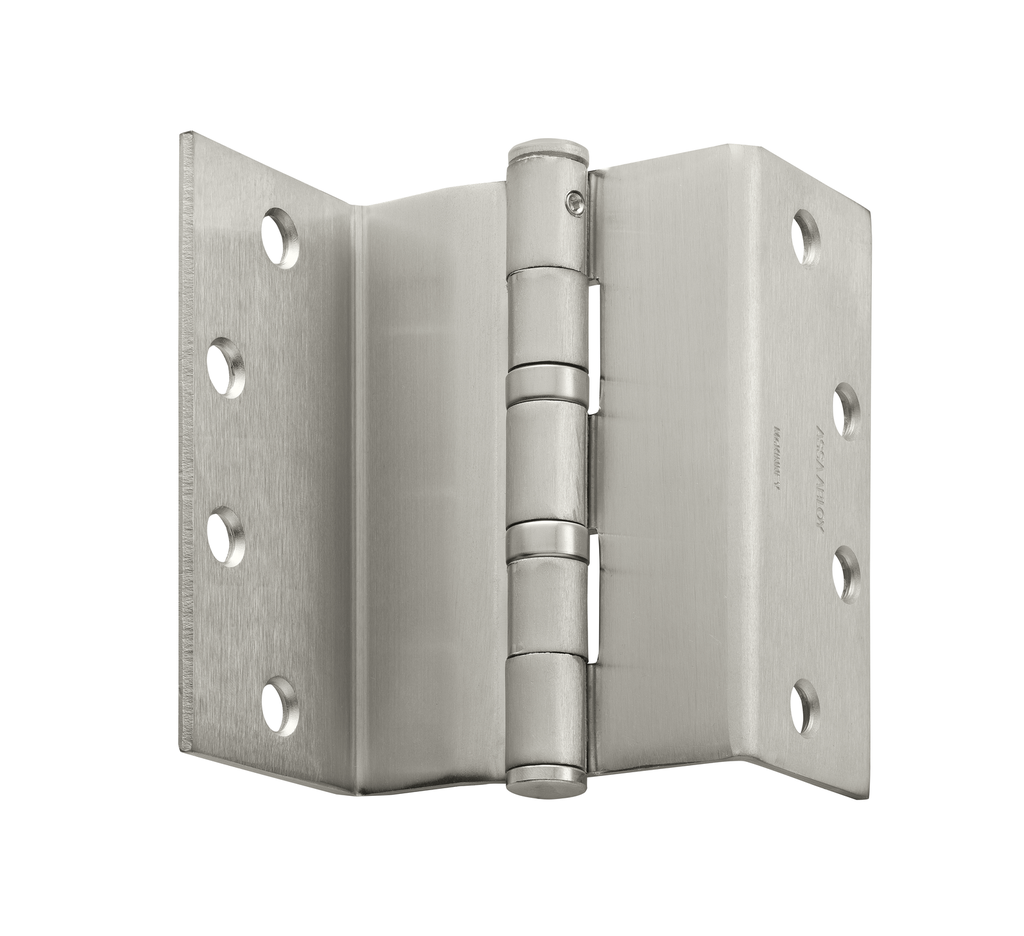

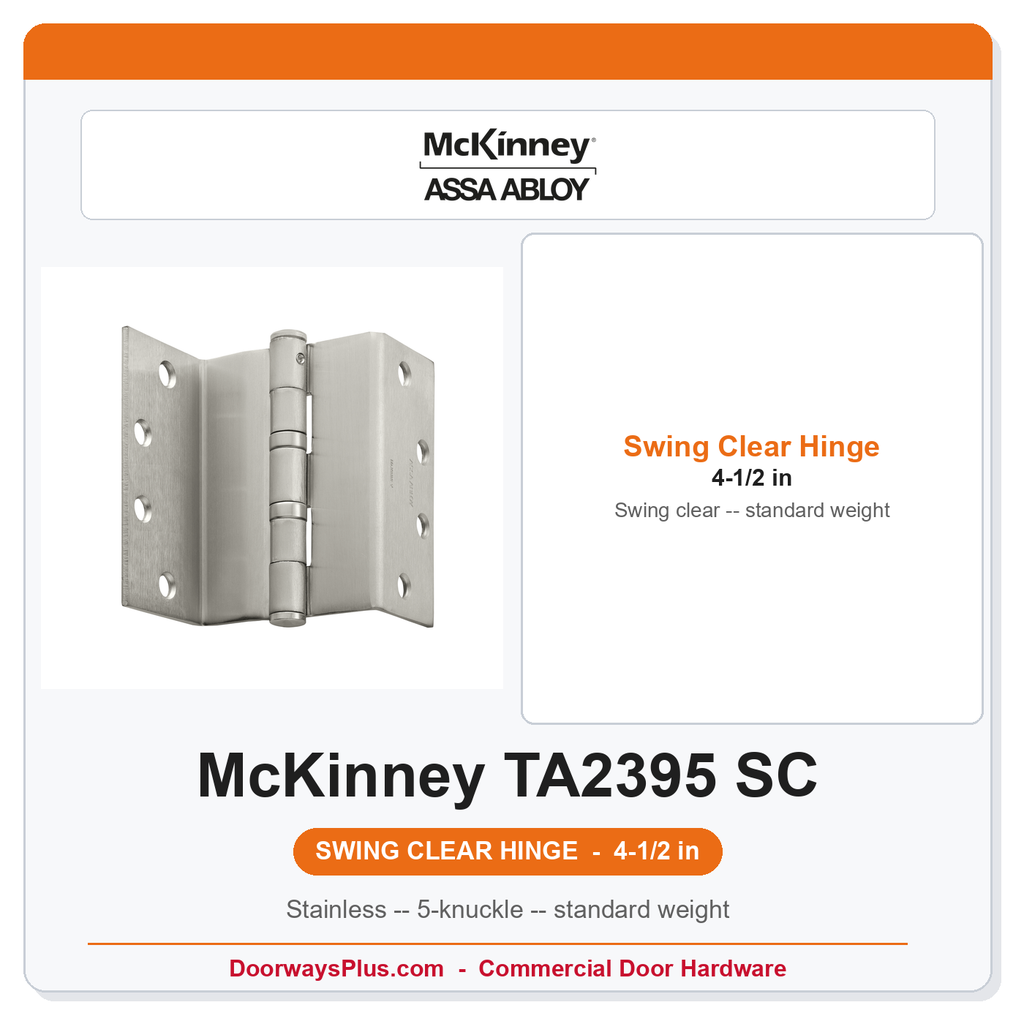

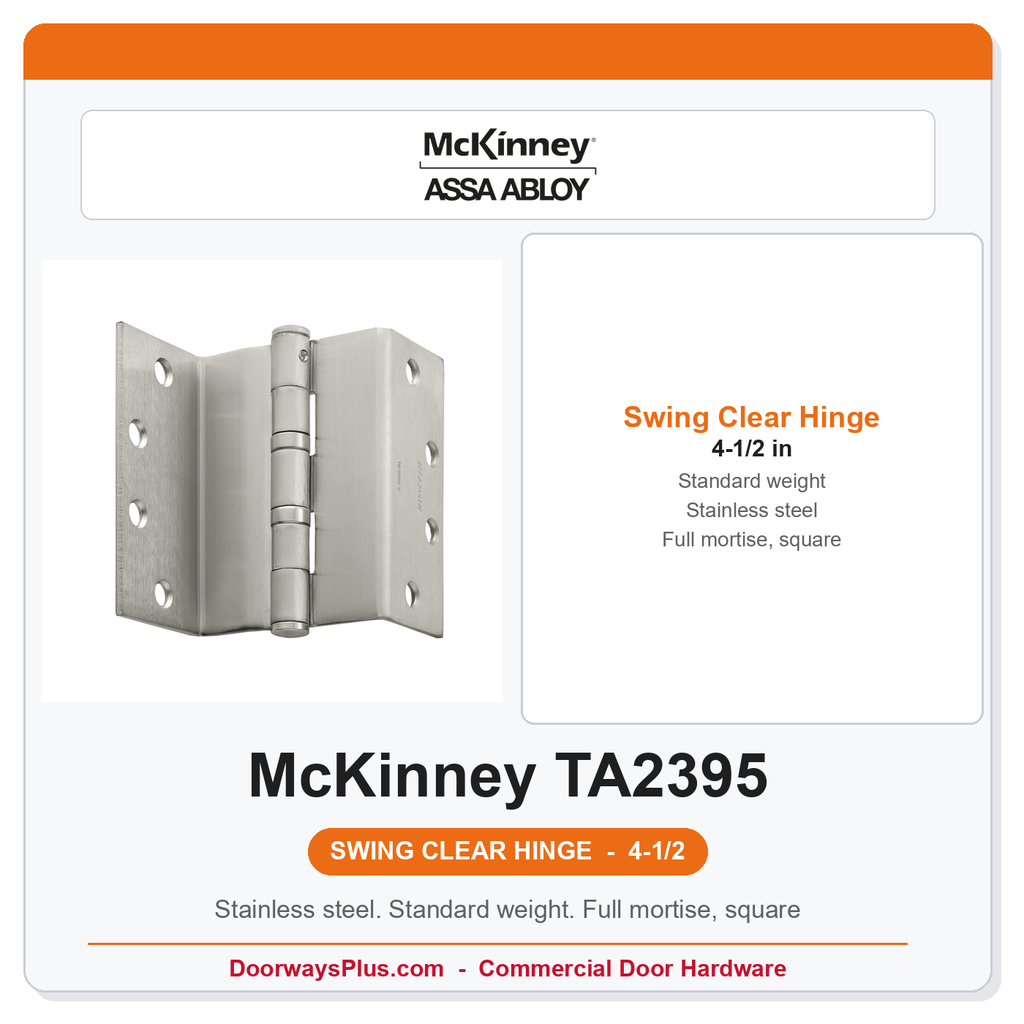

McKinney TA2395. Stainless swing-clear standard-weight hinge, 4-1/2 in. Lead time 2-4 weeks. Sold Each.

*** Lead Time: 2-4 Weeks ***

$ 100.67 100.67 USD $ 100.67

$ 100.67

Not Available For Sale

  • Brand
  • General - US Finishes
  • Hinge Type
  • Hinge Height
  • Hinge Grade/Thickness
  • Hinge Corners
  • Base Material
  • Hinge Options

This combination does not exist.

Contact Us
Share :

McKinney TA2395 4-1/2 Swing Clear Standard Weight Hinge

Institutional Grade Features & Benefits

  • Swing clear. Five-knuckle full mortise standard-weight hinge. The barrel and door edge move out of the opening so beds and carts can pass. Meets ADA / ANSI A117.1-1986 per catalog FM-14.
  • Size. 4-1/2 in (114.3 mm). Gauge 0.134 in. Per catalog FM-14.
  • Material. Stainless steel. Square corner. Standard weight. Catalog FM-14 lists ANSI as N/A for TA2395.
  • Listing. NFPA 80 fire-rated openings per catalog FM-14. Reversible: the pin is held by an NRP set screw.
  • Fasteners. 8 holes. Machine 1/2 in x #12-24. Wood 1-1/4 in x #12. Per catalog FM-14.
  • Factory options (not priced here). TB ball bearing. Hospital tip. QC 4 / 8 / 12 and CC 4 / 8 / 12 are factory options on 4-1/2 in US26D and US32D only (catalog FM-14). Not priced here.
  • Mill template. McKinney TA2895/TA2395 4-1/2 in mill template AADSS1253270 from the TA2395/TA2895 product page.
  • Companion. Steel TA2895 is the ferrous sister series. Heavy-weight T4A3795/T4A3395 is the next class up.

Technical Details

ManufacturerMcKinney
ModelTA2395 4-1/2"
Product classSwing clear full mortise standard-weight hinge
MaterialStainless steel
Size4-1/2 in (114.3 mm) (catalog FM-14)
Gauge0.134 in (catalog FM-14)
CornersSquare
Machine screws1/2 in x #12-24
Wood screws1-1/4 in x #12
ListingNFPA 80 UL (catalog FM-14)
Lead time2-4 weeks (factory order)
General - US Finishes US32D - Satin Stainless Steel/ 630 or BSP - Black Suede Power Coat or US10BE - Oil Rub Bronze Equal
Brand McKinney
Hinge Type Swing Clear
Hinge Height 4.5" Hi
Hinge Grade/Thickness Standard Wt .119 to .146
Hinge Corners Square
Base Material Stainless Steel
Hinge Options Swing Clear - Sq. Edge Dr
