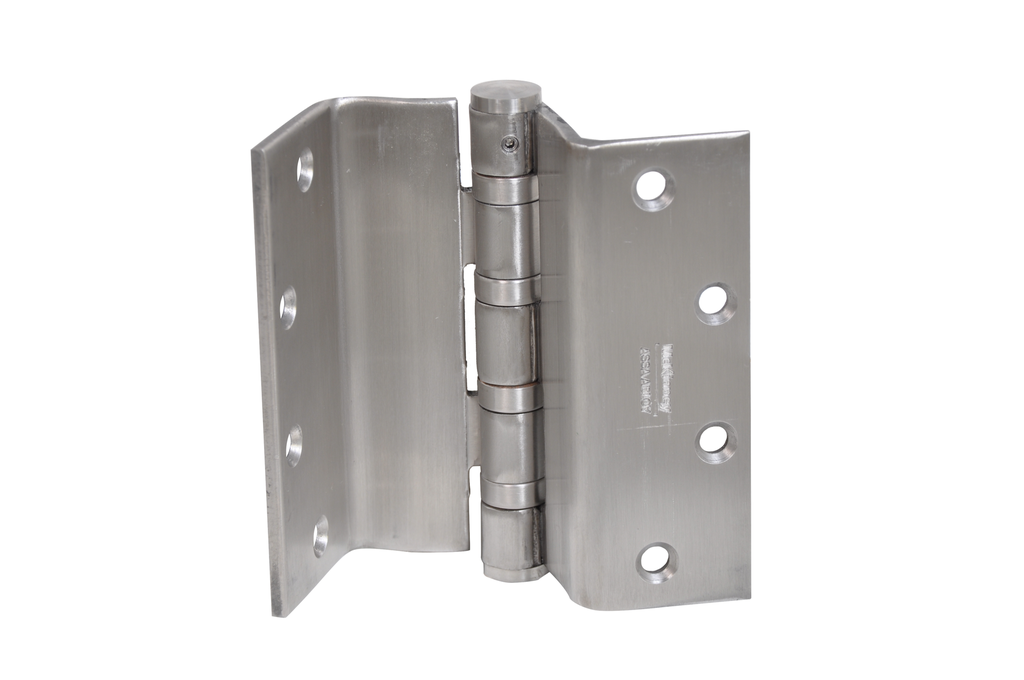

McKinney T4A3795 5" Heavy Weight Swing Clear Ball Bearing Hinge | US26D Satin Chrome | NRP | ANSI A8121
McKinney T4A3795 5" Swing Clear Bearing Hinge, 5 Knuckle - Square Edged Door - Steel with Plated US26D finish. Hinges are priced as Each.
Lead Time: 2-3 Business Days
Lead Time: 2-3 Business Days
Tags :
McKinney T4A3795 5" Heavy Weight Swing Clear Ball Bearing Hinge | US26D Satin Chrome | NRP | ANSI A8121
Institutional Grade Features & Benefits
- Swing clear. Five-knuckle full-mortise heavy weight hinge. The barrel and the door edge move out of the opening.
- Size. 5 in. Gauge .190. square edge. Steel.
- Pin. Non-removable pin. The hinge is reversible.
- Opening. Specified where the full frame width has to stay usable for beds, carts, and wheelchairs.
- Listing. ANSI A8121, as named on this hinge.
Technical Details
| Manufacturer | McKinney |
| Model | T4A3795 5 in |
| Product class | Swing clear full mortise heavy weight hinge |
| Size | 5 in |
| Gauge | .190 |
| Edge | square |
| Knuckle | 5 |
| Listing | ANSI A8121 |
| General - US Finishes | US26D - Satin Chrome |
| Brand | McKinney |
| Hinge Height | 5.0" Hi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Swing Clear |
| Hinge Options | Swing Clear - Sq. Edge Dr, Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Steel |
| Hinge Corners | Square |
