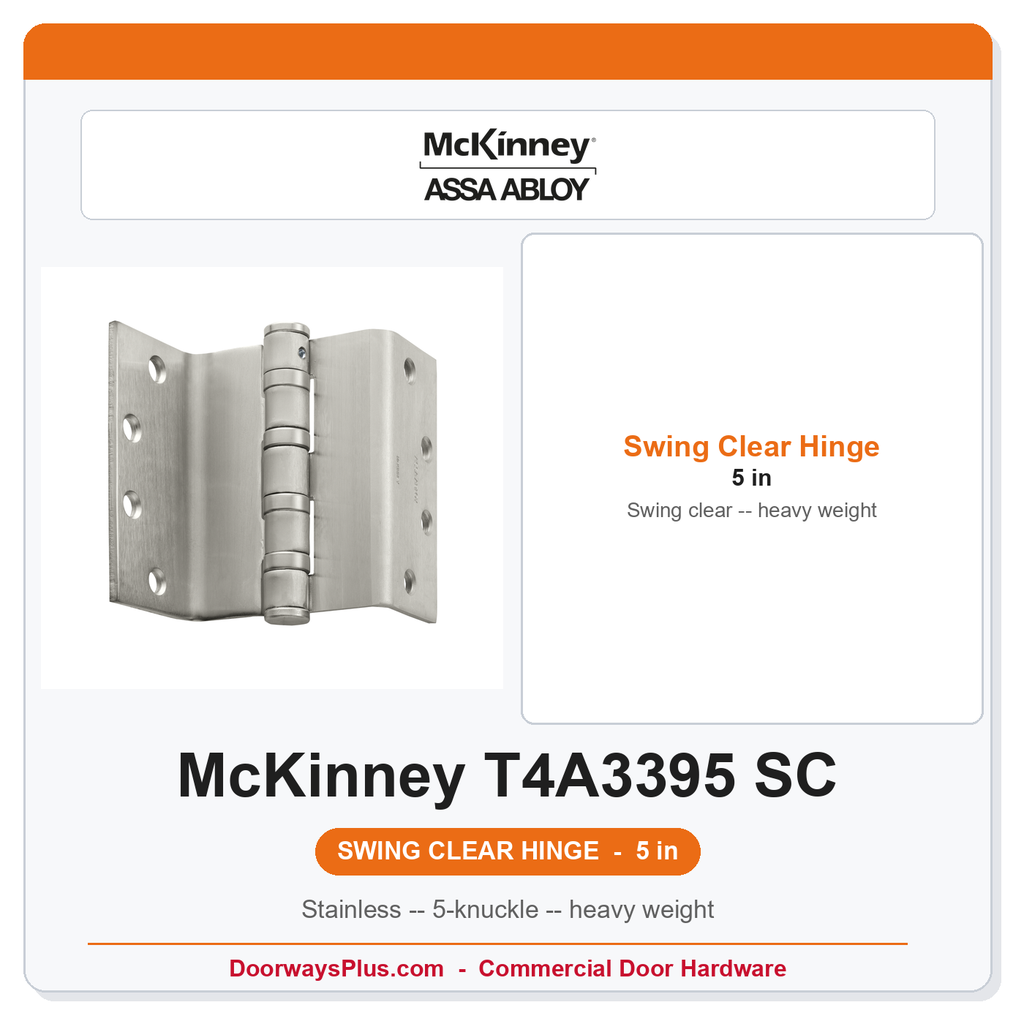

McKinney T4A3395 5 Swing Clear Heavy Weight Hinge
Institutional Grade Features & Benefits

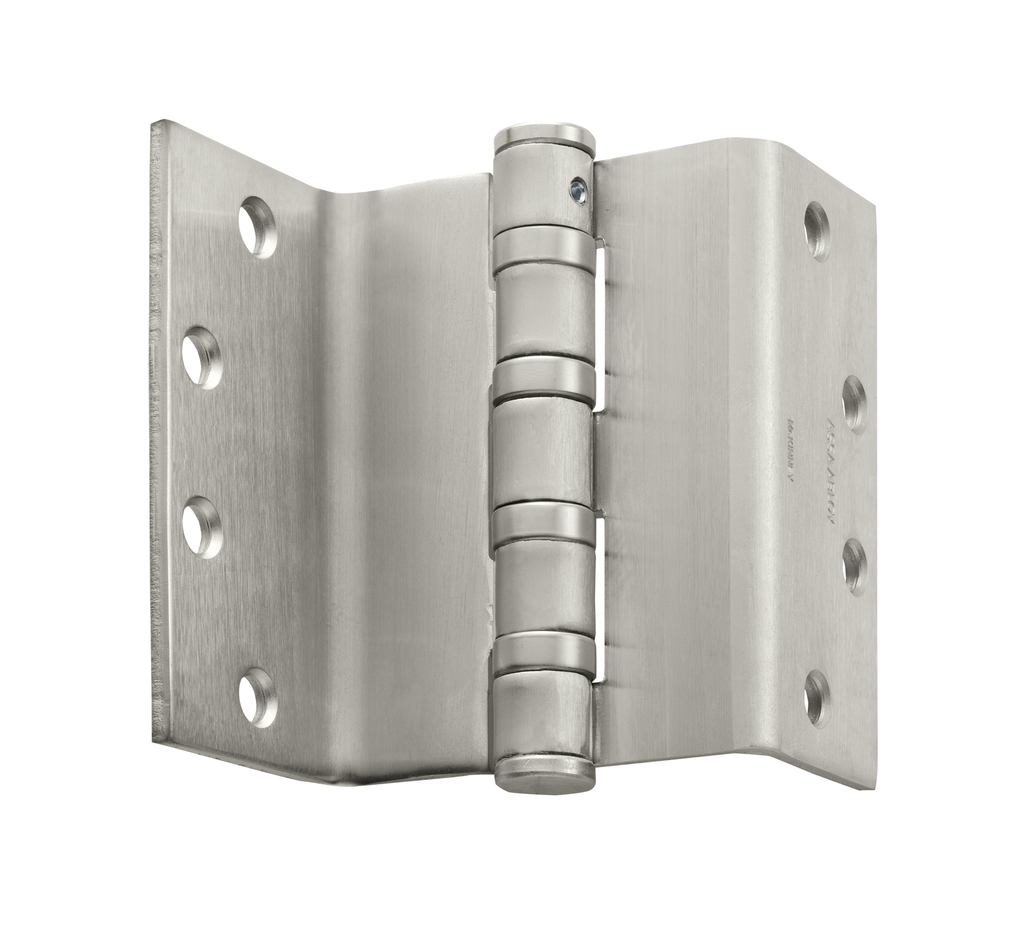

- Swing clear. Five-knuckle full mortise heavy-weight hinge. The barrel and door edge move out of the opening so beds and carts can pass. Meets ADA / ANSI A117.1-1986 per catalog FM-15.
- Size. 5 in (127 mm). Gauge 0.190 in. Per catalog FM-15 / mill template.
- Material. Stainless steel. Square corner. Heavy weight. ANSI A5121 per T4A3395 cut sheet. NRP is standard (catalog FM-15).
- Listing. NFPA 80 fire-rated openings per catalog FM-15. Reversible: the pin is held by an NRP set screw.
- Fasteners. 8 holes. Machine 1/2 in x #12-24. Wood 1-1/4 in x #12. Per T4A3395 cut sheet.
- Factory options (not priced here). T4B ball bearing. Hospital tip. QC 4 / 8 / 12 and CC 4 / 8 / 12 are factory options (catalog FM-15 / T4A3395 cut sheet). Not priced here.
- Mill template. McKinney T4A3795/T4A3395 5 in mill template AADSS1253272 from the T4A3395/T4A3795 product page. T4B mill sheets are a different series and are not attached.
- Companion. Steel T4A3795 is the ferrous sister series. Standard-weight TA2395/TA2895 is the class below.
Technical Details
| Manufacturer | McKinney |
|---|---|
| Model | T4A3395 5" |
| Product class | Swing clear full mortise heavy-weight hinge |
| Material | Stainless steel |
| Size | 5 in (127 mm) (catalog FM-15) |
| Gauge | 0.190 in (catalog FM-15 / mill) |
| Corners | Square |
| Machine screws | 1/2 in x #12-24 |
| Wood screws | 1-1/4 in x #12 |
| Listing | NFPA 80 UL; ANSI A5121 |
| Lead time | 2-4 weeks (factory order) |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or BSP - Black Suede Power Coat or US10BE - Oil Rub Bronze Equal |
| Brand | McKinney |
| Hinge Type | Swing Clear |
| Hinge Height | 5.0" Hi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Corners | Square |
| Base Material | Stainless Steel |
| Hinge Options | Swing Clear - Sq. Edge Dr |
