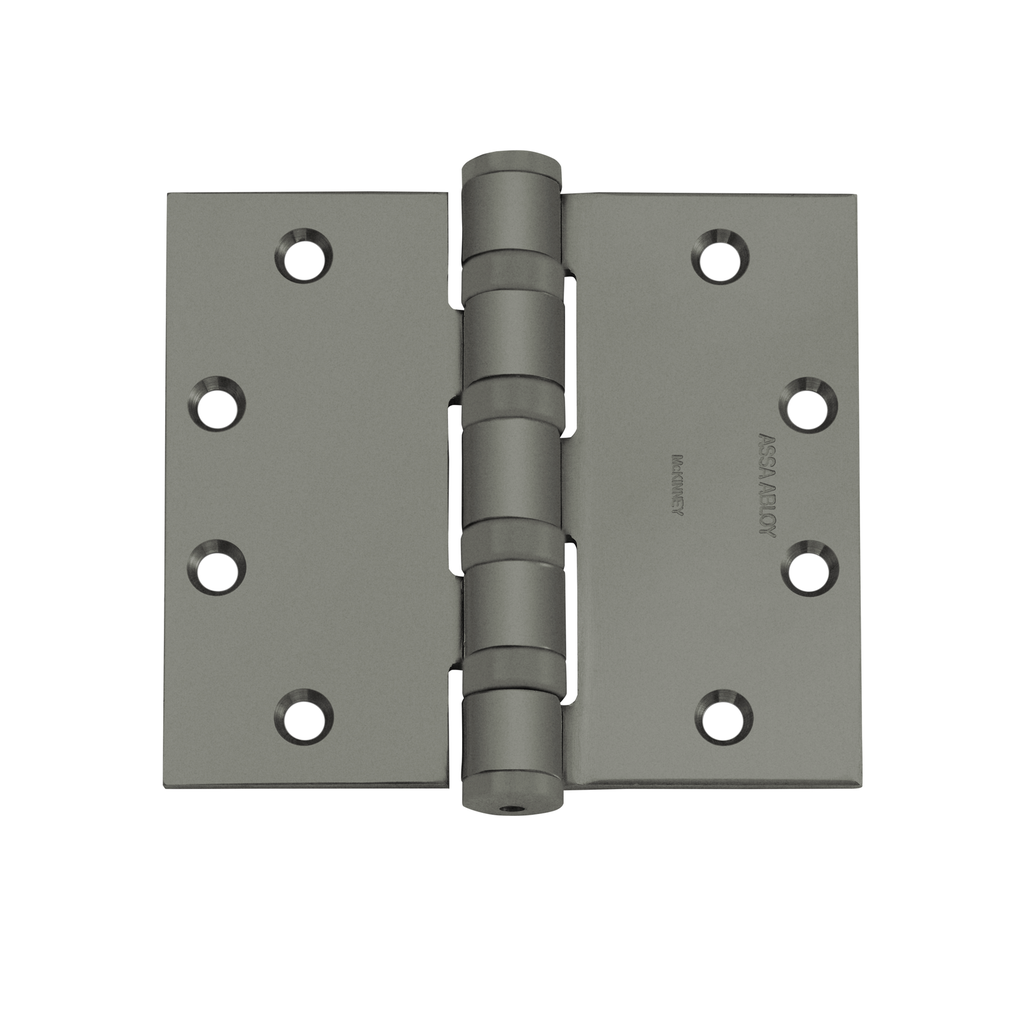

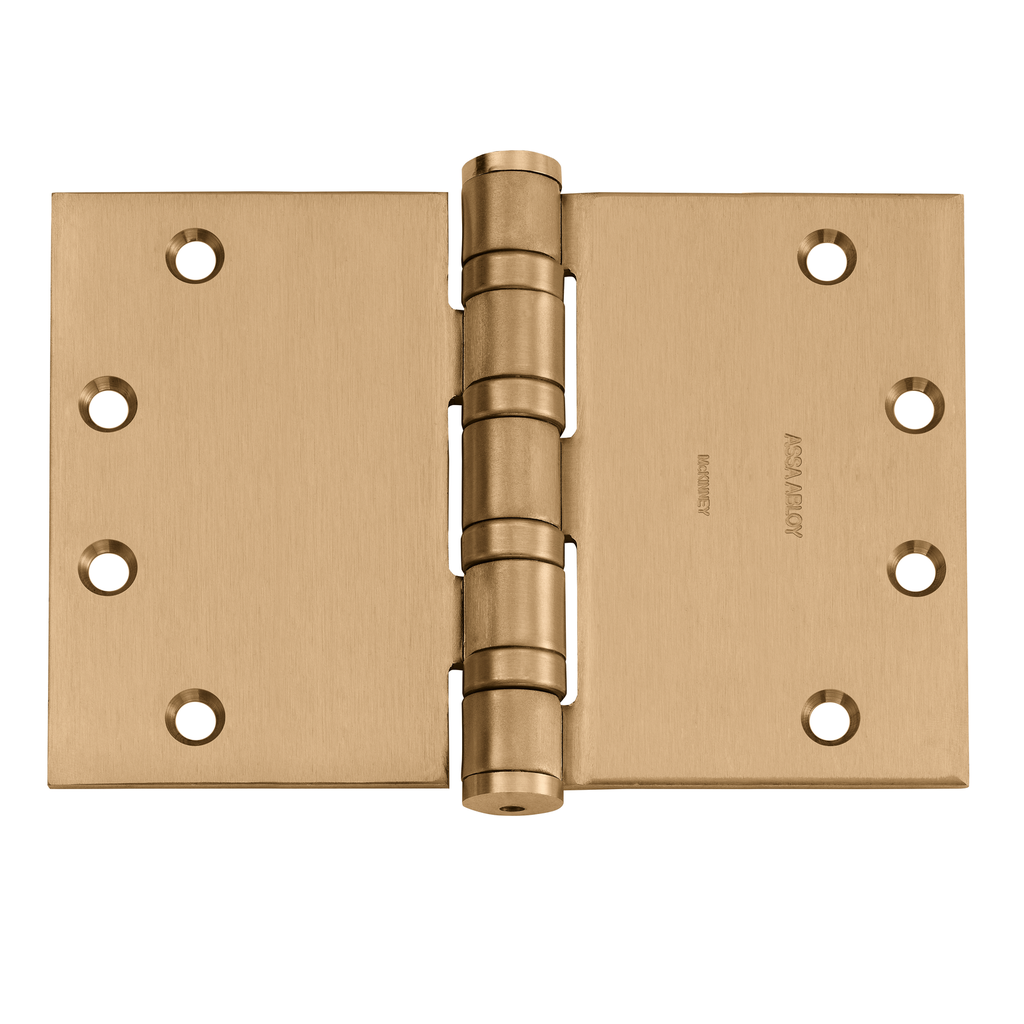

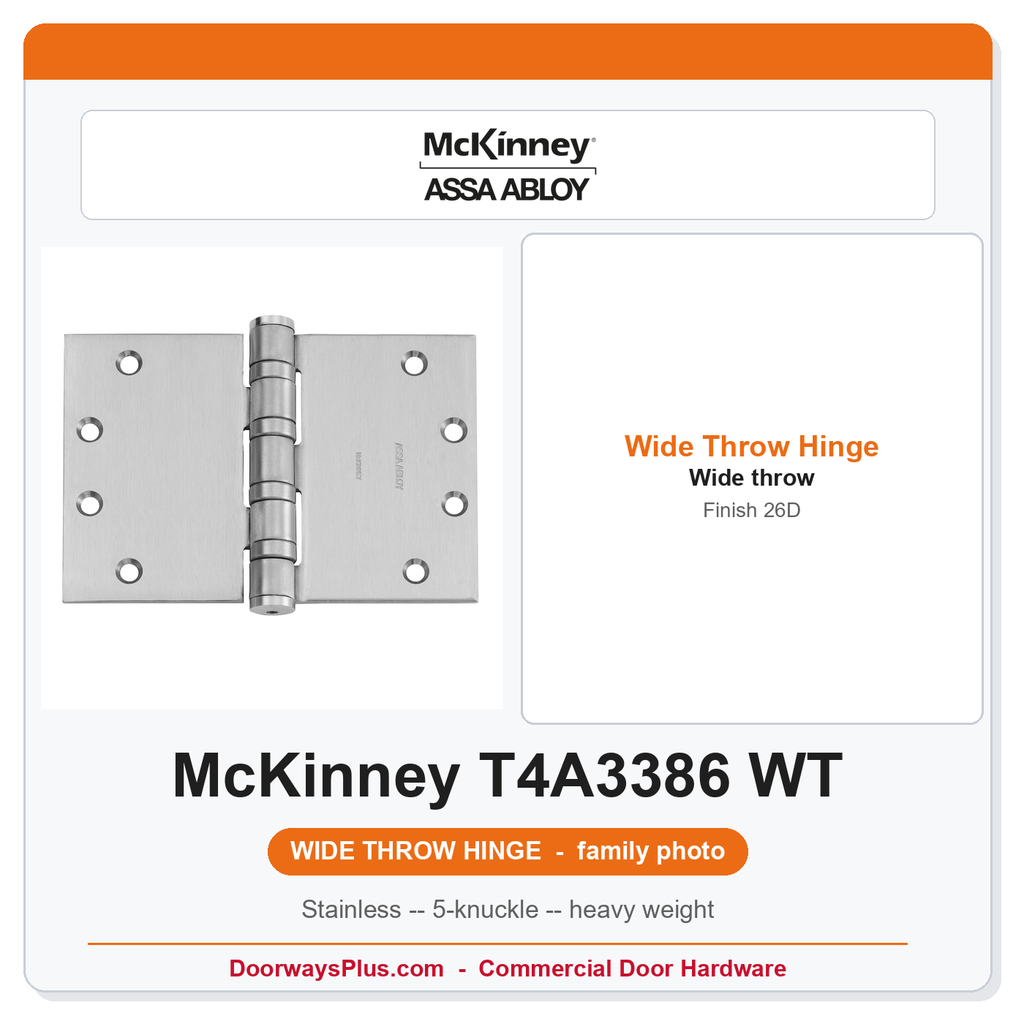

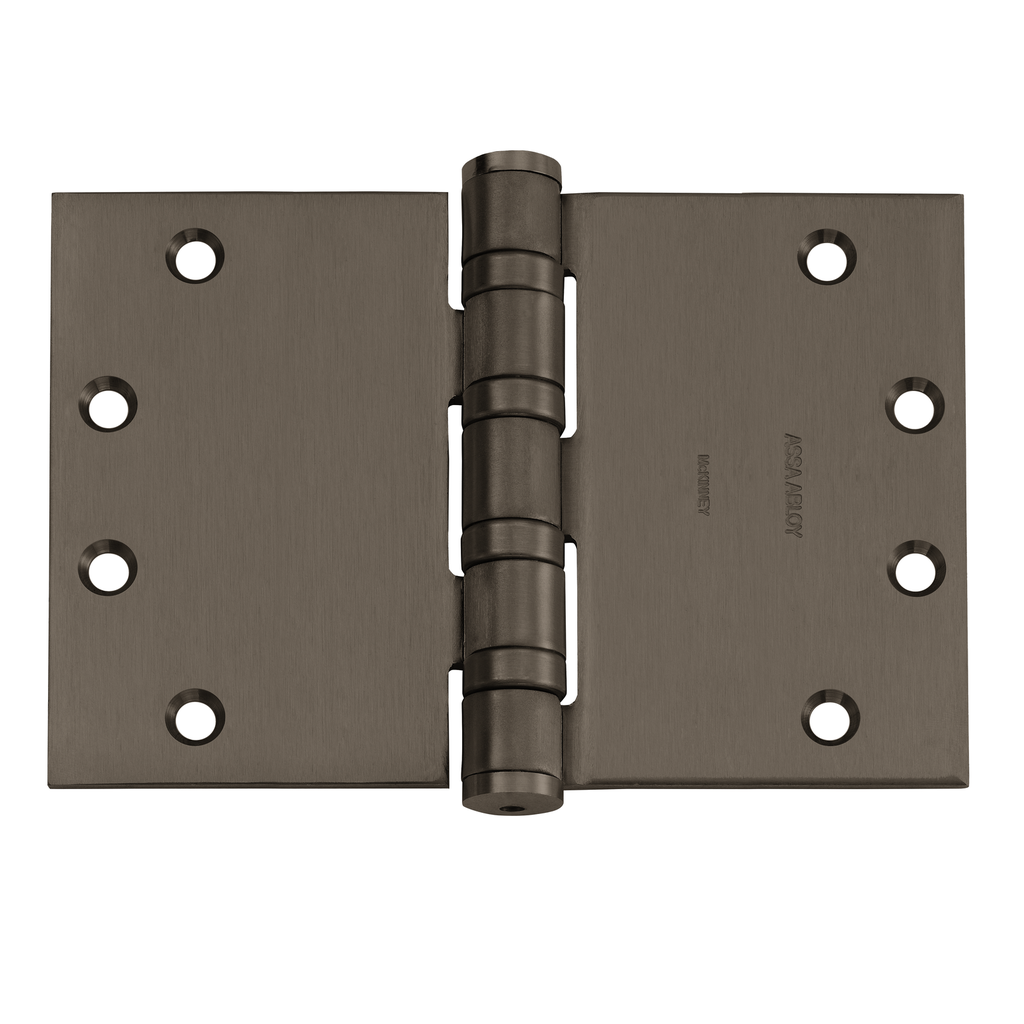

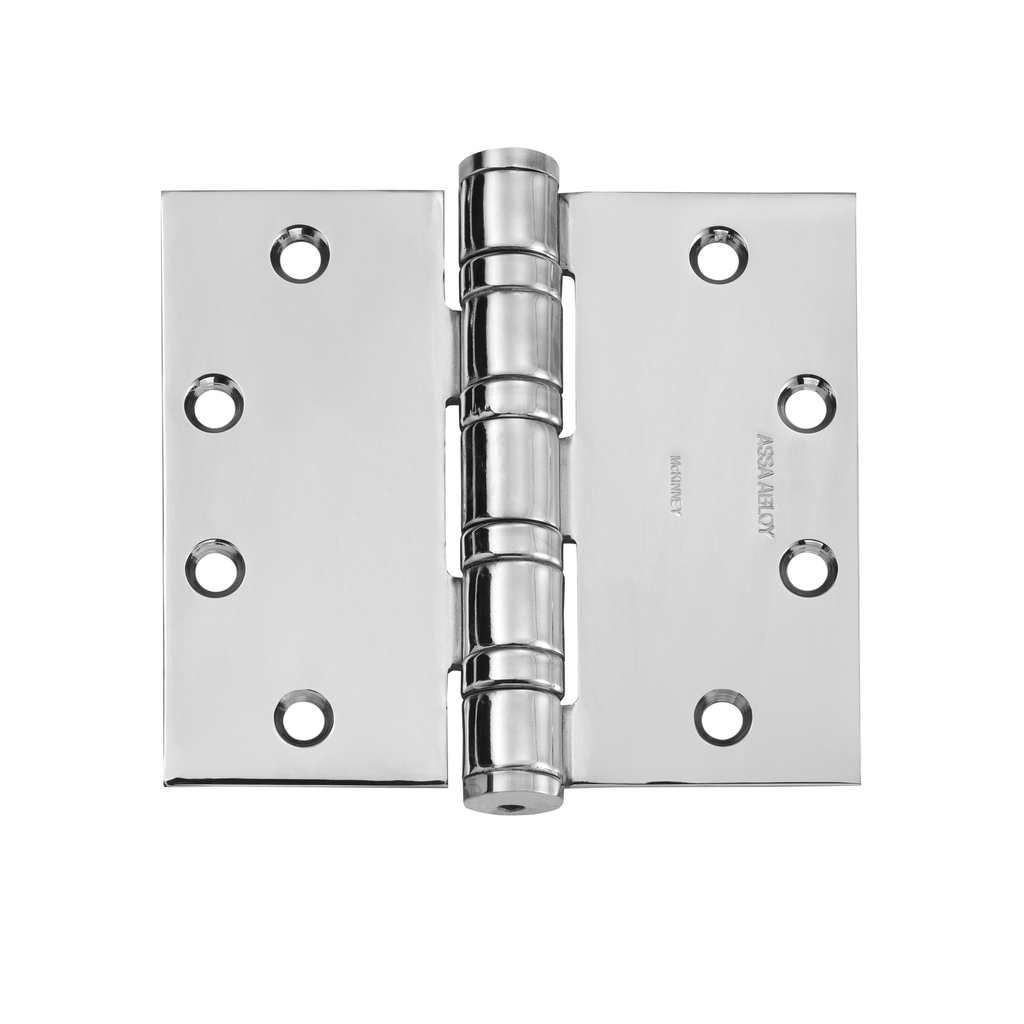

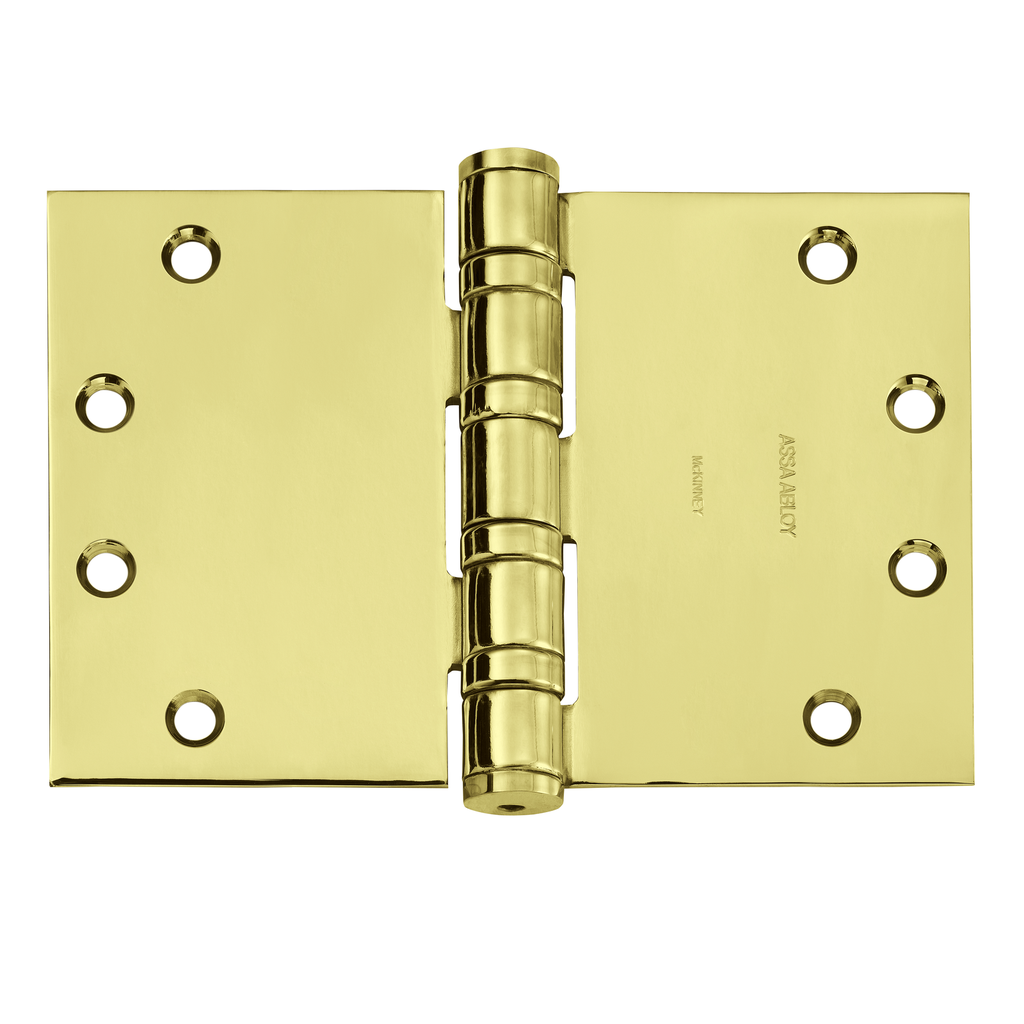

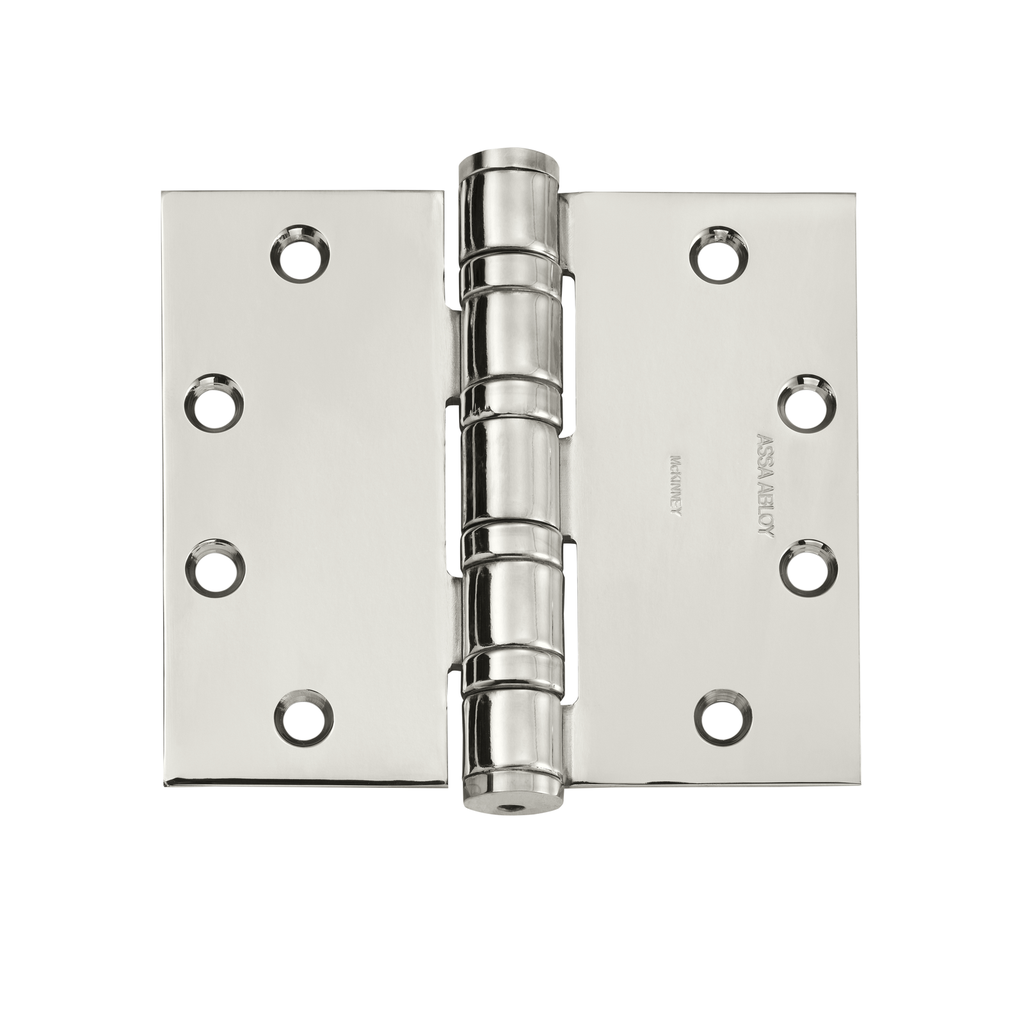

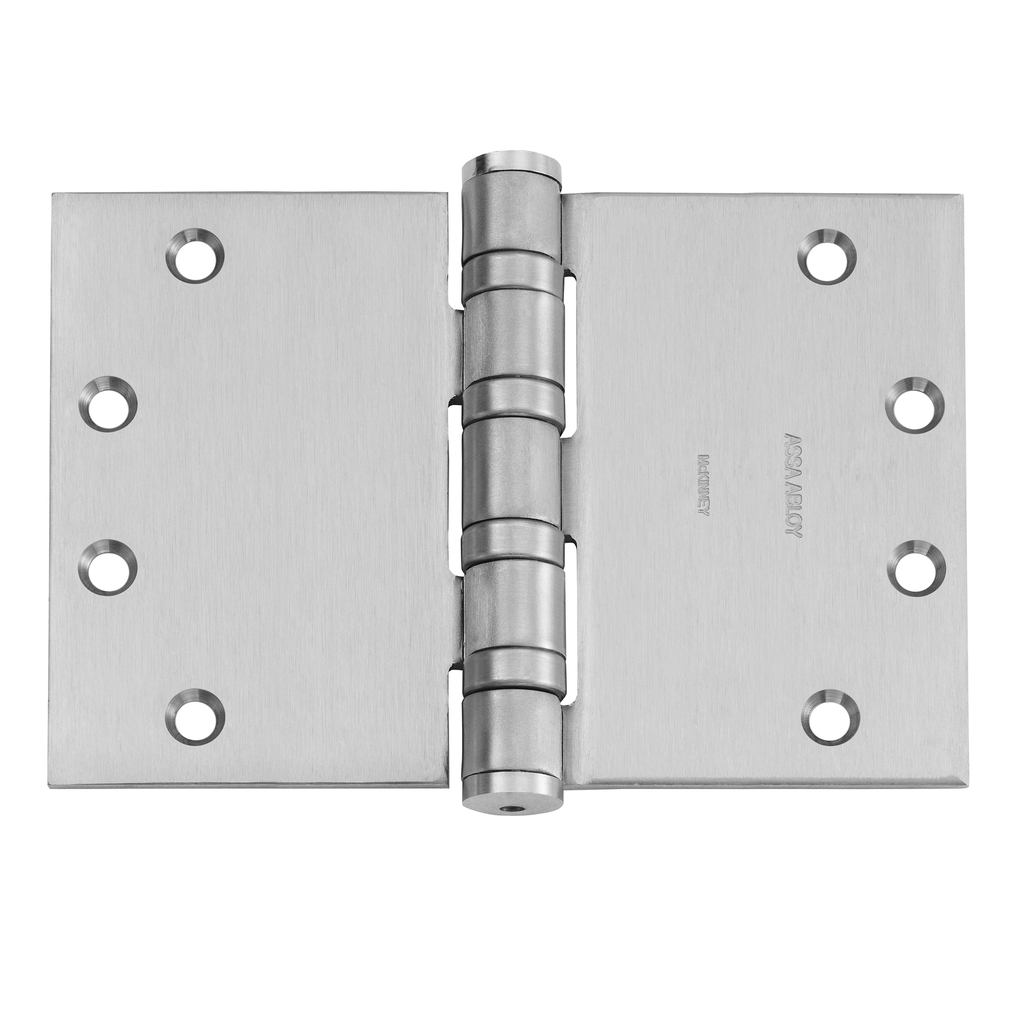

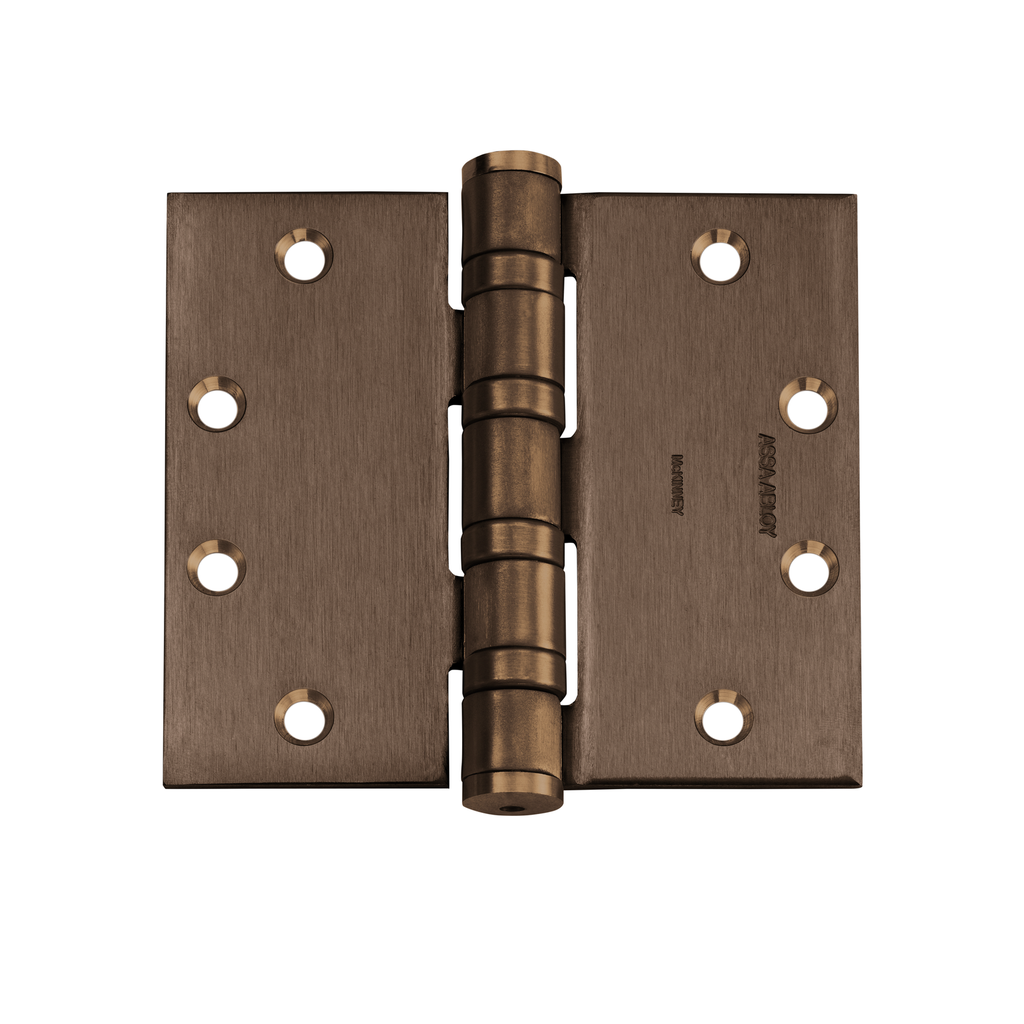

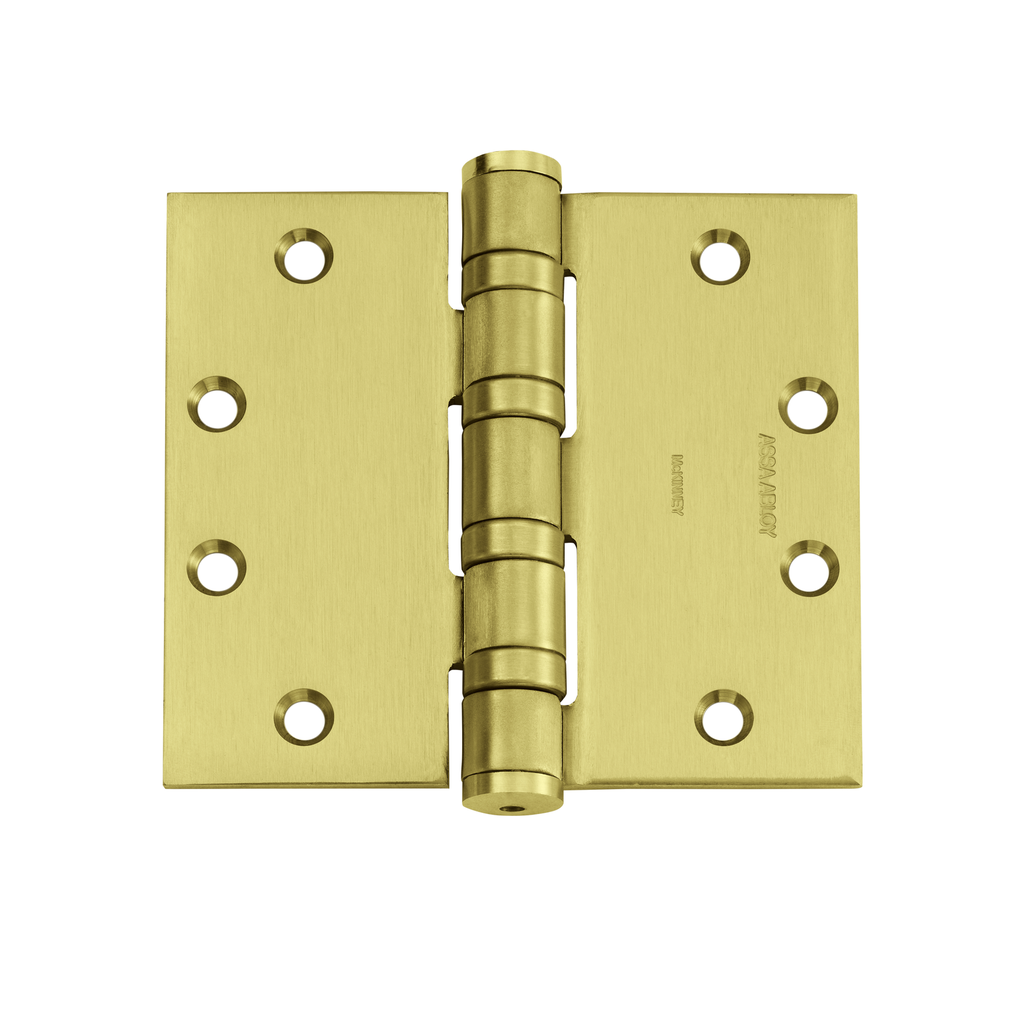

McKinney T4A3386 5 x 6 Wide Throw Heavy Weight Ball Bearing Hinge
Institutional Grade Features & Benefits
- Wide throw. Five-knuckle full mortise heavy-weight hinge for doors that must open around a large reveal.
- Size. 5 in x 6 in (127 x 152.4 mm). Gauge 0.190 in.
- Material. Stainless steel. Square corner. Heavy weight. ANSI A5111 Grade 1 per catalog FM-13.
- Listing. NFPA 80 fire-rated openings per catalog FM-13.
- Fasteners. 8 holes. Machine 1/2 in x #12-24. Wood 1-1/4 in x #12. Per catalog FM-13.
- Factory options (not priced here). NRP, T4B, TCA, RC, hospital tip, decorative tips, SSF. QC 4 / 8 / 12 and CC 4 / 8 / 12 are factory options on this width (catalog: QC/CC up to 6 in wide). Not priced here.
- Companion. Steel T4A3786-WIDETHROW is the ferrous sister series.
Technical Details
| Manufacturer | McKinney |
|---|---|
| Model | T4A3386 5" x 6" |
| Product class | Wide throw full mortise ball bearing hinge |
| Material | Stainless steel |
| Size | 5 in x 6 in (127 x 152.4 mm) |
| Gauge | 0.190 in |
| Bearing | Oil-impregnated / ball bearing |
| Corners | Square |
| Machine screws | 1/2 in x #12-24 |
| Wood screws | 1-1/4 in x #12 |
| Listing | NFPA 80 UL; ANSI A5111 |
| Lead time | 2-4 weeks (factory order) |
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or BSP - Black Suede Power Coat or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10A - Oil Rubbed Bronze or US10B - Oil Rubbed Bronze or US10BE - Oil Rub Bronze Equal or US32 - Polished Stainless Steel or USP - Prime Painted |
| Brand | McKinney |
| Hinge Type | Full Mortise |
| Hinge Height | 5.0" Hi |
| Hinge Width | 6.0" Wi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Corners | Square |
| Base Material | Stainless Steel |
| Hinge Options | Ball Bearing |
