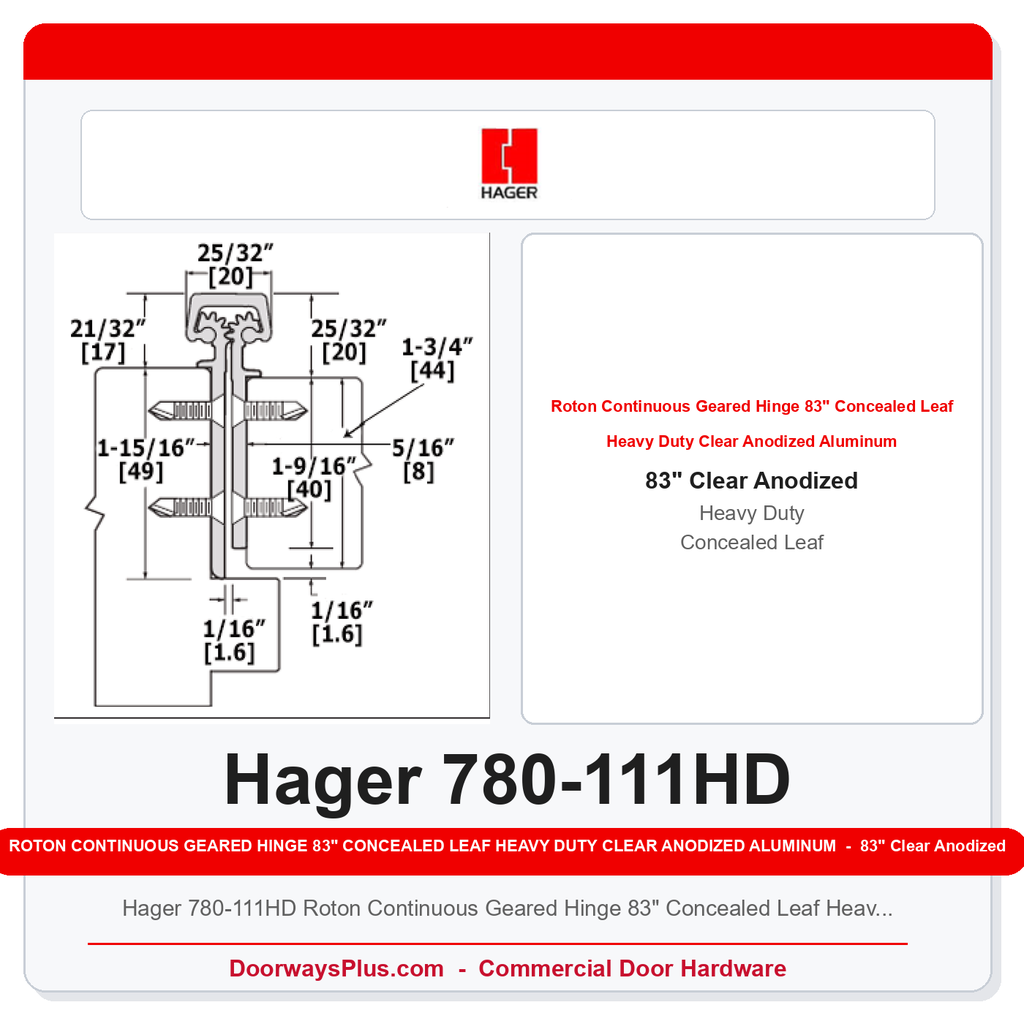

Hager 780-111HD Roton Continuous Geared Hinge — 83" Concealed Leaf, Heavy Duty, Clear Anodized Aluminum
The Hager 780-111HD is an 83-inch concealed leaf continuous geared hinge from Hager's aluminum 780 Series Roton line — one of the most specified geared continuous hinges in commercial construction. Unlike conventional butt hinges that concentrate load stress at two or three pivot points, the 780-111HD distributes door weight uniformly along the entire height of the opening, virtually eliminating door sag, binding, and hinge-point fatigue on high-cycle openings. The concealed leaf design keeps both geared leaves hidden within the door and frame edges when the door is closed, producing a clean pull-side appearance with no exposed hardware and a tamper-resistant profile. Certified to ANSI/BHMA A156.26 Grade 1 and UL fire listed — suitable for rated assemblies requiring a full-height aluminum continuous geared hinge.
Key Features & Benefits
- Full-Height Load Distribution: Geared leaves ride on high-strength nylon bearings spanning the full 83-inch door height, eliminating the concentrated stress that causes butt hinge sag and frame fatigue over time.
- Concealed Leaf (Full Mortise) Design: Both leaves are mortised into the door and frame edges — no exposed hinge is visible on the pull side. Ideal where aesthetics, security, or anti-tamper requirements apply.
- Heavy Duty (HD) Rating: Engineered for doors up to 300 lbs in the highest-traffic commercial openings — institutional corridors, schools, healthcare facilities, government buildings.
- ANSI/BHMA A156.26 Grade 1: Meets the top commercial performance grade for aluminum continuous geared hinges — the specification standard referenced by architects and code authorities.
- UL Fire Listed: Listed for use on fire-rated door assemblies, supporting compliance on labeled openings.
- Clear Anodized Aluminum Finish (US28 / 628): Extruded 6063-T6 aluminum body with a clear anodized finish — corrosion-resistant, maintenance-free, and compatible with standard aluminum storefront and hollow metal openings.
- 1-3/4" Door Thickness: Factory-sized for standard commercial door thickness; verify frame and door prep before ordering non-standard configurations.
- HagerOnHand Express Quick-Ship: This 83-inch length in clear anodized is stocked in Hager's HagerOnHand Express program and ships in 1–2 business days. Non-standard lengths, finishes, and electrified/monitored options carry a 3–4 week factory lead time.
Typical Applications
- High-traffic institutional and commercial doors — schools, hospitals, courthouses, transit facilities
- Fire-rated hollow metal door and frame assemblies
- Openings requiring a tamper-resistant, clean pull-side appearance
- Retrofit of worn butt hinge applications where door sag or frame damage has occurred
- Aluminum storefront and heavy commercial wood-door openings requiring concealed continuous geared hinge support
Technical Details
| Feature | Details |
|---|---|
| Model Number | 780-111HD |
| Brand / Series | Hager — Roton 780 Series |

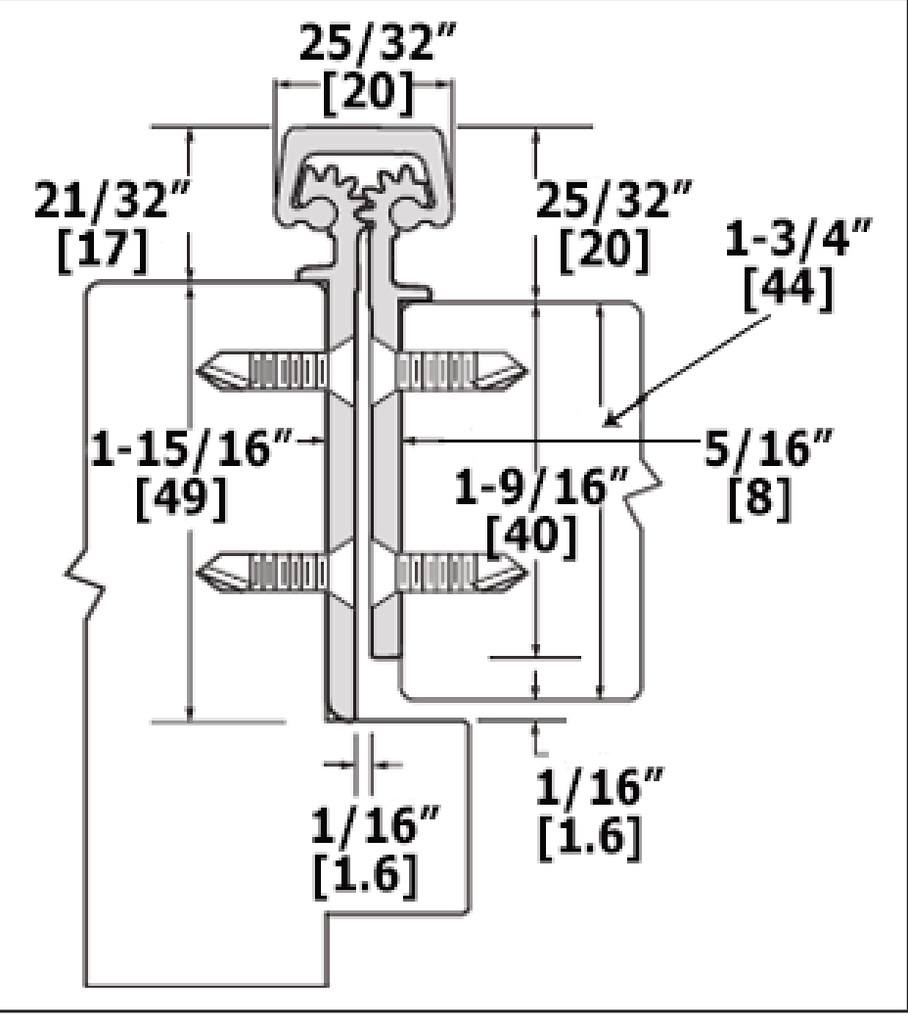

| Hinge Type | Concealed Leaf (Full Mortise) Continuous Geared Hinge |
| Length | 83 inches |
| Duty Rating | Heavy Duty (HD) — leaf thickness .180 to .190" |
| Maximum Door Weight | 300 lbs |
| Door Thickness | 1-3/4" |
| Material | Extruded 6063-T6 Aluminum |
| Finish | Clear Anodized Aluminum — US28 / BHMA 628 |
| Grade / Standard | ANSI/BHMA A156.26 Grade 1 |
| Fire Rating | UL Fire Listed |
| Ship Program | HagerOnHand Express — 1–2 business day ship |
| Brand | Hager |
| Door Thickness | 1-3/4" Dr Thickness |
| General - US Finishes | US28 - 628/ Anodized Aluminum |
| Length | 83 Inch |
| Hinge Type | Concealed, Continuous Hinge |
| Continuous Hinge Grade | Heavy Duty |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Fire Rated | Fire Rated |
| Maximum Weight of Door | 300 Lbs |
