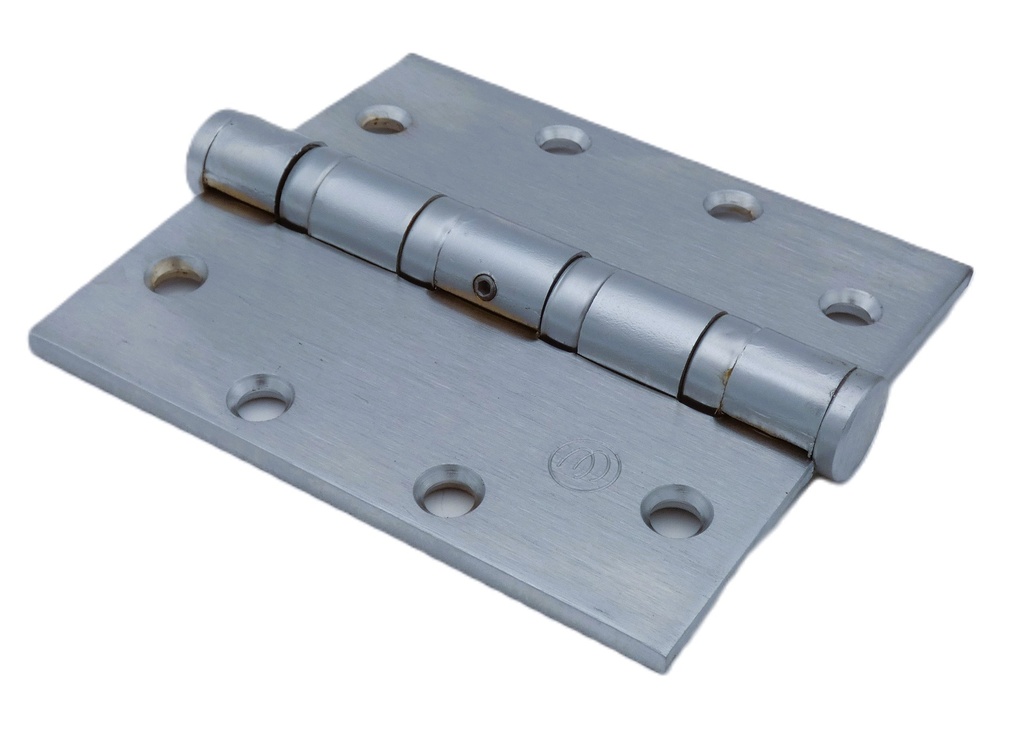

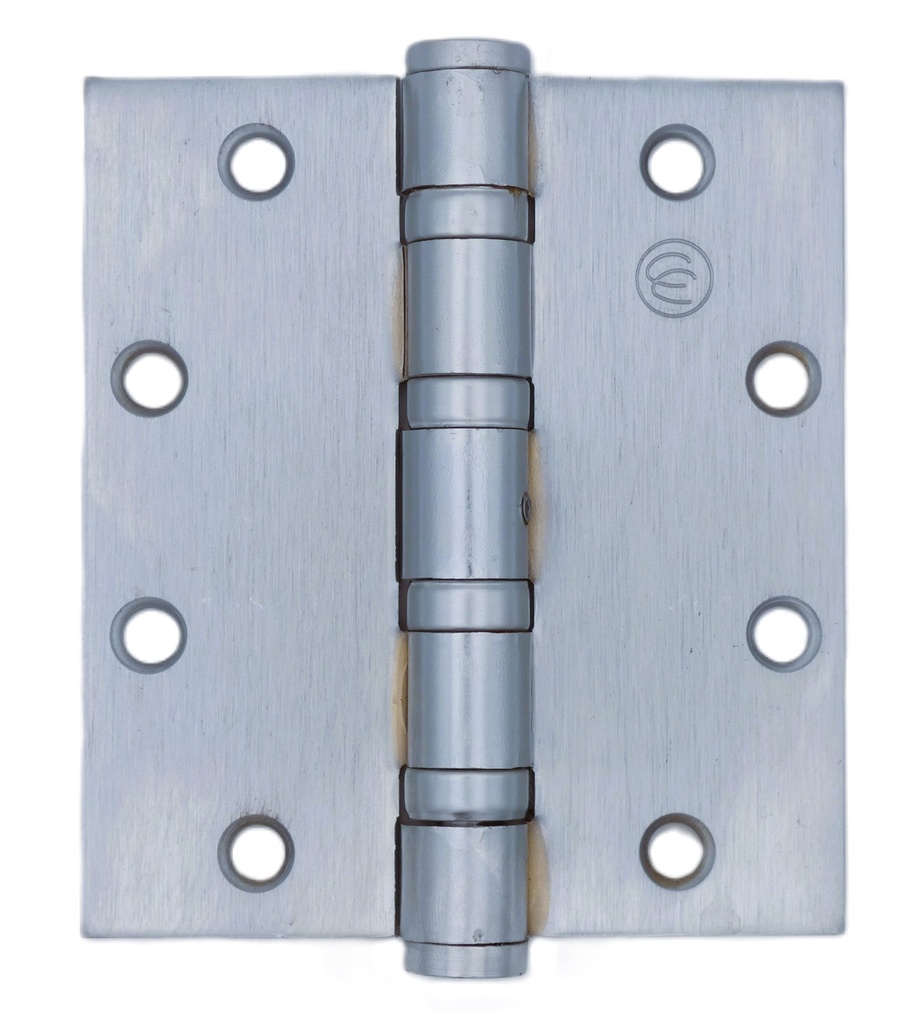

Hager ECBB1102 NRP 5" x 4.5" Heavy Weight Ball Bearing Hinge – US26D
The Hager ECBB1102 NRP 5" x 4.5" is a premier heavy-weight full mortise hinge designed for the most demanding commercial environments. With an increased 5-inch height and a robust .188 gauge thickness, this hinge provides superior vertical stability and weight distribution for oversized or exceptionally heavy doors. Finished in US26D Satin Chrome, it offers a sleek, professional look that stands up to the rigors of high-frequency service in schools, hospitals, and industrial facilities.
Maximum Security with Non-Removable Pin (NRP)
Security is the top priority for outward-swinging doors where the hinge barrel is exposed to the exterior. The NRP (Non-Removable Pin) feature incorporates a hidden set screw within the hinge barrel that is only accessible when the door is open. This prevents intruders from tapping out the hinge pin from the outside to remove the door leaf. By installing the Hager ECBB1102 NRP, you are investing in enhanced security that protects against forced entry and hinge manipulation.
Engineered for Performance and Durability
Equipped with four ball bearings, this heavy-duty steel hinge ensures nearly frictionless operation, preventing door sag and reducing maintenance costs. The 5-knuckle design and high-strength steel construction meet ANSI A8111 standards, ensuring industrial-grade reliability. This hinge is purpose-built for 1-3/4" thick doors that require a durable, long-lasting solution for constant daily use.
Technical Specifications
| Feature | Specification |
| Model Number | Hager ECBB1102 NRP |
| Dimensions | 5" Height x 4.5" Width (127mm x 114mm) |
| Hinge Type | Full Mortise - Heavy Weight - Ball Bearing |
| Material | Steel with Steel Pin |
| Finish | US26D (Satin Chrome) |
| Gauge (Thickness) | 0.188" |
| Bearing Count | 4 Ball Bearings |
| Security Feature | Non-Removable Pin (NRP) |
| Door Thickness | Optimized for 1-3/4" (44mm) Doors |
| Standards | ANSI A8111 Compliant |
| Pin Style | Non-rising removable pin with button tip and plug |
Installation and Fasteners
The Hager ECBB1102 is furnished with a complete set of precision fasteners to ensure a permanent and professional mount:
- All Machine Screws: 1/2" 12-24 FPHM (Standard for metal frames/doors)
- Wood Screws: 1/2 set of 1-1/4" x 12 FPHW (Standard for wood applications)
| General - US Finishes | US26D - Satin Chrome |
| Brand | Hager |
| Hinge Height | 5.0" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Steel |
| Hinge Corners | Square |
