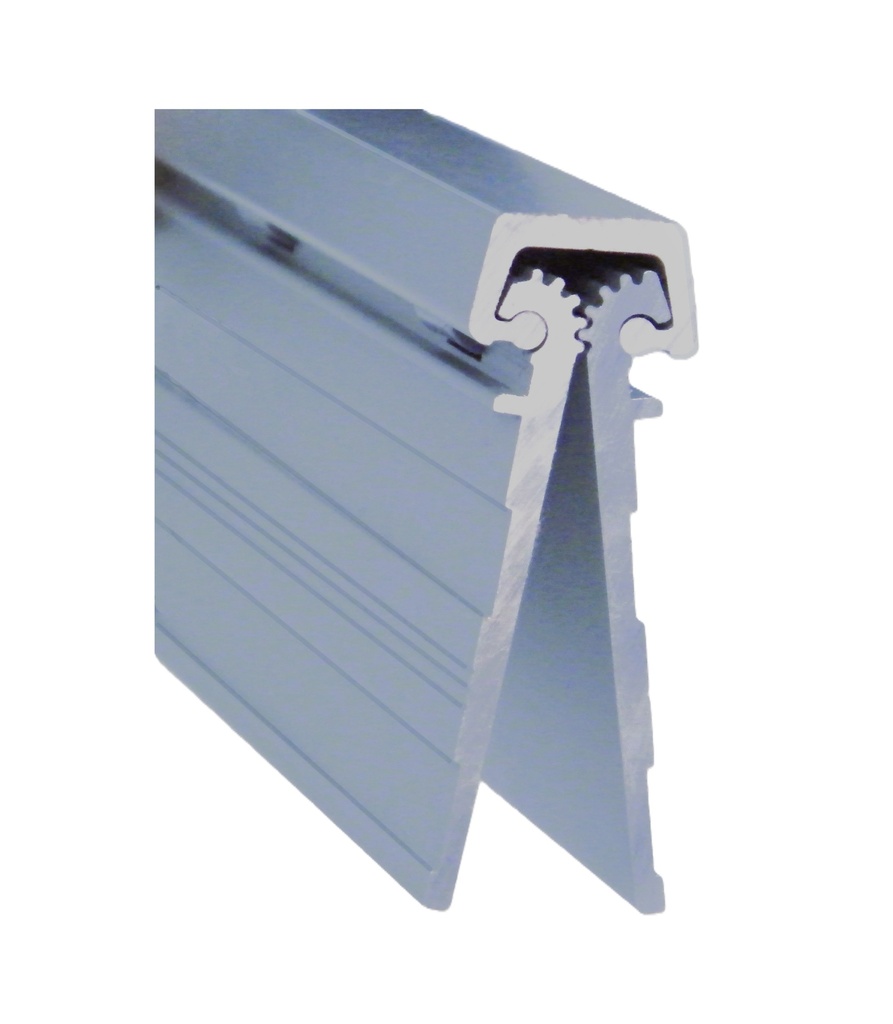

Pemko CFM95SLF-HD1 Full-Mortise Heavy Duty Short Leaf Flush Continuous Geared Hinge
The Pemko CFM95SLF-HD1 is an architectural-grade heavy-duty continuous geared hinge engineered for precision and durability. Featuring a unique Short Leaf Flush design, this hinge is specifically crafted to keep door faces perfectly aligned and seamless. It is the ideal hardware for new door applications, particularly in bifold configurations or for doors ranging from 1-3/4" to 2-1/4" thick where a completely flush appearance is required.
High-Performance & Alignment Features
- Flush Configuration: Expertly designed to align door faces perfectly, creating a smooth, cohesive appearance and eliminating unsightly gaps or offsets.
- Heavy-Duty Weight Distribution: Distributes load stress uniformly along the full length of the door and frame, preventing the sagging and misalignment common with traditional hinges.
- Advanced Gear Mechanism: The inter-meshing gears provide a massive bearing surface, ensuring a smooth, low-friction swing even under the weight of heavy commercial doors.
- Durability for High-Traffic: Constructed from robust anodized aluminum, this hinge is built to sustain significant daily use while maintaining structural integrity and precision.
- Versatile Application: While optimized for bifold doors, its short-leaf profile makes it an excellent choice for any architectural project where maintaining a flush door-to-frame relationship is a priority.
Technical Specifications
- Manufacturer: Pemko (ASSA ABLOY)
- Model: CFM95SLF-HD1 (Short Leaf Flush)
- Material: Heavy-Duty Extruded Aluminum
- Finish: Clear Anodized (corrosion-resistant and modern)
- Door Thickness: Compatible with doors 1-3/4" to 2-1/4"
- Duty Level: Heavy Duty (HD1) for high-frequency use
Pro-Tip for Bifold & Flush Installations
The Pemko CFM95SLF-HD1 is the "problem-solver" for architects and contractors who need to maintain a flat, continuous plane across multiple door sections. Because this is a full-mortise unit, it is most effectively used in new construction where the door and frame can be prepared to exact specifications. Proper installation ensures that the operating force remains low, providing an ADA-friendly opening experience despite the heavy-duty hardware.
| Length | 95 Inch |
| Brand | Pemko |
| General - US Finishes | US28 - 628/ Anodized Aluminum |
| Continuous Hinge Height | 95 Inch (8/0 Dr) |
| Continuous Hinge Grade | Heavy Duty |
| Hinge Type | Continuous Hinge, Full Mortise |
