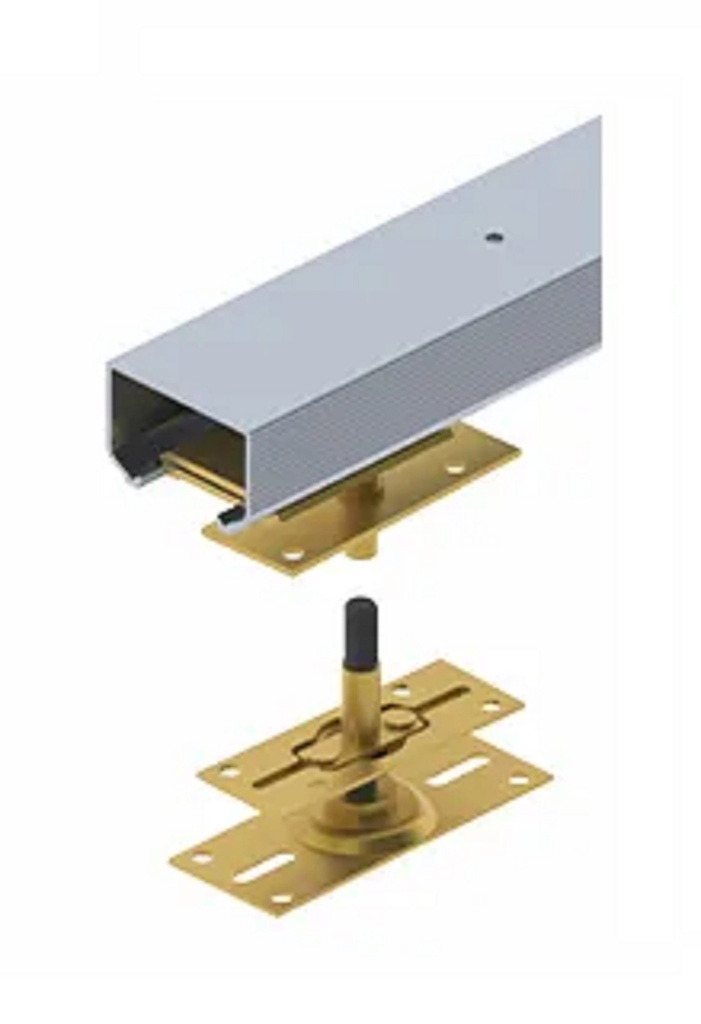

Hager 9570RC Heavy Duty Bi-Fold Sliding Door Track Set
The Hager 9570RC Bi-Fold Sliding Door Track Set is a high-capacity, commercial-grade hardware system designed for smooth, reliable operation of folding door panels in demanding environments. Engineered for versatility, this set is the premier choice for Commercial, Healthcare, Hospitality, and High-End Residential applications. Whether securing a closet, a room divider, or a storage area, the 9570RC provides the structural integrity needed for doors weighing up to 125 lbs per panel pair.
The heart of the system is the 9303HD Track, an extruded aluminum, "jump-proof" housing featuring specialized "V" shaped rails. This unique rail geometry ensures that the door rollers stay aligned and seated, providing a whisper-quiet glide and preventing the frustrating derailments common in residential-grade hardware.
Universal Compatibility & Precision Engineering
The Hager 9570RC serves as the modern, high-performance equivalent to previous Hager bi-fold series, including the 9570, 9860, 9861, 9890, and 9891. This updated "RC" version represents the pinnacle of Hager’s sliding door innovation. IMPORTANT NOTE: While the function remains the same, the internal components of the 9570RC are non-interchangeable with previous versions; for new installations or full system replacements, the 9570RC provides the most stable and durable solution available today.
Key Features
- Jump-Proof Aluminum Track: Extruded aluminum 9303HD track with "V" rails prevents door derailment.
- High Weight Capacity: Supports heavy door panels up to 125 lbs per pair (57kg).
- Versatile Door Thickness: Accommodates a wide range of doors from 1-1/8" to 1-3/4" thick.
- Complete Hardware Solution: Includes the 9805 Parts Bag for a comprehensive, out-of-the-box installation.
- Architectural Durability: Designed to meet the rigorous cycle-test requirements of office and hospitality use.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 9570RC |
| Track Type | 9303HD (Extruded Aluminum) |
| Max Door Weight | 125 lbs (57 kg) per panel pair |
| Door Thickness | 1-1/8" (28.6 mm) to 1-3/4" (44 mm) |
| Parts Included | 9805 Parts Bag (Pivots, Guides, and Snubbers) |
| Rail Style | "V" Shaped Jump-Proof Rails |
| Applications | Commercial, Healthcare, Office, Residential |
Packaged Set Selection Guide
The Hager 9570RC is available at DoorwaysPlus.com in various lengths to suit your specific opening width and door configuration:
| Set Number | Opening Width | Door Configuration |
| 9570RC-36 | 36" (3ft) | Set for two 18" doors |
| 9570RC-48 | 48" (4ft) | Set for four 12" doors |
| 9570RC-60 | 60" (5ft) | Set for four 15" doors |
| 9570RC-72 | 72" (6ft) | Set for four 18" doors |
| 9570RC-96 | 96" (8ft) | Set for four 24" doors |
Installation Note
To ensure the maximum lifespan of the 9303HD Track, ensure the header is perfectly level during installation. The 9805 Parts Bag includes all necessary bottom pivots and top guides to complete the assembly. For doors at the maximum weight capacity, ensure the floor pivots are securely anchored into the subfloor.
| Length | 36 Inch or 48 Inch or 60 Inch or 72 Inch |
| Brand | Hager |
| Trackset Type | Bifold |
