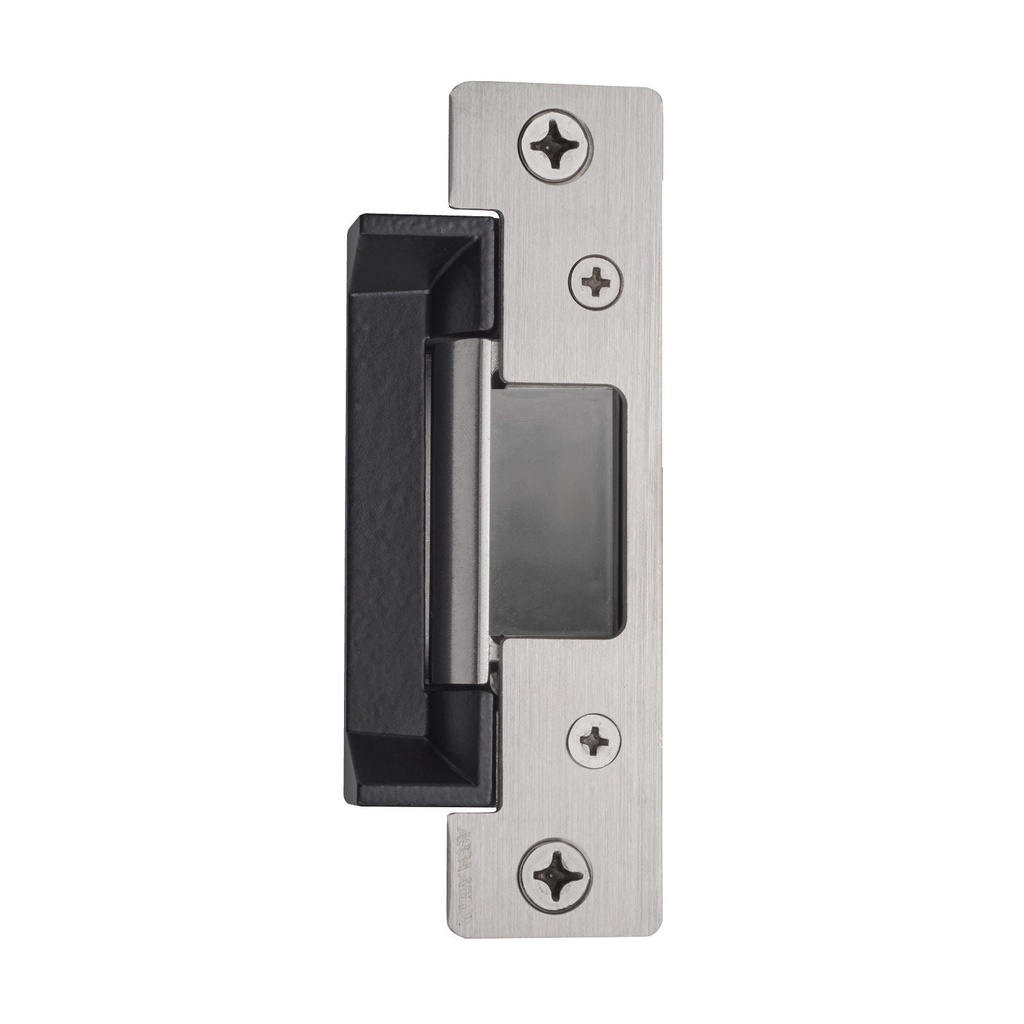

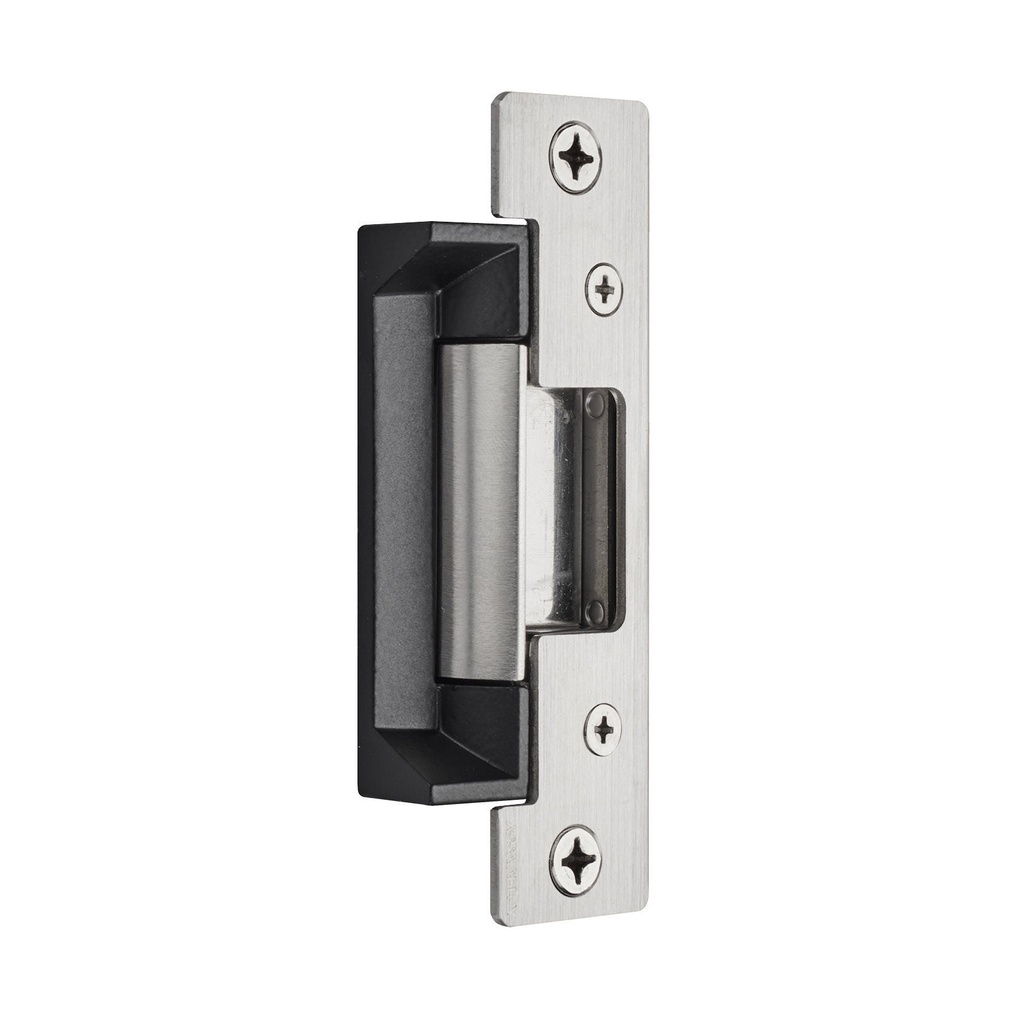

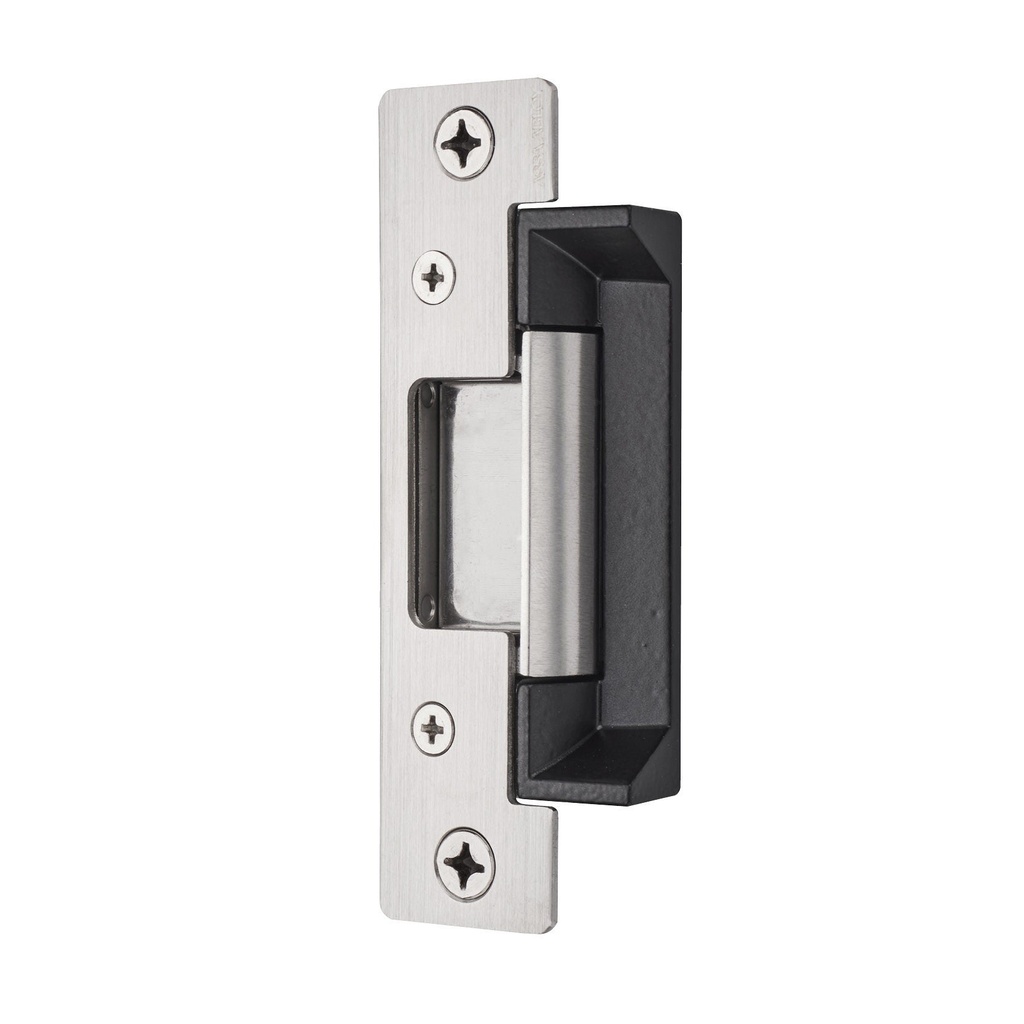

HES 5300 Series Electric Strike — 630 Satin Stainless, 12/24V Field Selectable
The HES 5300 Series Electric Strike is a compact, high-performance electric strike engineered for cylindrical locksets with latchbolts up to 5/8 inch. Designed for access control integration in commercial openings, the 5300 Series offers field-selectable fail secure / fail safe operation and accepts both 12V and 24V AC or DC power — making it one of the most versatile electric strikes available for new installations and retrofits alike. This listing is finished in 630 Satin Stainless, a durable corrosion-resistant finish well suited for high-traffic commercial and institutional environments.
Key Features & Benefits
- Field-Selectable Fail Secure / Fail Safe: Easily configured on-site to match your access control design requirements. Unit ships fail secure (locked when power is removed) — the default and code-compliant setting for most openings.
- Compact Form Factor: Sized to fit a wide range of cylindrical lockset prep cuts without major modification to the frame, simplifying installation in both new construction and retrofit projects.
- Latchbolt Compatibility: Accepts cylindrical lockset latchbolts up to 5/8 inch — compatible with the most common commercial cylindrical lock configurations.
- 12/24V AC/DC Plug-In: Dual-voltage field selection (12 or 24 VAC/VDC) provides flexibility across virtually any access control panel or power supply.
- 630 Satin Stainless Finish: Corrosion-resistant and low-maintenance, appropriate for interior and exterior commercial openings where aesthetics and durability matter.
- Fire Rating Notice: The HES 5300 Series carries a fire rating only in its factory-default fail secure configuration. Converting the strike to fail safe negates the fire rating — never specify a fail-safe electric strike on a fire-rated opening.
Typical Applications
- Office buildings and corporate access control systems
- Healthcare facilities requiring controlled entry points
- Educational and institutional buildings
- Retrofit access control upgrades on cylindrical lockset openings
- Government and municipal facilities
Important Specifier Note
When specifying electric strikes for fire-rated door assemblies, always confirm the strike remains in fail secure mode to maintain listing compliance. Consult local AHJ (Authority Having Jurisdiction) requirements before final specification. DoorwaysPlus can provide quotes on comparable electric strikes from additional preferred lines — contact our commercial hardware team for assistance.
Technical Details
| Feature | Details |
|---|---|
| Brand | HES |
| Series | 5300 Series |
| Part Type | Electric Strike |
| Finish | 630 Satin Stainless |
| Voltage | 12 or 24 VAC/VDC (field selectable) |
| Fail Mode | Field selectable Fail Secure / Fail Safe; ships Fail Secure |
| Latchbolt Capacity | Up to 5/8 inch (cylindrical locksets) |
| Lock Type Compatibility | Cylindrical locksets |
| Fire Rating | Rated in fail secure configuration only; fail safe conversion negates fire rating |
| Connection Type | Plug-in |

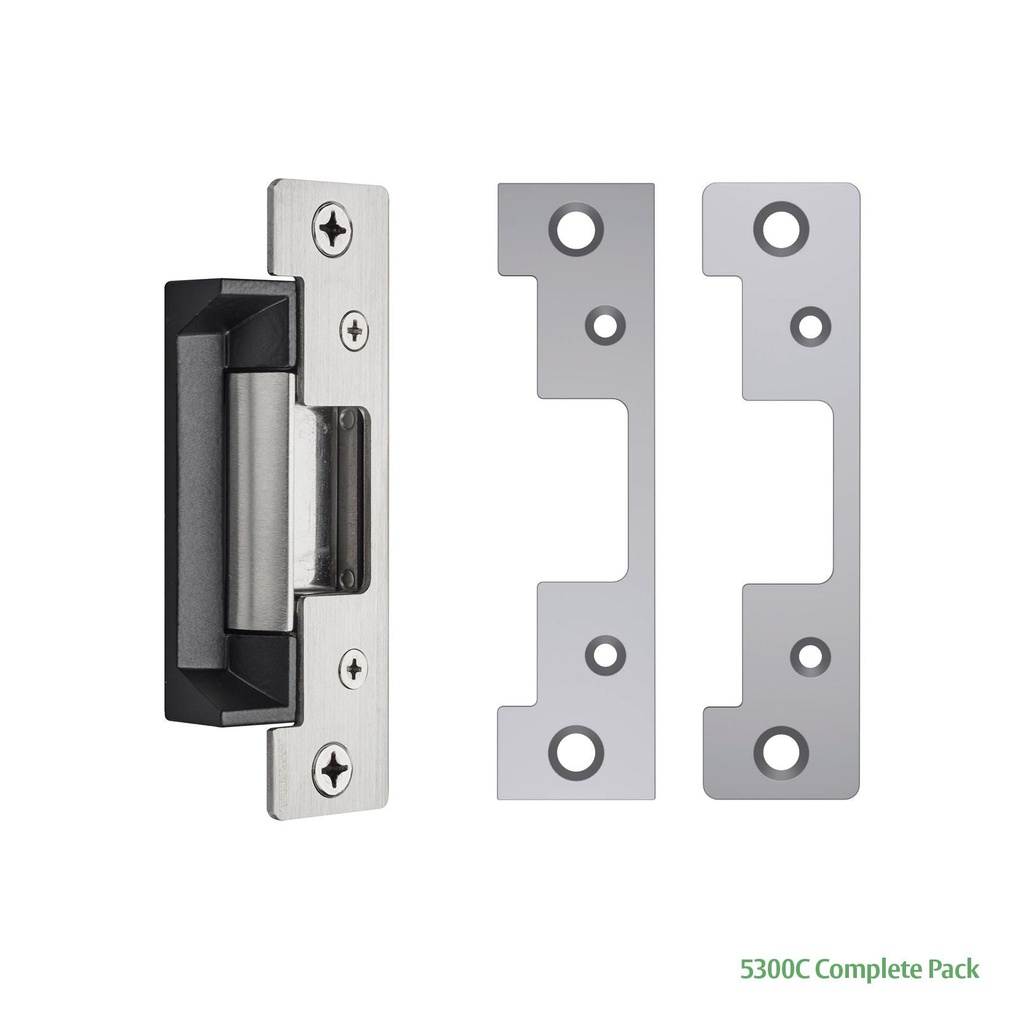

| Faceplate Options | Electric Strike Body Only or 5300C - Complete 2 Faceplates |
| Brand | HES |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Fail Safe/Fail Secure | Field Selectable |
| Fire Rated | Fire Rated |
| Voltage | 12 VDC, 24 VDC |
| Electric Strike Lock Type Use | Cylindrical - 5/8" Throw |
