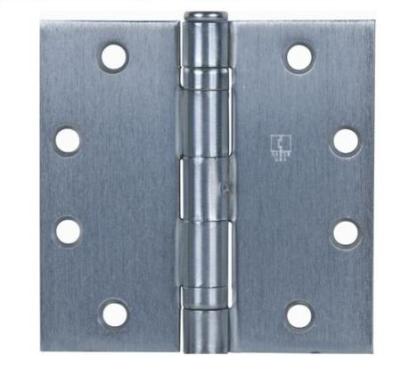

Hager BB1191 4 1/2" x 4 1/2" Full Mortise - Ball Bearing Hinge, Stainless Steel or Brass with plated finish
**** Non-Ferrous Material ****
- Furnished standard with 1/2 wood screws (1 1/4" x 12 FPHW) and All machine screws (1/2" 12-24 FPHM)
- Hinges are .134 thickness, For 1 3/4" door thickness. For use on medium weight doors or doors requiring low frequency service.
- ANSI A2112 (Brass)
- ANSI A5112* (Stainless Steel)
- Two ball bearings
- Non-rising removable pin with button tip and plug
Material:
- Brass with Stainless Steel pin (US3, US4, US10, US10B, US15, US26, US26D hinges)
- Stainless Steel with Stainless Steel pin (US32 & US32D hinges)
Hager Companies standard grade stainless steel is type 304L
Please Note: Hinges with Brass base material are not allowed on UL Fire Rated Door Openings.
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze or US32 - Polished Stainless Steel |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Stainless Steel, Brass |
| Hinge Corners | Square |
