Hager 9611CS Heavy Duty By-Pass Sliding Door Track Set

The Hager 9611CS By-Pass Trackset is a premier, industrial-grade sliding door solution designed for high-traffic environments where durability and smooth operation are mandatory. This heavy-duty system is engineered to support two large bypass doors, making it the ideal choice for Commercial, Healthcare, Hospitality, and Office applications. With a robust weight capacity of 150 lbs. per door, the 9611CS easily manages solid core wood or heavy metal doors.

At the core of this system are dual 9303HD Aluminum Tracks, which provide a stable, jump-proof foundation for the 4-wheel hangers. These precision-engineered rollers ensure a whisper-quiet glide and effortless movement, even under maximum load. This set also includes a floor channel door guide to eliminate door "swing" and two flush cup pulls for a clean, integrated finish.

Grade 1 Performance & Modern Engineering

The Hager 9611CS is a BHMA Certified Grade 1 hardware set, meaning it has been rigorously tested to exceed 100,000 cycles. It serves as the modern, high-performance equivalent to previous Hager series, including the 9675, 9676, 9611, and 9110. IMPORTANT NOTE: While the function remains the same, the internal components of the 9611CS are non-interchangeable with previous versions; for new builds or full hardware retrofits, the 9611CS represents the current industry standard for reliability.

Key Features

• Massive Weight Capacity: Supports heavy doors up to 150 lbs. (68 kg) per panel.
• Dual 9303HD Tracks: Includes two extruded aluminum heavy-duty tracks for a true bypass configuration.

• Grade 1 Certified: Meets ANSI/BHMA A156.14 requirements by exceeding 100,000 operational cycles.

• Complete Hardware Package: Includes tracks, 4-wheel hangers, floor channel guide, and flush pulls.

• Versatile Thickness: Adjustable for standard door thicknesses of 1-3/8” and 1-3/4”.


Technical Specifications

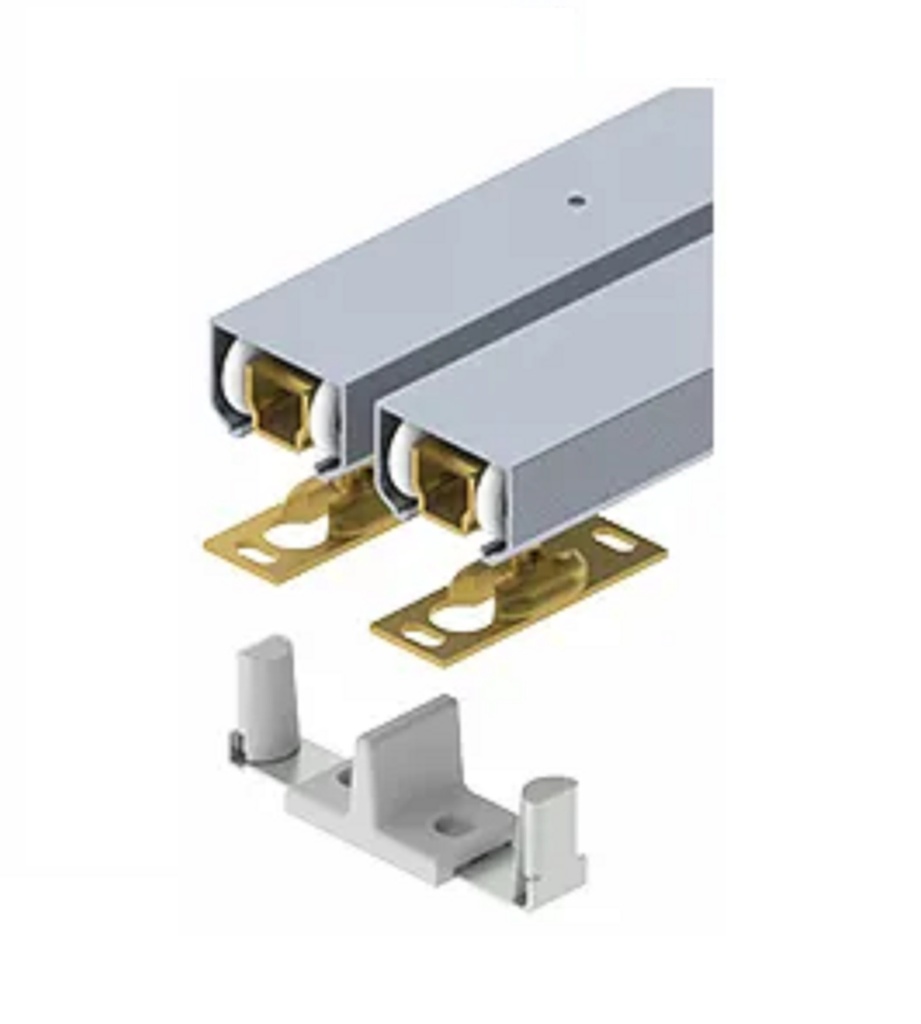

Packaged Set Contents

Every Hager 9611CS set ordered from DoorwaysPlus.com comes as a complete installation kit:

• (2) Aluminum Tracks (9303HD): High-strength rails for dual-track bypass operation.
• (4) 4-Wheel Hangers: Ball-bearing rollers for smooth, heavy-load gliding.
• (1) Floor Channel Guide: Keeps door panels aligned and prevents bottom rattling.

• (2) Flush Cup Pulls: Low-profile hardware for easy door manipulation.

• (1) 9621-LS Parts Bag: All mounting screws and technical fasteners required.
