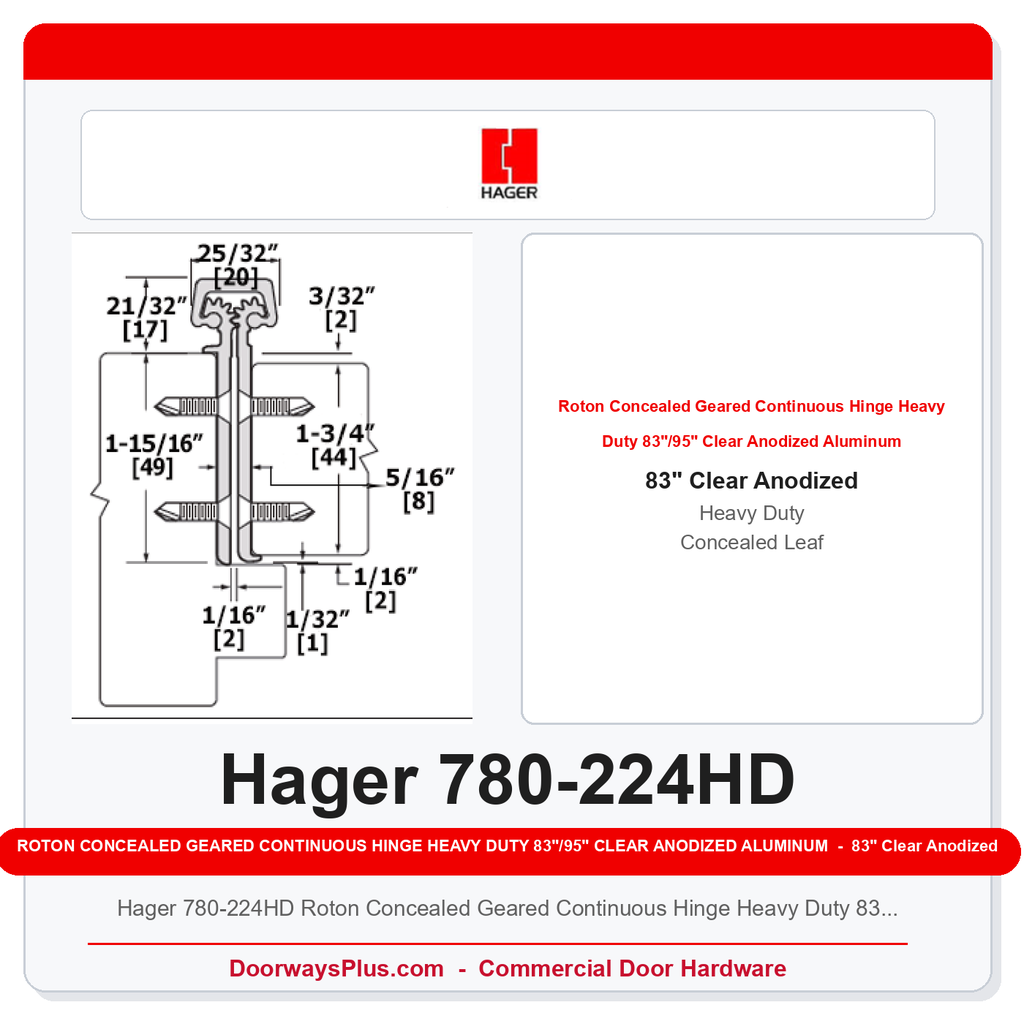

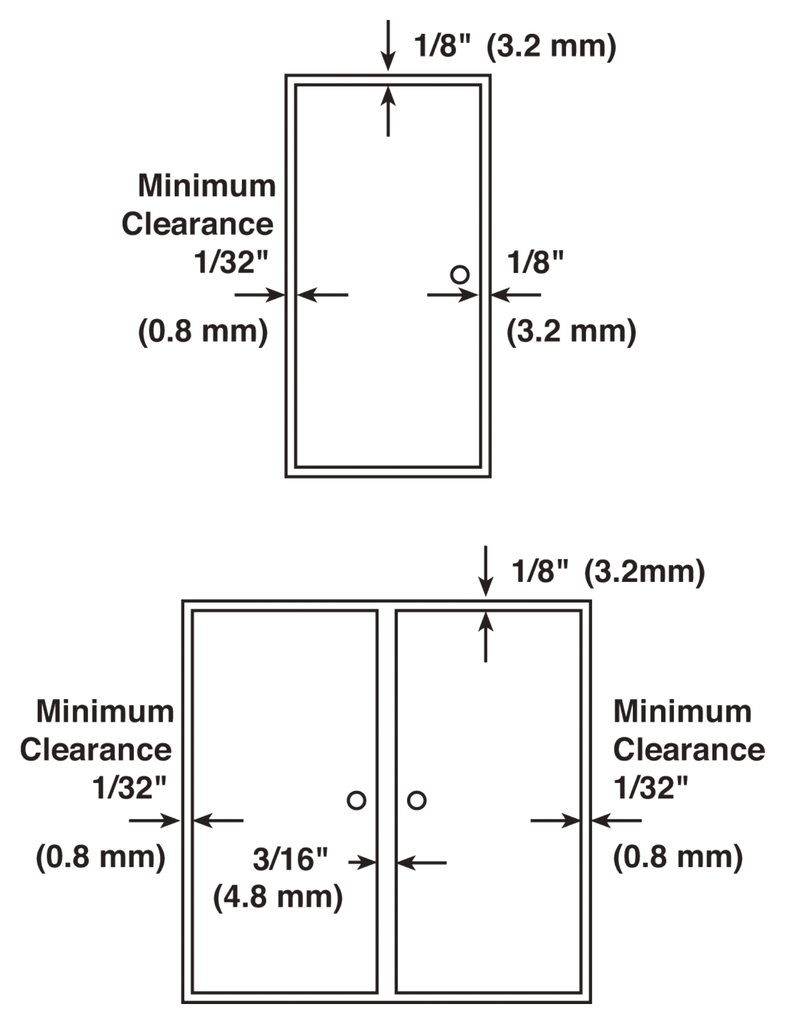

Hager 780-224HD Roton Concealed Leaf Continuous Geared Hinge — Heavy Duty, 83" & 95", Clear Anodized Aluminum

The Hager 780-224HD is a heavy-duty, concealed-leaf continuous geared hinge from the Hager Roton 780 Series — one of the most specified aluminum geared continuous hinge lines for high-traffic commercial openings. Unlike a conventional butt hinge or a piano hinge, the Roton's two full-height geared leaves interlock and rotate together on high-strength bearings, distributing door weight and closer kickback stress uniformly along the entire height of the door and frame. The result: no door sag, no binding, and no concentrated stress at individual hinge points. Available in 83" and 95" lengths, this model is finished in Clear Anodized Aluminum (US28 / 628) and is suitable for 1-3/4" doors up to 300 lbs. Certified to ANSI/BHMA A156.26 Grade 1 and UL fire listed for rated assemblies.

Institutional Grade Features & Benefits

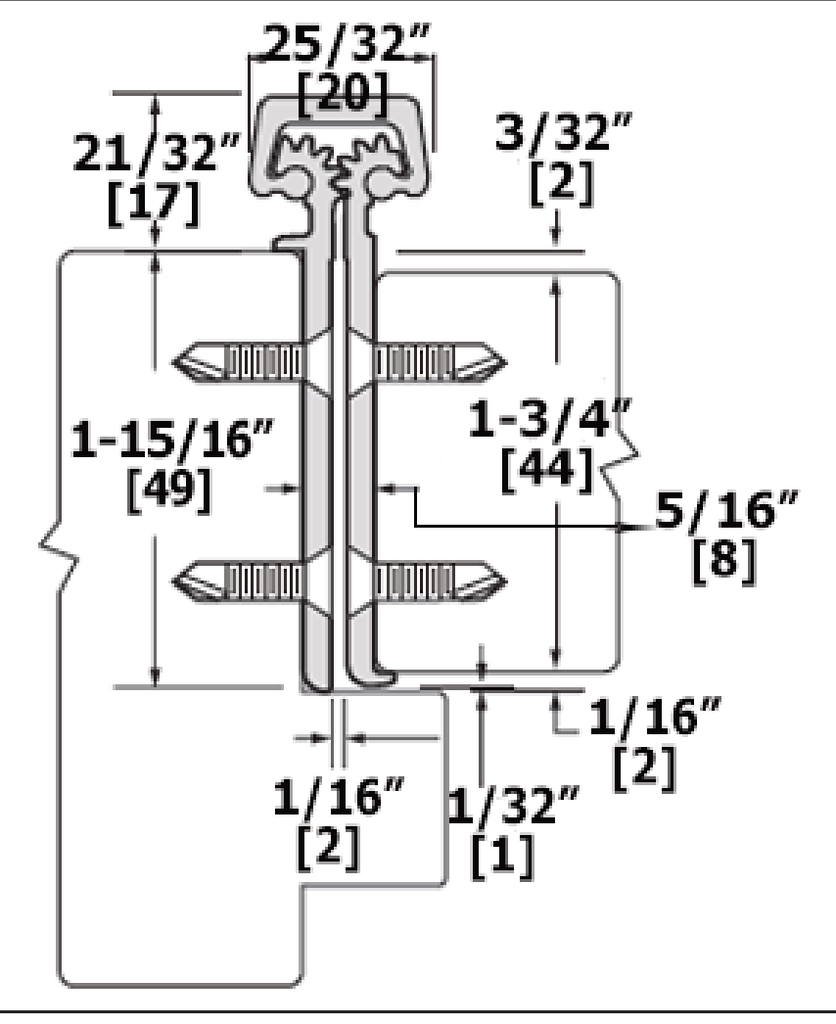

• Concealed Leaf Design: Both geared leaves are mortised into the door and frame edges, rendering the hinge mechanism invisible from the pull side when the door is closed — delivering a clean, tamper-resistant appearance ideal for schools, healthcare, and government facilities.
• Heavy Duty (HD) Rating: Engineered for the highest-cycle commercial and institutional openings, rated to support doors up to 300 lbs — handles the repeated stress of closer-equipped, high-traffic doors without performance degradation.
• Full-Length Gear Engagement: Identical geared-leaf rotation top to bottom eliminates the twisting and racking that causes conventional hinges to loosen over time; the hinge itself acts as structural reinforcement for both door and frame.
• UL Fire Listed: Suitable for use on fire-rated door assemblies; verify assembly listing against the authority having jurisdiction (AHJ) requirements.
• ANSI/BHMA A156.26 Grade 1: The highest commercial grade for continuous geared aluminum hinges — the benchmark specification for architects and facility managers.
• Clear Anodized Aluminum Finish (US28 / 628): Corrosion-resistant extruded aluminum construction with a durable anodized finish; well suited for high-humidity and high-traffic environments.
• Two Stocked Lengths — 83" and 95": Available through the HagerOnHand Express quick-ship program for 1–2 business day dispatch; non-standard lengths and electric/monitored options are available on a factory lead time.
• 1-3/4" Door Thickness: Designed for the standard commercial hollow metal and wood door thickness found in the majority of commercial and institutional openings.

Typical Applications

The 780-224HD is specified wherever high-cycle performance, fire rating compliance, and a clean concealed appearance are required simultaneously: school corridor doors, hospital patient-room doors, government and courthouse entries, detention corridors, library stacks, and high-traffic retail or hospitality back-of-house doors. The concealed leaf profile is frequently specified in lieu of exposed surface-mount continuous hinges where aesthetics, vandal resistance, or security on the pull side are priorities.
