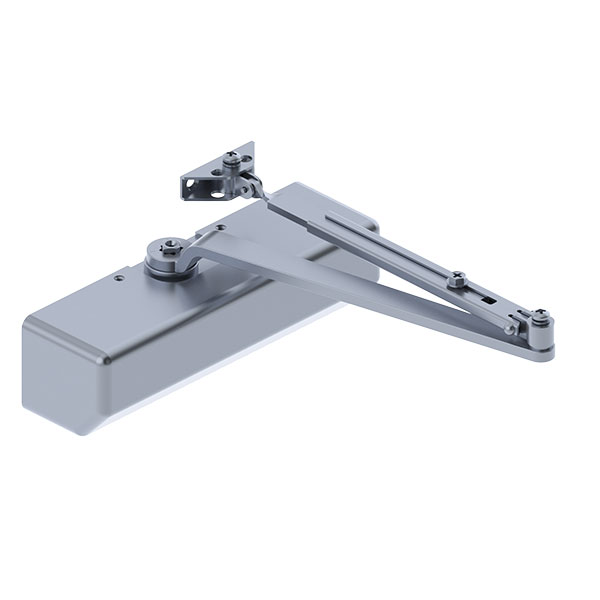

Hager 5300 Series Door Closer - Standard Tri-Pack
The Hager 5300 Series is an institutional-grade, cast iron door closer engineered for the most extreme high-traffic and high-abuse environments. This Grade 1 surface-mounted closer is the heavy-duty choice for stadiums, transit hubs, correctional facilities, and industrial warehouses. The Standard Tri-Pack configuration ensures ultimate field flexibility by including all necessary components for Regular Arm, Parallel Arm, or Top Jamb mounting in one box.
Maximum Control with Cast Iron Durability
Unlike aluminum alternatives, the Hager 5300 features a rugged cast iron body that provides superior wear resistance and thermal stability, ensuring consistent closing speeds even in fluctuating temperatures. It is fully adjustable from spring size 1 to 6, allowing it to meet ADA barrier-free requirements for interior doors while providing enough power to close heavy exterior doors against high wind loads.
Advanced Valve Adjustments and Longevity
Precision control is managed through independent, non-critical valves for Sweep, Latch, and Backcheck. The integrated Backcheck valve acts as a shock absorber, protecting the door and the wall from damage during forceful opening cycles. Tested to exceed 2 million cycles, this closer is designed for a lifetime of service. To prevent tampering and ensure a professional aesthetic, it features a full plastic cover and is installed with high-strength thru bolts for a permanent, sag-free attachment to the door.
Technical Specifications
| Feature | Specification |
| Series | Hager 5300 Series |
| Grade | ANSI/BHMA A156.4 Grade 1 (Extra Heavy Duty) |
| Body Material | Cast Iron |
| Mounting | Tri-Pack (Regular, Parallel, or Top Jamb) |
| Spring Size | Adjustable 1 - 6 (ADA Compliant) |
| Adjustments | Sweep, Latch, and Backcheck (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Handing | Non-Handed (Fully Reversible) |
| Warranty | 30-Year Limited Warranty |
Standards & Compliance
- Life Safety: UL/cUL Listed for use on fire-rated doors; compliant with NFPA 80.
- Accessibility: Meets ADA and ANSI A117.1 standards for easy-to-open doors.
- Environmental: Heavy-duty cast iron construction is ideal for demanding exterior applications.
- Institutional Security: Concealed adjustment valves and thru-bolt (sex bolt) mounting prevent unauthorized hardware tampering and structural failure.
Key Product Highlights
- Cast Iron Performance: The gold standard for durability, offering superior strength and longevity compared to aluminum closers.
- Universal Tri-Pack: One product covers three common mounting applications, reducing ordering errors and inventory needs.
- Extreme Duty Cycle: Engineered to survive over 2,000,000 operations in the harshest commercial conditions.
- All-Weather Reliability: Cast iron construction maintains consistent fluid viscosity for predictable door control in all seasons.
| General - US Finishes | 689 - Spray Alumimun or 693 - Spray Black or 695 - Spray Dark Bronze or 696 - Spray Gold |
| Brand | Hager |
| Closer Arm Type | Tri Pack - Reg/Par Arm |
| Series | Hager - 5300 Series |
| Hold Open | Non-Hold Open |

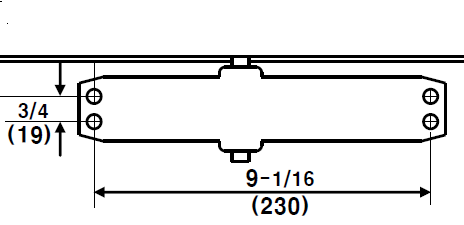

| Closer Body Hole Pattern | 9 1/16" x 3/4" |
