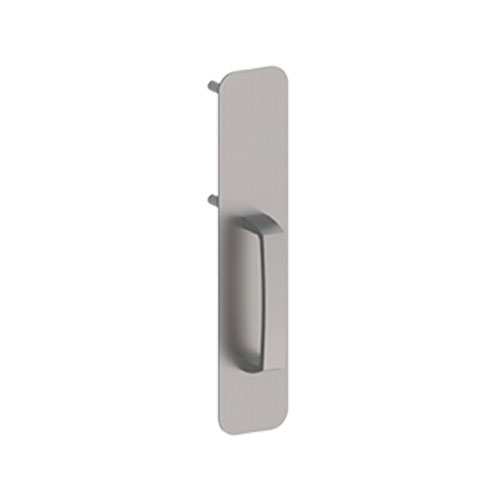

Hager 45PD Exit Trim - Dummy Pull Handle
The Hager 45PD is a heavy-duty, non-functioning exterior pull designed to coordinate with the Hager 4500 Series exit devices. As a Dummy Pull Handle, this hardware does not feature a moving lever or a locking cylinder. Instead, it provides a rugged, ergonomic grip for manually pulling a door open. It is the ideal architectural solution for the inactive leaf of a pair of doors or for main entrances where the exit device is frequently dogged down to allow free-flowing pedestrian traffic.
Built for High-Traffic Durability
Engineered to withstand the constant physical stress of commercial environments, the 45PD is a staple in schools, retail storefronts, and office lobbies. The pull handle is constructed from high-quality materials to prevent bending or loosening, even in high-abuse settings. Its minimalist, modern design ensures it complements various architectural styles while providing a substantial, ADA-compliant grip that is easy for all users to operate.
Secure Installation and Vandal Resistance
To ensure long-term structural integrity, the Hager 45PD is installed using a secure thru-bolt mounting system. This creates a permanent, rigid connection through the door, preventing the handle from sagging or pulling away over time. Because the trim has no moving parts or exposed keyways, it offers an inherently vandal-resistant profile, making it a low-maintenance choice for facility managers looking to combine aesthetic uniformity with institutional strength.
Technical Specifications
| Feature | Specification |
| Series | Hager 4500 Series Trim |
| Function | Dummy Pull (45PD) |
| Grade | ANSI/BHMA A156.3 Grade 1 (Extra Heavy Duty) |
| Trim Style | Pull Handle (Fixed/Rigid) |
| Compatibility | Hager 4501 RIM, 4501-FR, 4500 SVR/CVR |
| Escutcheon Dimensions | 3" x 10" (76 mm x 254 mm) |
| Projection | 2" (51 mm) |
| Handing | Non-Handed |
| Fasteners | Thru Bolts (Supplied Standard) |
Standards, Compliance & Maintenance
- Fire Safety: UL/cUL Listed for use on fire-rated doors when paired with Hager FR exit devices.
- Accessibility: Fully ADA compliant; provides a large, easy-to-grasp handle for barrier-free access.
- Corrosion Resistance: Available in durable finishes like Satin Chrome (US26D) and Satin Stainless Steel (US32D) to withstand environmental exposure.
- Rigid Mounting: The inclusion of thru bolts (sex bolts) ensures the trim remains perfectly aligned with the interior exit device chassis, reducing wear on the door prep.
Key Product Highlights
- Simplified Access: Provides a clear, intuitive "pull" point for users without the complexity of a moving lever.
- Architectural Matching: Matches the footprint and finish of the 45CE and 45NL trims for a uniform building exterior.
- Vandal-Proof Design: Fixed handle with no mechanical components to fail or be tampered with.
- Institutional Longevity: Tested to match the million-cycle performance of the Hager 4500 series panic hardware.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Brand | Hager |
| Series | Hager - 4500 Series |
| Exit Device Trim Function | Dummy |
| Trim Design | Grip Pull |
| Door Handing | Field Reversible |
