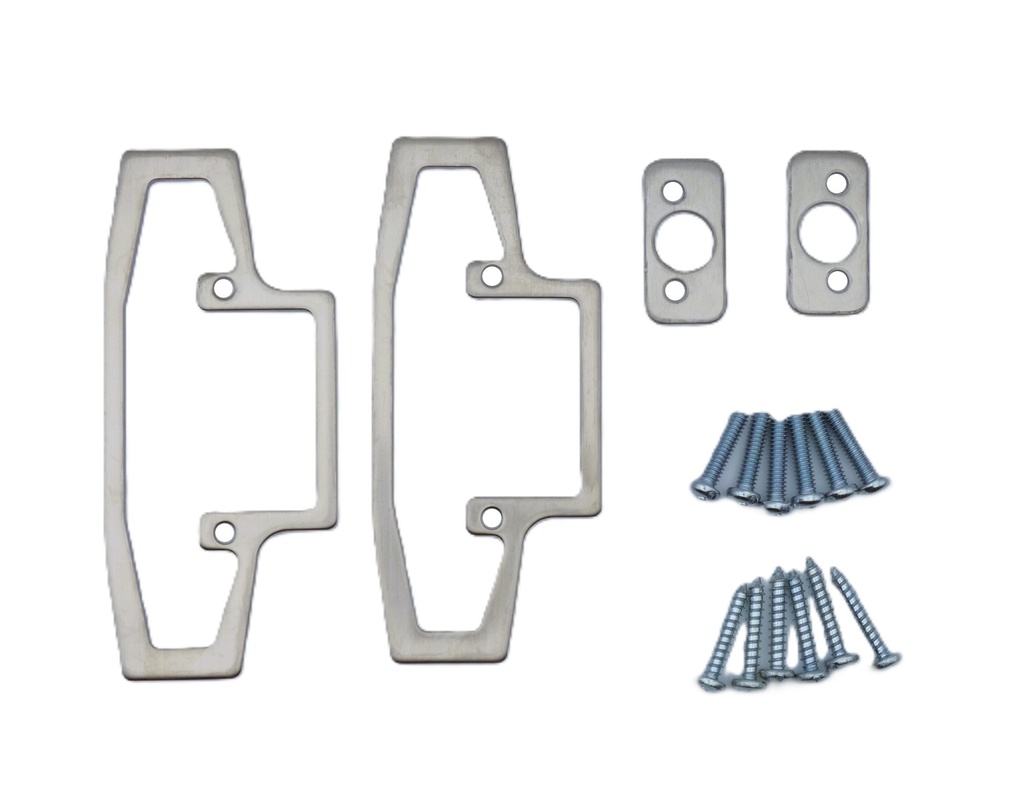

Hager 4931R Rim Device Shim Kit – 4700 Series Grade 1 Accessory
The Hager 4931R Rim Device Shim Kit is a specialized hardware solution designed to ensure the proper installation of Hager 4700 Series Grade 1 Rim Exit Devices. This kit is essential for architectural openings where surface irregularities, such as glass bead kits or decorative moldings, would otherwise interfere with the flat mounting of the exit device or panic bar.
Constructed from durable Steel, these shims provide a rigid, stable base that maintains the structural integrity and fire-rating of the door hardware. By lifting the device away from the door surface by 1/8", the 4931R allows for a seamless installation without the need for field-modifying the door's trim or glazing beads.
Key Features & Benefits
- Interference Solution: Specifically engineered to bypass glass beads, molding, or trim that prevents a flush mount for the exit device.
- Grade 1 Durability: Made from high-strength steel to match the heavy-duty performance standards of the Hager 4700 Series.
- Complete Package: Includes all necessary lengthened fasteners to account for the additional shim thickness, ensuring a secure grip.
- Finish Matching: Available in multiple architectural finishes to match your existing Rim Exit Device and door hardware.
- Easy Installation: The pre-punched hole patterns align perfectly with the 4931R mounting footprint for a fast, professional setup.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 4931R |
| Compatible Series | Hager 4700 Series Rim Exit Devices |
| Material | Heavy-Duty Steel |
| Shim Thickness | 1/8" (3 mm) per shim |
| Quantity | Two (2) Shims per Kit |
| Fasteners | Included (Appropriate for shim depth) |
| Finishes | ALM, DBZ, US3, US32D |
| Application | Commercial / Fire-Rated Openings |
Professional Installation Note
For optimal performance, ensure that the Hager 4931R shims are placed directly between the exit device chassis and the door surface. Using these genuine Hager parts ensures that your Grade 1 Panic Bar remains within warranty and maintains its UL Fire Rating during emergency egress situations.
| General - US Finishes | ALM - Aluminum or US32D - Satin Stainless Steel/ 630 or DBZ - Dark Bronze or US3 - Polished Brass |
| Brand | Hager |
| Series | Hager - 4700 Series |
