Hager 47PN Night Latch Pull Trim – Grade 1 Storeroom Function for 4700 Series (Less Rim Cylinder)

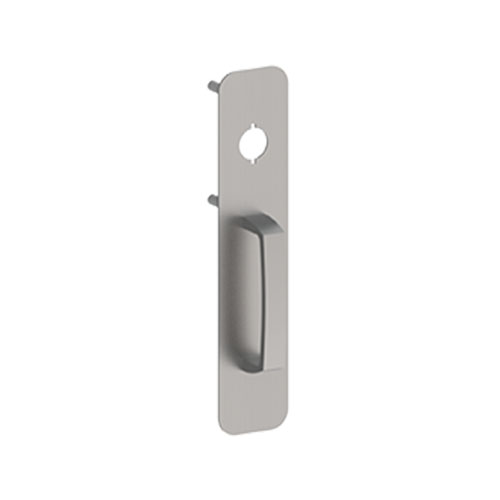

The Hager 47PN Pull Handle Trim is a high-security, standard-duty solution designed for use with Hager 4700 Series Exit Devices. This Night Latch Function (ANSI 03) trim—often referred to as Storeroom Function—features a fixed pull handle that remains rigid at all times. Entry is achieved only via a key, which retracts the latchbolt, making it the perfect choice for secure storage rooms, utility closets, and perimeter commercial doors where "always locked" security is paramount.
Built to exceed industry standards, the 47PN is BHMA Certified Grade 1, ensuring it can withstand heavy use in demanding environments. The trim features a large 3" x 11" steel escutcheon plate and a reinforced pull handle with a 5-1/2" center-to-center grip. Its rugged construction and professional aesthetic make it an ideal fit for schools, office complexes, and industrial facilities requiring reliable exterior access control.
High-Security Night Latch Engineering
The Hager 47PN is a "Less Rim Cylinder" model, designed to be paired with a Hager 3901 Rim Cylinder (sold separately). This allows facility managers to integrate the trim into existing master key systems with ease. To provide a permanent, tamper-resistant installation, the trim includes thru bolts as standard hardware, creating a high-strength connection through the door that prevents the pull plate from shifting or pulling away under heavy use.
Key Features
- Night Latch Security: Exterior pull is always rigid; key retracts the latchbolt for entry (ANSI 03).
- Grade 1 Reliability: BHMA certified for superior mechanical performance and long-term durability.
- Easy Installation: Supplied with a retaining cup specifically designed for standard 161 door preparations.
- Rugged Construction: Features a heavy-duty steel plate and a durable pull handle with a 1-3/4" projection.
- Field Reversible: Non-handed design allows for installation on both Left Hand Reverse (LHR) and Right Hand Reverse (RHR) doors.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 47PN |
| ANSI Function | 03 (Night Latch / Storeroom) |
| Certification | BHMA Certified Grade 1 (ANSI/BHMA A156.3-2014) |
| Compatibility | Hager 4700 Series Rim and Vertical Rod Devices |
| Plate Size | 3" x 11" (76 mm x 298.5 mm) |
| Pull CTC / Projection | 5-1/2" Center-to-Center / 1-3/4" Projection |
| Cylinder Type | Requires 3901 Rim Cylinder (Sold Separately) |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | 5-Year Limited Manufacturer Warranty |
Available Finish Options
Select the architectural finish at DoorwaysPlus.com that best matches your facility's design:
- Satin Stainless Steel (US32D): The industry standard for high-traffic areas and maximum corrosion resistance.
- Sprayed Aluminum (ALM): A cost-effective, professional match for standard aluminum door frames.
- Sprayed Dark Bronze (DBZ): A classic, high-durability finish for traditional commercial environments.
- Bright Brass (US3): A polished, high-contrast finish for upscale institutional entries.
| Finish with BHMA code | 689 - Painted, Aluminum or 630 - US32D Satin Stainless or 605 - US3 Polish Brass or 695 - Painted, Stat Dark Bronze |
| Brand | Hager |
| Series | Hager - 4700 Series |
| Exit Device Trim Function | Storeroom |
| Trim Design | Grip Pull |
| Door Handing | Field Reversible |
