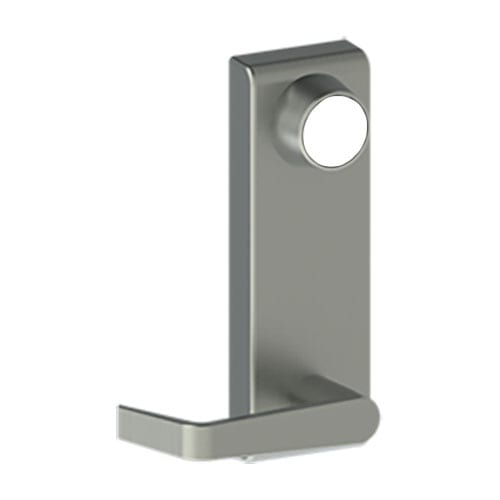

Hager 47NL Night Latch Lever – Grade 1 Escutcheon Trim for 4700 Series
The Hager 47NL Night Latch Lever is a high-security, standard-duty trim engineered specifically for use with Hager 4700 Series Exit Devices. This Night Latch Function (ANSI 03) trim—also commonly referred to as Storeroom Function—ensures that the exterior lever remains rigid and locked at all times. Entry is only granted by a key, which retracts the latchbolt, making it the premier choice for secure storage areas, utility rooms, and rear-entry commercial doors.
As a BHMA Certified Grade 1 component, the 47NL is built to withstand the rigorous demands of high-traffic institutional environments. The trim features a rugged steel body with high-strength zinc or stainless steel levers, providing superior mechanical reliability. Its ADA compliant design ensures that your facility meets all accessibility requirements without compromising on perimeter security.
Secure Access & Precision Engineering
The Hager 47NL utilizes a Cylinder Escutcheon design that requires a 3902 mortise cylinder with a standard cam (sold separately). This configuration allows for seamless integration into your existing master key system. For maximum stability on 1-3/4" to 2-1/4" doors, this trim includes thru bolts as standard hardware, creating a high-strength, through-the-door connection that prevents sagging and resists tampering.
Key Features
- Night Latch Security: Exterior lever is always locked; key retracts the latchbolt for entry (ANSI 03).
- Grade 1 Performance: BHMA certified for maximum durability and long-term commercial use.
- ADA Compliant: Ergonomic lever designs meet A117.1 accessibility standards.
- Rugged Construction: Steel escutcheon body with durable zinc or stainless steel levers.
- Flexible Lever Styles: Choose from the Archer (ARC), August (AUG), or Withnell (WTN) designs.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 47NL |
| ANSI Function | 03 (Night Latch / Storeroom) |
| Certification | BHMA Certified Grade 1 (ANSI/BHMA A156.3-2014) |
| Compatibility | Hager 4700 Series Rim and Vertical Rod Devices |
| Escutcheon Size | 2-5/8" x 8" (67 mm x 203 mm) |
| Cylinder Requirements | Requires 3902 Mortise Cylinder (Sold Separately) |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | 5-Year Limited Manufacturer Warranty |
Available Finish Options
Select from professional-grade architectural finishes at DoorwaysPlus.com to match your facility:
- Satin Stainless Steel (US32D): The industry standard for corrosion resistance and durability.
- Sprayed Aluminum (ALM): Matches standard clear anodized aluminum storefront frames.
- Sprayed Dark Bronze (DBZ): A classic, professional look for traditional commercial designs.
- Matte Black (BLK): A bold, modern finish for contemporary architectural projects.
| Finish with BHMA code | 689 - Painted, Aluminum or 630 - US32D Satin Stainless or 605 - US3 Polish Brass or 693 - Painted, Black or 695 - Painted, Stat Dark Bronze |
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| Door Handing | RHR or LHR |
| Brand | Hager |
| Series | Hager - 4700 Series |
| Exit Device Trim Function | Storeroom |
