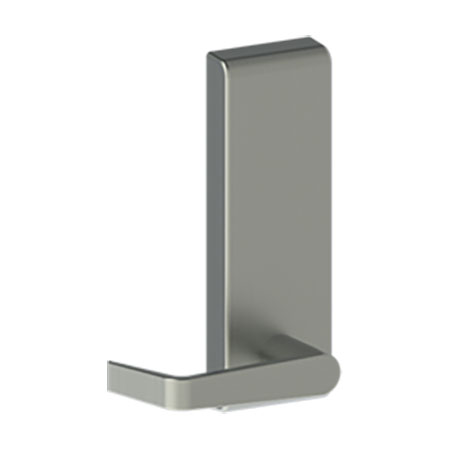

Hager 47DT Dummy Escutcheon Lever – Grade 1 Trim for 4700 Series
The Hager 47DT Dummy Escutcheon Lever is a heavy-duty, non-functional trim designed to perfectly complement the Hager 4700 Series Exit Devices. This Dummy Function (ANSI 02) trim features a rigid, non-turning lever that serves as a pull handle when the exit device is dogged down or for doors that only require a push/pull operation. It is the ideal architectural solution for maintaining a uniform look across all door openings in schools, office buildings, and commercial facilities.
As a BHMA Certified Grade 1 component, the 47DT is built with a rugged steel body and high-strength zinc handles (stainless steel for the US32D finish). Its ADA compliant lever design ensures that your facility remains accessible and user-friendly, providing a comfortable grip and sleek professional appearance without the complexities of a locking mechanism.
Aesthetic Uniformity & Industrial Strength
The Hager 47DT is designed for "dummy" applications, meaning it has no mechanical connection to the latching mechanism of the exit device. It is used primarily as a decorative pull to match active locking trims like the Hager 47CE or Hager 47NL. To ensure a permanent and stable mount, this trim is installed using thru bolts, providing a high-strength through-the-door connection that prevents the escutcheon from shifting or sagging over time.
Key Features
- Dummy Pull Function: Rigid lever acts as a pull handle (ANSI 02); ideal for dogged-down exit devices.
- Grade 1 Reliability: BHMA certified to meet the highest standards for commercial hardware durability.
- ADA Compliant: Ergonomic lever design complies with A117.1 accessibility standards.
- Seamless Integration: Matches the footprint and styling of all Hager 4700 Series functional trims.
- Durable Construction: Built with a steel body and zinc or stainless steel levers for long-term use.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 47DT |
| ANSI Function | 02 (Dummy Trim / Pull) |
| Certification | BHMA Certified Grade 1 (ANSI/BHMA A156.3-2014) |
| Compatibility | Hager 4700 Series Rim and Vertical Rod Devices |
| Escutcheon Size | 2-5/8" x 8" (67 mm x 203 mm) |
| Door Thickness | Standard 1-3/4" (Fits 1-5/8" to 2-1/4" doors) |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | 5-Year Limited Manufacturer Warranty |
Available Finish & Lever Options
You can customize the Hager 47DT at DoorwaysPlus.com to match your existing door hardware:

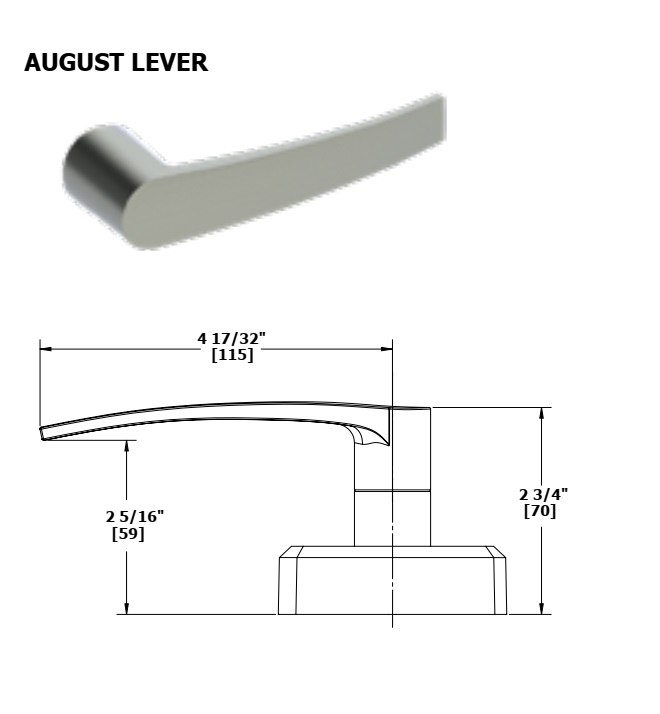

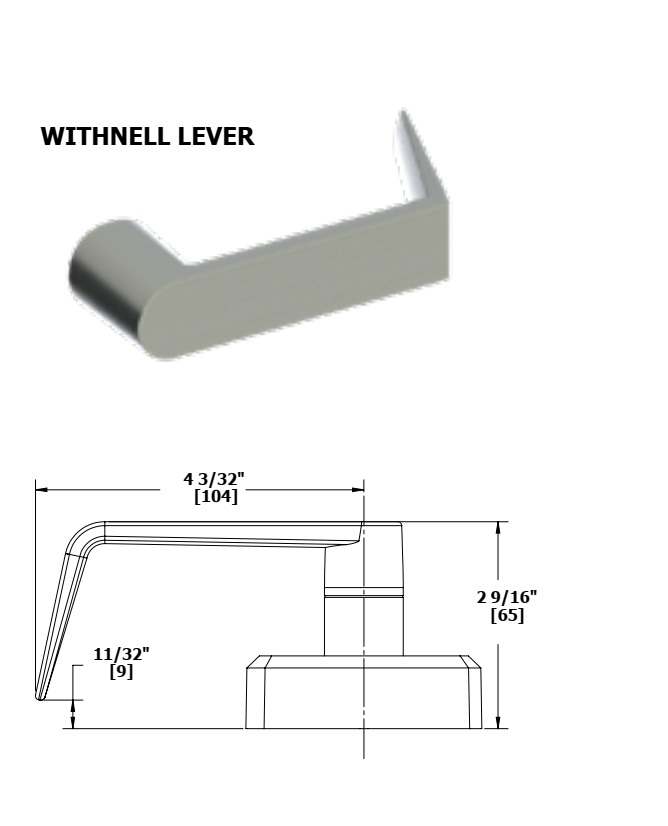

- Lever Styles: Choose from the Archer (ARC), August (AUG), or Withnell (WTN) designs.
- Finishes: Available in Satin Stainless Steel (US32D), Sprayed Aluminum (ALM), Dark Bronze (DBZ), and Bright Brass (US3).
- Handing: Please specify Left Hand Reverse (LHR) or Right Hand Reverse (RHR) to ensure the lever is oriented correctly for your door swing.
| Finish with BHMA code | 689 - Painted, Aluminum or 630 - US32D Satin Stainless or 605 - US3 Polish Brass or 693 - Painted, Black or 695 - Painted, Stat Dark Bronze |
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| Door Handing | RHR or LHR |
| Brand | Hager |
| Series | Hager - 4700 Series |
| Exit Device Trim Function | Dummy |
