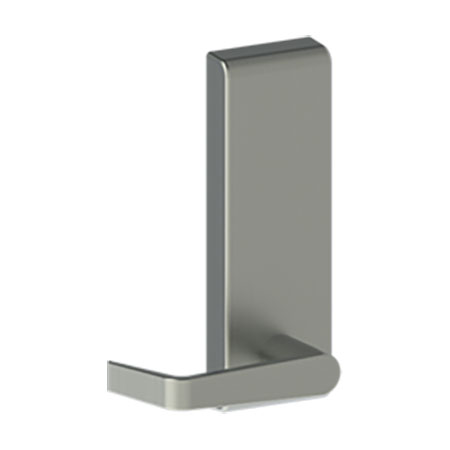

Hager 47BE Blank Escutcheon Lever – Grade 1 Passage Trim for 4700 Series
The Hager 47BE Blank Escutcheon Lever is a high-performance, standard-duty trim designed for seamless integration with the Hager 4700 Series Exit Devices. This Passage Function (ANSI 14) trim is engineered for doors where entry is always required without the use of a key, making it the ideal solution for high-traffic commercial, institutional, and industrial environments.
Built to the highest industry standards, this trim is BHMA Certified Grade 1, ensuring it can withstand the rigors of heavy daily use. The 47BE series features a durable steel body paired with high-strength zinc handles (or stainless steel for the US32D finish). Its ADA compliant design ensures that your facility remains accessible to all users while maintaining the professional aesthetic of the 4700 Series hardware family.
Performance & Design Features
- Always Operable: The Blank Escutcheon (BE) design provides constant passage access, ensuring smooth traffic flow in non-secure areas.
- Versatile Lever Styles: Available in three distinct architectural designs—Archer (ARC), August (AUG), and Withnell (WTN)—to match your building's existing style.
- Rugged Construction: Features a steel body for long-term structural integrity and a zinc lever for a comfortable, reliable grip.
- Thru-Bolt Security: Includes thru bolts as standard to provide a secure, through-the-door connection that prevents the trim from loosening or sagging over time.
- Weather Resistant: Available in multiple architectural finishes, including a Satin Stainless Steel (US32D) option for maximum corrosion resistance.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 47BE |
| ANSI Function | 14 (Always Operable / Passage) |
| Certification | BHMA Certified Grade 1 (ANSI/BHMA A156.3-2014) |
| Compatibility | Hager 4700 Series Rim and Vertical Rod Devices |
| Escutcheon Size | 2-5/8" x 8" (67 mm x 203 mm) |
| Door Thickness | Standard 1-3/4" (Fits 1-5/8" to 2-1/4" doors) |
| ADA Compliance | Meets A117.1 Accessibility Code |
| Warranty | 5-Year Limited Manufacturer Warranty |
Available Lever & Finish Options
Customize your Hager 47BE Trim at DoorwaysPlus.com to meet your specific architectural requirements:
- Lever Designs: Choose from the sleek Archer, the curved August, or the classic Withnell with a return to the door.
- Finishes: Available in Satin Stainless Steel (US32D), Sprayed Aluminum (ALM), Dark Bronze (DBZ), Bright Brass (US3), and Black (BLK).
- Handing: Must specify Left Hand Reverse (LHR) or Right Hand Reverse (RHR) at the time of order to ensure proper lever orientation.
| Finish with BHMA code | 689 - Painted, Aluminum or 630 - US32D Satin Stainless or 605 - US3 Polish Brass or 693 - Painted, Black or 695 - Painted, Stat Dark Bronze |
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| Door Handing | RHR or LHR |
| Brand | Hager |
| Series | Hager - 4700 Series |
| Exit Device Trim Function | Passage |
