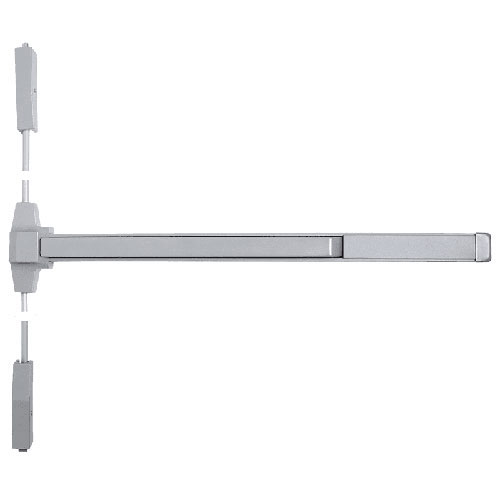

Hager 4701 SVR FR Exit Device – Grade 1 Fire Rated SVR for 4' x 8' Doors
The Hager 4701 SVR FR Exit Device (48" x 96") is a heavy-duty, fire-rated security solution engineered for the largest commercial door openings. Designed for doors up to 4 feet wide and 8 feet tall, this Surface Vertical Rod (SVR) system provides the structural stability and multi-point latching necessary for oversized fire-labeled entryways in hospitals, schools, and large retail complexes.
As a BHMA Certified Grade 1 device, the 4701 SVR FR represents the highest industry benchmark for mechanical durability. It is UL/cUL Listed for up to 3 hours on fire doors, serving as a critical life-safety component that ensures a secure seal against smoke and flames. This model is Less Dogging (LD) as mandated by fire codes, ensuring the vertical rods are always engaged and the door is latched at all times to maintain the fire barrier's integrity.
Engineered for Oversized Fire-Rated Openings
Large fire doors are susceptible to heat-related warping and pressure; the Hager 4701 SVR FR mitigates this risk by anchoring the door at both the top strike and the floor. The stainless steel Pullman-style latchbolts provide a smooth, automatic dead-latching action that secures the door instantly upon closing. To handle the increased weight and leverage of a 4-foot wide by 8-foot tall fire door, this device ships standard with thru bolts, providing a high-strength through-the-door connection that ensures the hardware remains permanently aligned and secure.
Key Features
- Maximum Door Optimization: Sized specifically for 48" wide and 96" tall fire-rated openings.
- Fire-Rated Compliance: UL Listed for use on fire-labeled door assemblies up to 3 hours.
- Grade 1 Performance: BHMA certified to withstand heavy commercial use and high-frequency cycles.
- Multi-Point Security: Top and bottom latching points prevent door prying and heat-related warping.
- Non-Handed Design: Reversible in the field for use on both left and right-hand swinging fire doors.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 4701 (SVR-FR-48-96) |
| Certification | BHMA Certified Grade 1 |
| Fire Rating | UL Listed Fire Rated (FR) |
| Door Dimensions | 4'0" Wide x 8'0" Tall (48" x 96") |
| Dogging Type | Less Dogging (LD) for Fire Rated Openings |
| Latchbolt | Stainless Steel Pullman Style (Top/Bottom) |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | 5-Year Limited Manufacturer Warranty |
Available Finish Options
Available at DoorwaysPlus.com, the Hager 4701 SVR FR is offered in several architectural finishes to match your facility's design:
- Satin Stainless Steel (US32D): The industry standard for fire-rated durability and low maintenance.
- Sprayed Aluminum (ALM): A modern, professional look for contemporary office and school frames.
- Sprayed Dark Bronze (DBZ): An elegant, classic choice for traditional commercial storefronts.
- Matte Black (BLK): A bold, high-contrast finish for high-end architectural designs.
Professional Installation Note
For 8-foot wide fire doors featuring glass beads or decorative molding, DoorwaysPlus.com recommends the Hager 4931S Surface Vertical Rod Shim Kit. This ensures that the rods and chassis are mounted on a level surface, preventing mechanical binding and ensuring the device functions perfectly during an emergency.
| Finish with BHMA code | 689 - Painted, Aluminum or 630 - US32D Satin Stainless or 605 - US3 Polish Brass or 693 - Painted, Black or 695 - Painted, Stat Dark Bronze |
| Brand | Hager |
| Series | Hager - 4700 Series |
| Exit Device Type | SVR Exit Device |
| Exit Device Fire Rating | Fire Rated Door |
| Door Opening Width | 48 Inches |
| Door Height | 8'0" Dr Ht |
