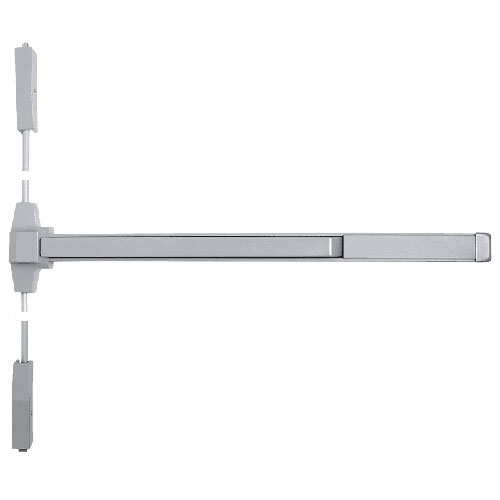

Hager 4701 SVR FR Exit Device – Grade 1 Fire Rated Surface Vertical Rod Panic Bar
The Hager 4701 SVR FR Exit Device is a high-performance, standard-duty security solution engineered for environments where fire safety and reliable egress are paramount. Designed for use on 3'0" x 7'0" doors, this Fire Rated (FR) model provides multi-point latching for double door applications or single doors requiring extra security.
As a BHMA Certified Grade 1 device, it is built to withstand the rigors of light-to-medium commercial traffic. The 4701 SVR FR is UL/cUL Listed for up to 1-1/2 hours on "B" labeled fire doors, ensuring your facility remains compliant with strict fire and life safety codes. Unlike panic-rated versions, fire-rated devices are Less Dogging (LD) to maintain the fire barrier's integrity at all times.
Performance & Security Features
- Fire-Rated Safety: Specifically designed for fire-labeled openings, providing a secure seal during emergency events.
- Multi-Point Latching: Includes both a top Pullman-type latch and a bottom bolt to prevent door warping and enhance security.
- Grade 1 Reliability: Tested to exceed industry standards for cycle life and mechanical durability.
- Thru-Bolt Security: Includes thru bolts, wood screws, and machine screws as standard to ensure a rigid, permanent mount to the door.
- Field Sizeable: The 36" device can be field cut down to accommodate doors as narrow as 30".
Technical Specifications
| Feature | Specification |
| Model Number | Hager 4701 (SVR FR) |
| Certification | BHMA Certified Grade 1 |
| Fire Rating | UL/cUL Listed (Up to 1.5 Hours) |
| Door Dimensions | 3'0" Width x 7'0" Height (Standard) |
| Dogging Type | Less Dogging (LD) for Fire Rated Openings |
| Latch Type | Stainless Steel Pullman (Top/Bottom) |
| Stile Width | 4-1/2" Minimum (Single Door) |
| Warranty | 5-Year Limited Manufacturer Warranty |
Available Finish Options
Choose from professional architectural finishes available at DoorwaysPlus.com to complement your facility's design:
- Satin Stainless Steel (US32D): Superior corrosion resistance for high-traffic environments.
- Sprayed Aluminum (ALM): A versatile, modern look for standard commercial frames.
- Sprayed Dark Bronze (DBZ): A classic, professional finish for storefront applications.
- Polished Brass (US3): Traditional high-luster gold aesthetic for upscale interiors.
Professional Installation Note
For doors with glass bead kits or decorative moldings that may obstruct the rod path, it is recommended to use the Hager 4931S Surface Vertical Rod Shim Kit. This provides the necessary 1/8" lift for the main chassis and rod guides to ensure smooth, unobstructed operation.
| Finish with BHMA code | 689 - Painted, Aluminum or 630 - US32D Satin Stainless or 605 - US3 Polish Brass or 693 - Painted, Black or 695 - Painted, Stat Dark Bronze |
| Brand | Hager |
| Series | Hager - 4700 Series |
| Exit Device Type | SVR Exit Device |
| Exit Device Fire Rating | Fire Rated Door |
| Door Opening Width | 36 Inches |
| Door Height | 7'0" Dr Ht |
