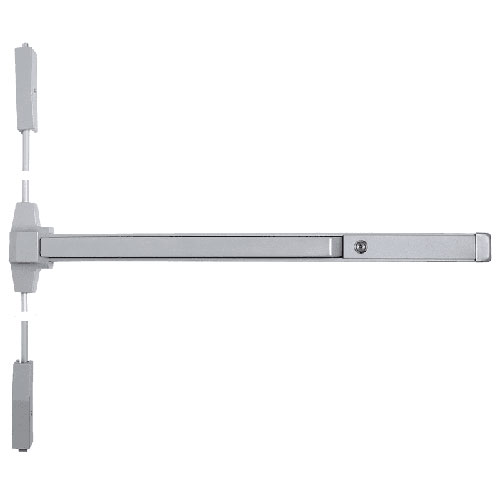

Hager 4701 SVR Exit Device – Grade 1 Surface Vertical Rod Panic Bar
The Hager 4701 SVR Exit Device is a high-performance, standard-duty solution designed specifically for double door applications and single doors where multi-point latching is preferred. Engineered for light commercial use, the 4700 Series provides a seamless blend of efficiency and architectural aesthetics, making it a top choice for office buildings, retail storefronts, and small businesses.
As a BHMA Certified Grade 1 exit device, the 4701 SVR meets the industry's highest standards for durability and cycle testing. This Surface Vertical Rod configuration provides secure latching at both the top and bottom of the door, ensuring maximum protection against forced entry while maintaining effortless egress for building occupants.
Performance & Security Features
- Multi-Point Latching: Securely latches at the top strike and bottom floor strike to prevent door prying and warping.
- Grade 1 Durability: BHMA certified to handle consistent use in professional environments.
- Hex Key Dogging: Standard feature that allows the rods to be held retracted during business hours, reducing noise and mechanical wear.
- Non-Handed Design: Completely reversible in the field, simplifying installation on both left and right-hand swinging doors.
- Stainless Steel Latches: Features high-strength Pullman-style latchbolts for smooth and secure engagement.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 4701 (SVR) |
| Certification | BHMA Certified Grade 1 |
| Fire Rating | None (Panic Rated Only) |
| Door Dimensions | 3'0" Width x 7'0" Height (Standard) |
| Dogging Type | Hex Key Dogging (Standard) |
| Device Length | 36" (Field sizeable down to 30") |
| Finishes | ALM, BLK, DBZ, US3, US32D |
| Warranty | Manufacturer Standard |
Available Finish Options
To ensure your Hager 4701 SVR matches your facility's hardware schedule, DoorwaysPlus.com offers the following finishes:
- Aluminum (ALM): A clean, modern look for clear anodized aluminum frames.
- Black (BLK): A bold finish for contemporary, high-contrast designs.
- Dark Bronze (DBZ): Classic and professional, ideal for traditional commercial storefronts.
- Stainless Steel (US32D): The industry standard for long-term durability and resistance.
- Polished Brass (US3): Provides a high-end, traditional gold aesthetic.
Professional Installation Note
For doors featuring glass bead kits or decorative molding that may obstruct the vertical rods or the main chassis, DoorwaysPlus.com recommends the Hager 4931S Surface Vertical Rod Shim Kit. This ensures the hardware is mounted on a level surface for optimal rod alignment and smooth operation.
| Finish with BHMA code | 689 - Painted, Aluminum or 630 - US32D Satin Stainless or 605 - US3 Polish Brass or 693 - Painted, Black or 695 - Painted, Stat Dark Bronze |
| Brand | Hager |
| Series | Hager - 4700 Series |
| Exit Device Type | SVR Exit Device |
| Exit Device Fire Rating | Non Rated Door |
| Door Opening Width | 36 Inches |
| Door Height | 7'0" Dr Ht |
