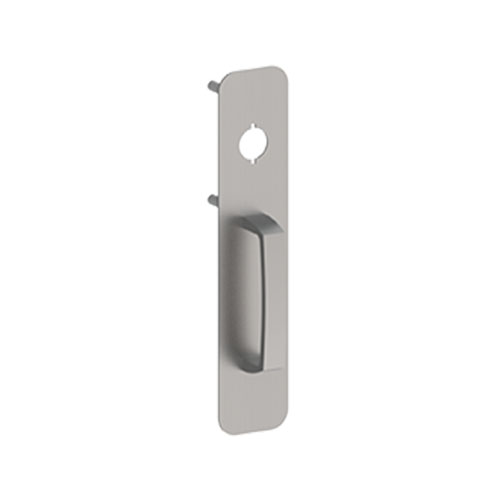

Hager 45PN Exit Trim - Storeroom Pull Handle  (Less Rim Cylinder)

The Hager 45PN is a heavy-duty, high-security exterior pull designed for use with the Hager 4500 Series exit devices. Operating as a Storeroom Function (ANSI 03), this trim ensures that the exterior grip is always rigid. Access from the outside is achieved only by inserting a key to retract the latchbolt. It is the premier choice for stairwell exits, mechanical rooms, and rear service doors where entry must be strictly regulated while maintaining an industrial-strength architectural aesthetic.

Constant Security and Night Latch Reliability

Commonly referred to as a Night Latch Pull, the 45PN is engineered for "always-locked" security. Unlike lever trims that can be left in a passage state, the 45PN requires a key for every single entry, eliminating the risk of a door being left accidentally unlocked. For facility managers, this means absolute control over sensitive areas without sacrificing life-safety compliance, as the interior panic bar always provides immediate free egress for building occupants.

Institutional Resilience and Heavy-Duty Construction

Certified to ANSI/BHMA Grade 1 standards, the Hager 45PN is built to survive the most demanding physical environments. The trim features a massive 3" x 14" escutcheon plate and a rugged pull handle designed for millions of cycles. To ensure a permanent, sag-free installation on high-traffic hollow metal or wood doors, the unit is secured using a robust thru-bolt system. This creates a rigid bond through the door leaf, preventing the hardware from loosening or shifting under the stress of 24/7 commercial use.

Technical Specifications

Standards, Compliance & Installation

• Fire Safety: UL/cUL Listed for use on fire-rated doors when paired with Hager FR fire-exit hardware.
• Vandal Resistance: The fixed pull handle and rigid escutcheon minimize moving parts, reducing potential points of failure or tampering.
• ADA Accessibility: Features an ergonomic grip and a low-profile projection that meets ADA requirements for accessible hardware.
• Secure Attachment: Utilizing thru bolts (sex bolts) is standard, ensuring the plate remains perfectly flush and properly aligned with the exit device chassis.
• Versatile Prep: Supplied with a retaining cup specifically designed for use with standard 161 door prep.

Key Product Highlights

• Maximum Entrance Security: Key-only access ensures the exterior remains locked at all times.
• Institutional Longevity: Designed to match the extreme 2-million-cycle lifespan of the Hager 4500 panic bar series.
• Architectural Finishes: Available in Satin Chrome (US26D), Satin Stainless Steel (US32D), and Dark Bronze (US10B) to coordinate with your facility's design.
• Universal Handing: Non-handed design allows for flexible installation on both left and right-hand reverse doors.

The Hager 45PN Night Latch Pull is a heavy-duty, Grade 1 exit device trim that provides secure, key-only entry. It is designed for use with Hager 4500 series rim and vertical rod devices, featuring a 3" x 14" escutcheon and a 1-3/4" projection.
