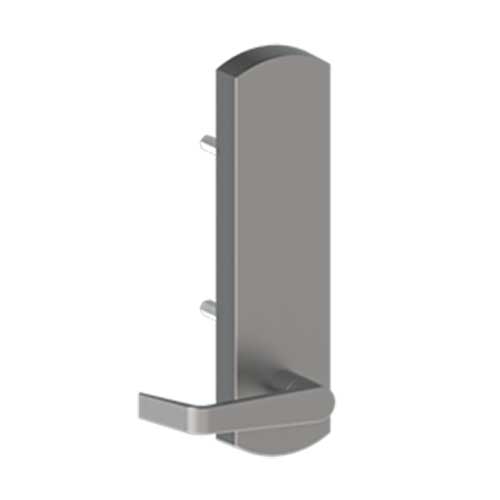

Hager 45DT Exit Trim - Dummy Blank Escutcheon
The Hager 45DT is a heavy-duty, non-functioning exterior trim designed for use with Hager 4500 Series exit devices. Operating as a Dummy Function, this hardware features a rigid lever or pull that does not retract the latchbolt. It is primarily used as a door pull when the exit device is dogged down (locked in the open position) or on the inactive leaf of a pair of doors. This trim provides a consistent, professional appearance across all facility openings while maintaining Grade 1 durability.
Architectural Consistency and Vandal Resistance
The Hager 45DT is engineered for environments where exterior keyed access is not required, but a matching aesthetic is essential. Because the lever is fixed and does not engage the locking mechanism, it serves as a rugged, vandal-resistant handle for pulling the door open. This function is a staple for school entrances, hospital corridors, and commercial lobbies where doors are frequently held open for high-traffic flow during business hours.
Institutional Engineering and Secure Mounting
As part of the Hager 4500 Series, the 45DT is built to withstand the physical demands of institutional use. The trim is constructed with a heavy-duty escutcheon plate and is available in the Withnell (WTN), Archer (ARC), or August (AUG) lever styles to match your existing building hardware. To ensure the handle never pulls away from the door under heavy use, it is installed with a secure thru-bolt system, providing a permanent and rigid attachment.
Technical Specifications
| Feature | Specification |
| Series | Hager 4500 Series Trim |
| Function | Dummy Trim (45DT) |
| Grade | ANSI/BHMA A156.3 Grade 1 (Extra Heavy Duty) |
| Lever Styles | Withnell (WTN), Archer (ARC), August (AUG) |
| Operation | Pull Only (Lever/Pull is always rigid) |
| Compatibility | Hager 4501 RIM, 4501-FR, 4500 SVR/CVR |
| Escutcheon Dimensions | 3" x 10" (76 mm x 254 mm) |
| Handing | Non-Handed (Field Reversible) |
| Fasteners | Thru Bolts (Supplied Standard) |
Standards, Compliance & Installation
- Fire Safety: UL/cUL Listed for use on fire-rated doors when paired with Hager FR exit devices.
- Accessibility: Meets ADA requirements and ANSI A117.1 for easy-to-grip hardware.
- Durability: Heavy-duty zinc or stainless steel construction protects against environmental wear and daily abuse.
- Structural Integrity: The use of thru bolts (sex bolts) prevents the trim from loosening or sagging, ensuring the hardware remains flush and secure against the door face.
Key Product Highlights
- Uniform Facility Design: Allows non-locking doors to perfectly match the appearance of keyed entrance and classroom doors.
- Vandal-Proof Fixed Lever: No moving parts in the trim means fewer points of mechanical failure or potential tampering.
- High-Traffic Performance: Rated for over one million uses, matching the extreme lifespan of the Hager 4500 panic bar line.
- Secure Thru-Bolt Mounting: Engineered to resist the constant "pull" force of high-volume pedestrian traffic without shifting.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| Brand | Hager |
| Series | Hager - 4500 Series |
| Exit Device Trim Function | Dummy |
| Door Handing | Field Reversible |
