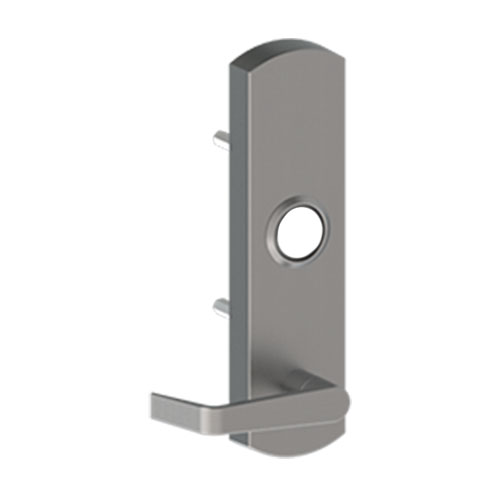

Hager 45NL Exit Trim - Night Latch Escutcheon
The Hager 45NL is a heavy-duty, high-security exterior trim designed for use with Hager 4500 Series exit devices. Operating as a Night Latch Function, this hardware ensures that the exterior lever or pull is always locked. Access from the outside is only possible by using a key to retract the latchbolt, making it the premier choice for stairwell towers, mechanical rooms, rear exit doors, and any area where entry must be strictly controlled while maintaining a clean, narrow-profile architectural aesthetic.
Instant Security and Life-Safety Compliance
The Hager 45NL is engineered for "always-locked" peace of mind. Unlike classroom or entrance trims, the Night Latch function does not allow the lever to be left in an unlocked state. For critical building code and NFPA 101 Life Safety compliance, the interior exit device always allows for free egress, providing an immediate exit path for occupants at all times, even while the exterior remains securely barred to unauthorized entry.
Institutional Engineering and Vandal Resistance
As a heavy-duty solution in the Hager 4500 Series, the 45NL is built to exceed ANSI/BHMA Grade 1 standards, surviving over one million test cycles. The trim features a clutching/free-wheeling lever (when ordered with a lever) that rotates freely when locked to prevent damage to internal components from vandalism or forced entry attempts. The narrow escutcheon design is secured via a rugged thru-bolt installation, keeping the hardware perfectly aligned and preventing lever sag under the stress of 24/7 high-traffic use.
Technical Specifications
| Feature | Specification |
| Series | Hager 4500 Series Trim |
| Function | Night Latch (45NL) |
| Grade | ANSI/BHMA A156.3 Grade 1 (Extra Heavy Duty) |

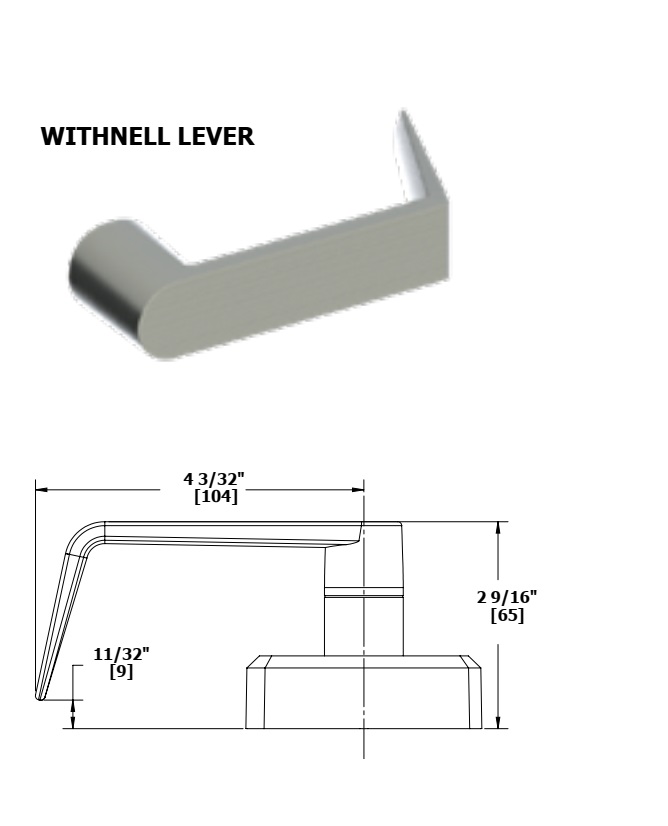

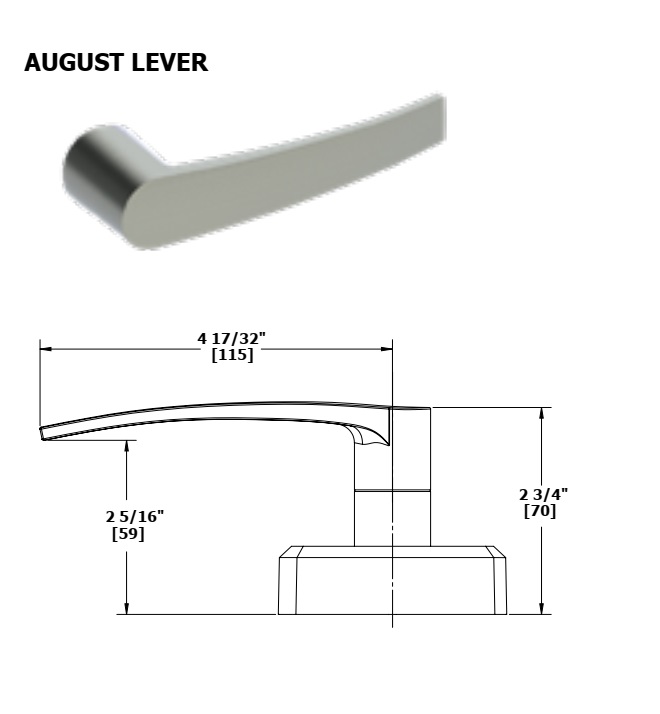

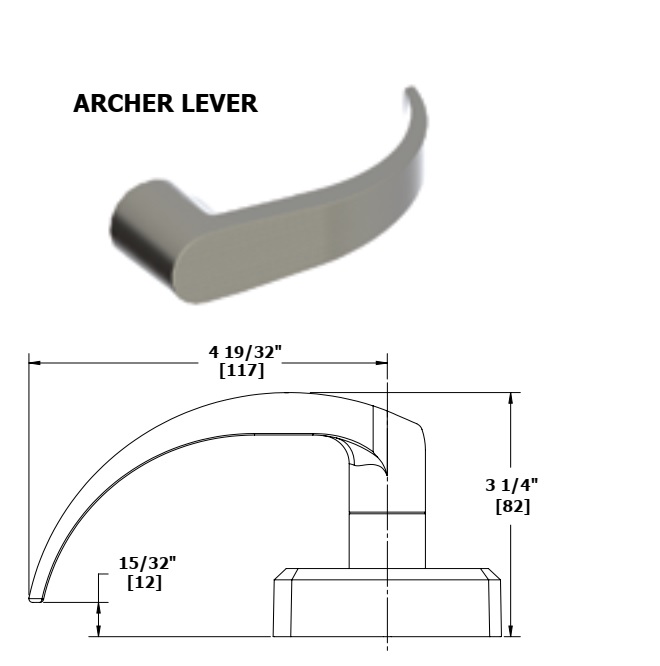

| Lever Styles | Withnell (WTN), Archer (ARC), August (AUG) |
| Cylinder Type | Requires Rim Cylinder (Not Included) |
| Compatibility | Hager 4501 RIM, 4501-FR, 4500 SVR/CVR |
| Escutcheon Dimensions | 3" x 10" (76 mm x 254 mm) |
| Handing | Non-Handed (Field Reversible) |
| Fasteners | Thru Bolts (Supplied Standard) |
Standards, Compliance & Installation
- Fire Safety: UL/cUL Listed for use on fire-rated doors when paired with Hager FR fire-exit hardware.
- Accessibility: Meets ADA requirements and ANSI A117.1 for barrier-free accessibility.
- Durability: Heavy-duty zinc or stainless steel construction ensures resistance to environmental wear and physical abuse.
- Secure Attachment: Utilizing thru bolts ensures the trim remains permanently rigid, preventing the hardware from loosening over time on hollow metal or wood doors.
Key Product Highlights
- Constant Exterior Security: The trim is always locked; a key is required for every entry to prevent unauthorized access.
- Vandal-Resistant Chassis: Utilizing concealed fasteners and robust thru-bolt mounting to maintain structural integrity.
- Million-Cycle Performance: Engineered to match the extreme longevity of the Hager 4500 panic bar line.
- Architectural Finish: Available in professional finishes like Satin Chrome (US26D) and Dark Bronze (US10B) to coordinate with your facility's design.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| Brand | Hager |
| Series | Hager - 4500 Series |
| Exit Device Trim Function | Storeroom |
| Door Handing | Field Reversible |
