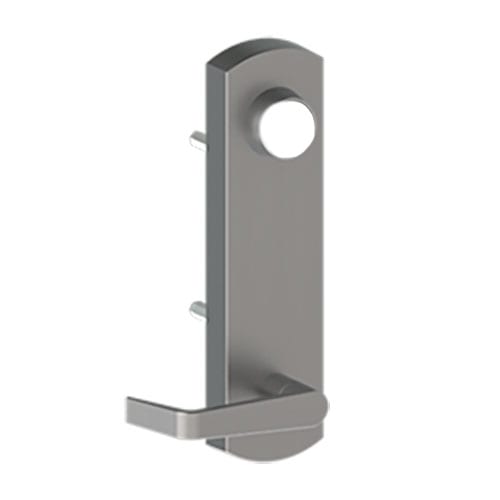

Hager 45CE Exit Trim - Classroom Cylinder Escutcheon
The Hager 45CE is a heavy-duty, high-security exterior trim designed to provide keyed access control for Hager 4500 Series exit devices. Operating as a Classroom Function, this trim allows the exterior lever to be locked or unlocked by a key. When unlocked, the lever operates the exit device for entry; when locked, the lever is rigid, preventing unauthorized access while always allowing free egress from the interior. Featuring a narrow-profile escutcheon, the 45CE is the premier choice for schools, municipal buildings, and commercial offices.
Advanced Security and Vandal Resistance
The Hager 45CE is engineered to withstand the rigors of institutional use. The Cylinder Escutcheon design protects the locking mechanism from tampering and environmental wear. For enhanced security in high-abuse areas, the trim features a clutching/free-wheeling lever that rotates freely when locked, preventing damage to the internal motor or latching mechanism from forced entry attempts. The use of a standard mortise cylinder allows for easy integration into existing master key systems.
Institutional Resilience and Design Versatility
Certified to ANSI/BHMA Grade 1, this trim is built for over one million cycles of reliable operation. The lever is fully ADA compliant, ensuring ease of use for all authorized personnel. To maintain a cohesive architectural look, the 45CE can be ordered with the Withnell (WTN), Archer (ARC), or August (AUG) lever styles and is secured with heavy-duty thru bolts to ensure a permanent, rigid bond to the door.
Technical Specifications
| Feature | Specification |
| Series | Hager 4500 Series Trim |
| Function | Classroom (45CE) |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Lever Styles | Withnell (WTN), Archer (ARC), August (AUG) |
| Cylinder Type | Requires 1-1/8" or 1-1/4" Mortise Cylinder |
| Compatibility | Hager 4501 RIM, 4501-FR, 4500 SVR/CVR |
| Escutcheon Dimensions | 3" x 10" (76 mm x 254 mm) |
| Handing | Non-Handed (Field Reversible) |
| Fasteners | Thru Bolts (Supplied Standard) |
Standards, Compliance & Installation
- Fire Safety: UL/cUL Listed for use on fire-rated doors when paired with Hager FR exit devices.
- Accessibility: Meets ADA requirements and ANSI A117.1 for barrier-free access.
- Durability: Heavy-duty zinc or stainless steel construction ensures long-term performance.
- Secure Attachment: Utilizing thru bolts prevents the trim from loosening or sagging, maintaining alignment with the exit device chassis.
Key Product Highlights
- Keyed Access Control: Exterior lever is easily locked or unlocked by key to manage facility traffic.
- Vandal-Resistant Lever: Clutching mechanism absorbs impact and prevents damage during attempted forced entry.
- Million-Cycle Performance: Built to the same rigorous standards as the Hager 4500 panic bar line.
- Architectural Finish: Available in multiple finishes to coordinate with Satin Chrome, Dark Bronze, and Satin Stainless Steel hardware.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| Brand | Hager |
| Series | Hager - 4500 Series |
| Exit Device Trim Function | Classroom |
| Door Handing | Field Reversible |
