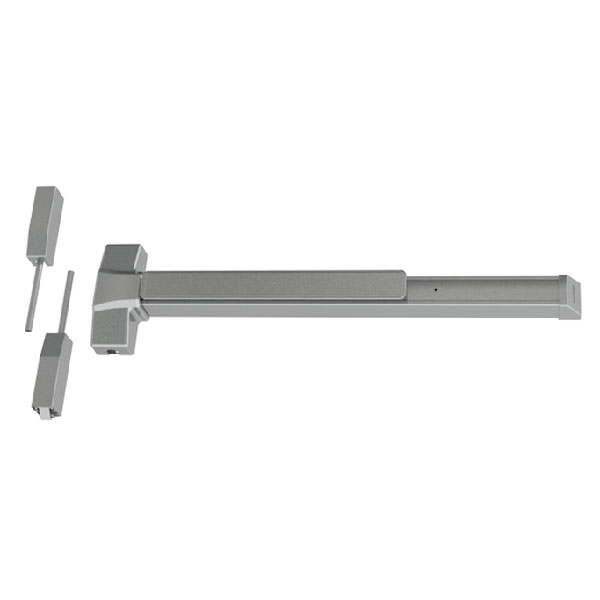

Hager 4501 SVR Exit Device - Non Rated - 4'0"x 7'0" Door
The Hager 4501 SVR is an extra-wide, heavy-duty Grade 1 Surface Vertical Rod exit device specifically designed for 48" x 84" (4'0" x 7'0") commercial doors. Engineered for high-traffic double-door applications where a center mullion is not required, this panic bar provides secure two-point latching at the top and bottom of the door leaf. As a Non-Rated (Panic Hardware) device, it is the ideal choice for oversized secondary exits in schools, convention centers, and large retail warehouses.
Maximum Security for Extra-Wide Openings
Designed to accommodate the increased weight and width of a 4-foot door, the Hager 4501 SVR ensures the opening remains stable and secure. The top latch utilizes a stainless steel Pullman-type bolt for consistent engagement with the strike, while the bottom rod secures into a floor-mounted strike. For facilities requiring high-frequency passage during business hours, the device features hex key dogging, allowing the push bar to be locked down for effortless "push/pull" operation.
Electrified Options & Prefixes
The Hager 4501 SVR for 48" doors can be upgraded with various electrified prefixes to integrate into modern building security and access control systems:
- RX - Request to Exit Switch: Monitors the internal push bar to signal authorized egress.
- RX2 - Dual Request to Exit Switches: Provides redundant monitoring signals for enhanced security.
- LM - Latchbolt Monitoring: Notifies the system when the rods or latches are retracted.
- RXLM - Request to Exit and Latchbolt Monitoring: Combined monitoring for both occupant exit and latch status.
- AI - Authorized Ingress: Monitors the exterior trim for authorized entry attempts.
- RXAI - Authorized Ingress with Key Monitoring: High-security tracking of both ingress and physical key usage.
- DE - Delayed Egress: Delays door opening for 15-30 seconds to prevent unauthorized exiting or theft.
- OBDE - Onboard Delayed Egress: A self-contained, all-in-one delayed egress solution.
- MLR - Motorized Latch Retraction: Enables remote electric unlocking and electronic dogging of the rods.
- MLRX - Motorized Latch Retraction w/ Request to Exit: Motorized control combined with egress monitoring.
- MLRXLM - MLR w/ Request to Exit & Latchbolt Monitoring: A complete monitoring and control suite.
- MLRLM - Motorized Latch Retraction w/ Latchbolt Monitoring: Combines motorized control with real-time latch status.
Technical Specifications
| Feature | Specification |
| Series | Hager 4500 Series |
| Device Type | Surface Vertical Rod (SVR) |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Door Size | 4'0" x 7'0" (48" x 84") |
| Top Latch | 1/2" Stainless Steel Pullman Type |
| Bottom Latch | Square Bolt (Standard) |
| Dogging | Hex Key Dogging (Standard) |
| Fire Rating | Non-Rated (Panic Hardware) |
| Fasteners | Wood/Machine screws and thru bolts supplied standard |
| Handing | Non-Handed (Fully Reversible) |
Standards, Compliance & Durability
- Life Safety: UL305 Listed for Panic Hardware and compliant with NFPA 101 Life Safety Code.
- Accessibility: Fully ADA compliant for push-force and ease of operation.
- Windstorm: Certified for ANSI A250.13 Severe Windstorm resistance.
- Institutional Strength: Tested to exceed one million cycles for reliable performance in high-abuse settings.
- Rigid Installation: Standard thru-bolt mounting ensures a permanent, secure bond to the door, preventing rod misalignment and hardware sagging on extra-wide door leaves.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Hager Exit Device Prefixes | RX - Request to Exit Switch or RX2 - Dual Request to Exit Switches or LM - Latchbolt Monitoring or RXLM - Request to Exit and Latchbolt Monitoring or AI - Authorized Ingress or RXAI - Authorized Ingress with Key Monitoring or DE - Delayed Egress or OBDE - Onboard Delayed Egress or MLR - Motorized Latch Retraction or MLRX - Motorized Latch Retraction w/ Request to Exit Switch or MLRXLM - Motorized Latch Retraction w/ Request to Exit Switch & Latchbolt Monitoring or MLRLM - Motorized Latch Retraction w/ Latchbolt Monitoring |
| Brand | Hager |
| Series | Hager - 4500 Series |
| Exit Device Type | SVR Exit Device |
| Exit Device Fire Rating | Non Rated Door |
| Door Opening Width | 48 Inches |
| Door Height | 7'0" Dr Ht |
