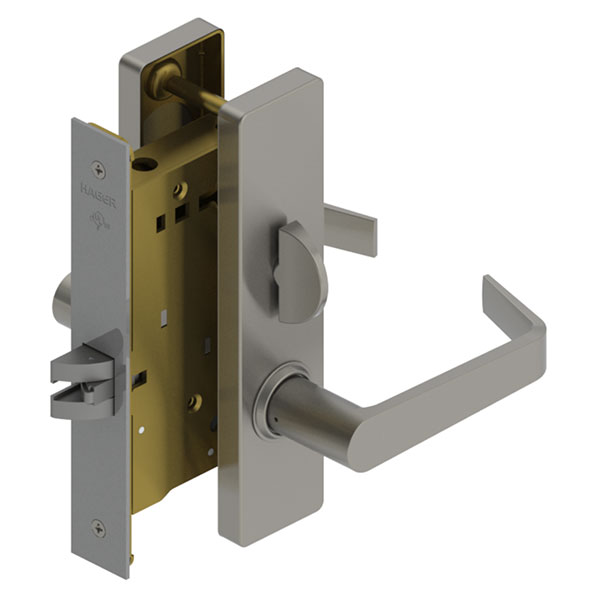

Hager 3896E Privacy Mortise Latchset – Grade 1 Escutcheon with Occupancy Indicator
The Hager 3896E Privacy Mortise Latchset is a heavy-duty, commercial-grade locking solution specifically designed for high-use public areas where visual status is essential, such as single-user restrooms, lactation rooms, and private consulting offices. This Privacy Function (ANSI F22) set features an integrated occupancy indicator on the exterior escutcheon that clearly displays "In Use" (red) or "Vacant" (green). This visual signal reduces unnecessary contact and enhances the user experience in busy healthcare, educational, and corporate settings.
As a BHMA Certified Grade 1 device, the 3896E is built to the highest mechanical standards for long-term reliability. The Escutcheon (E) trim design provides a sleek, continuous vertical plate that offers a clean, professional appearance. The heavy-duty mortise lock body is constructed from case-hardened steel with a corrosion-resistant coating, ensuring smooth operation for millions of cycles.
Visual Privacy & High-Strength Security
The Hager 3896E combines the strength of a mortise lock with the accessibility of an ADA compliant lever handle and thumbturn. The indicator mechanism is precision-linked to the internal thumbturn, providing an accurate status update to those outside the door. For a permanent and stable mount, the escutcheon plates are secured using thru bolts, providing a high-strength, through-the-door connection that keeps the trim perfectly aligned even under heavy daily use.
Key Features
- Occupancy Indicator: Large exterior window displays "In Use/Vacant" or "Red/Green" status.
- Privacy Functionality: Internal thumbturn locks the outside lever; exterior includes an emergency release (ANSI F22).
- Grade 1 Reliability: BHMA certified to meet the highest industry standards for mechanical life and durability.
- ADA Compliant: Ergonomic lever and thumbturn designs meet A117.1 Accessibility Code requirements.
- Escutcheon Trim Design: 2-1/8" x 8" vertical plate provides a clean, high-end architectural look.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 3896E |
| ANSI Function | F22 (Privacy with Indicator) |
| Certification | BHMA Certified Grade 1 (ANSI A156.13) |
| Trim Style | Escutcheon (E) Design |
| Door Thickness | Standard 1-3/4" (Fits 1-3/8" to 2-1/2" doors) |
| Backset | 2-3/4" (70 mm) Standard |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | Lifetime Limited Manufacturer Warranty |
Available Finish & Lever Options
Customize your Hager 3896E at DoorwaysPlus.com to match your facility's architectural aesthetic:
- Lever Designs: Choose from the Archer (ARC), August (AUG), or Withnell (WTN) styles.
- Architectural Finishes: Available in Satin Stainless Steel (US32D), Satin Chrome (US26D), Dark Bronze (US10B), and Bright Brass (US3).
- Anti-Microbial Coating: Optional silver-ion based coating is available for healthcare applications to inhibit the growth of bacteria.
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Brand | Hager |
| ANSI Mortise Lock Function | F22 - Privacy |
| Series | Hager - 3800 Series |
| Occupancy Indicator | Yes |
