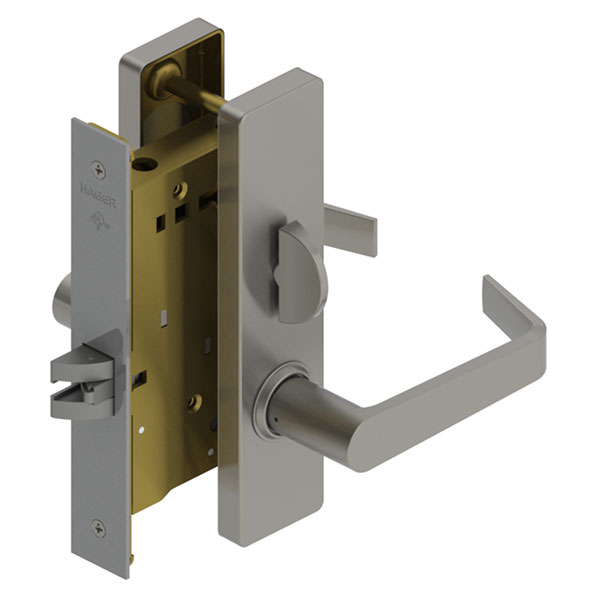

Hager 3850E Office Mortise Lockset – Grade 1 Escutcheon Entrance Trim
The Hager 3850E Office Mortise Lockset is a premier, heavy-duty security solution designed for commercial office environments, executive suites, and entrance doors. This Office/Entrance Function (ANSI F04) set provides sophisticated access control: the outside lever is locked or unlocked by a key from the outside or by a thumbturn from the inside. This versatility allows for "open" business hours while providing high-security deadlocking during off-hours.
As a BHMA Certified Grade 1 device, the 3850E is built to withstand the most demanding physical environments. The Escutcheon (E) trim design offers a sleek, continuous vertical plate that provides a clean, professional appearance and superior protection for the lock cylinders. The heavy-duty mortise lock body is constructed from case-hardened steel, ensuring smooth mechanical performance for millions of cycles.
Executive Security & Industrial Strength
The Hager 3850E combines the strength of a mortise lock with the accessibility of an ADA compliant lever handle and thumbturn. The internal components are precision-engineered to provide a solid tactile feel, ensuring the levers do not sag even after years of high-frequency use. For a permanent and stable mount, the escutcheon plates are secured using thru bolts, providing a high-strength, through-the-door connection that keeps the hardware perfectly aligned.
Key Features
- Office/Entrance Function: Key or thumbturn locks/unlocks the outside lever (ANSI F04).
- Grade 1 Reliability: BHMA certified to meet the highest industry standards for mechanical life and durability.
- ADA Compliant: Ergonomic lever and thumbturn designs meet A117.1 Accessibility Code requirements.
- Escutcheon Trim Design: 2-1/8" x 8" vertical plate provides a high-end architectural look.
- Anti-Friction Latch: 3/4" throw stainless steel latchbolt with an anti-friction tongue for smooth closing.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 3850E |
| ANSI Function | F04 (Office / Entrance) |
| Certification | BHMA Certified Grade 1 (ANSI A156.13) |
| Trim Style | Escutcheon (E) Design |
| Door Thickness | Standard 1-3/4" (Fits up to 2-1/2" doors) |
| Backset | 2-3/4" (70 mm) Standard |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | Lifetime Limited Manufacturer Warranty |
Available Finish & Lever Options
Customize your Hager 3850E at DoorwaysPlus.com to match your facility's architectural aesthetic:

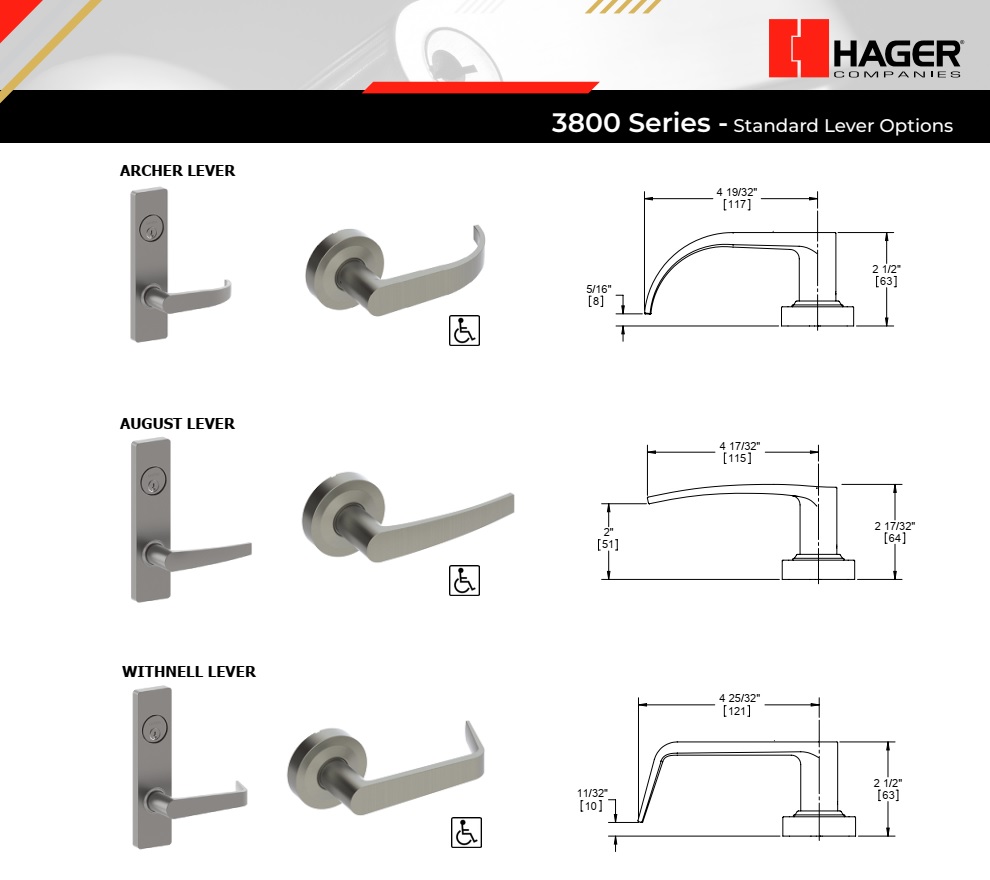

- Lever Designs: Choose from the Archer (ARC), August (AUG), or Withnell (WTN) styles.
- Architectural Finishes: Available in Satin Stainless Steel (US32D), Satin Chrome (US26D), Dark Bronze (US10B), and Bright Brass (US3).

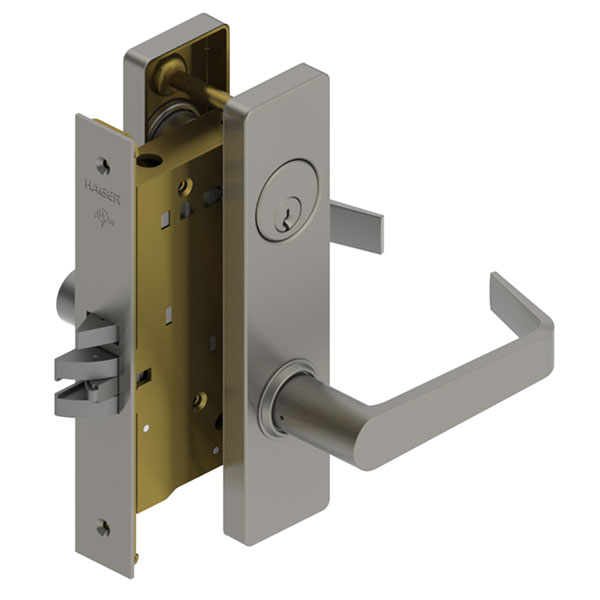

- Cylinder Options: Conventional Schlage C Keyway standard; compatible with SFIC for high-security key control.
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Cylinder Options | SCC - Schlage C Keyway or Less Cylinder |
| Brand | Hager |
| ANSI Mortise Lock Function | F04 - Office Entry |
| Series | Hager - 3800 Series |
