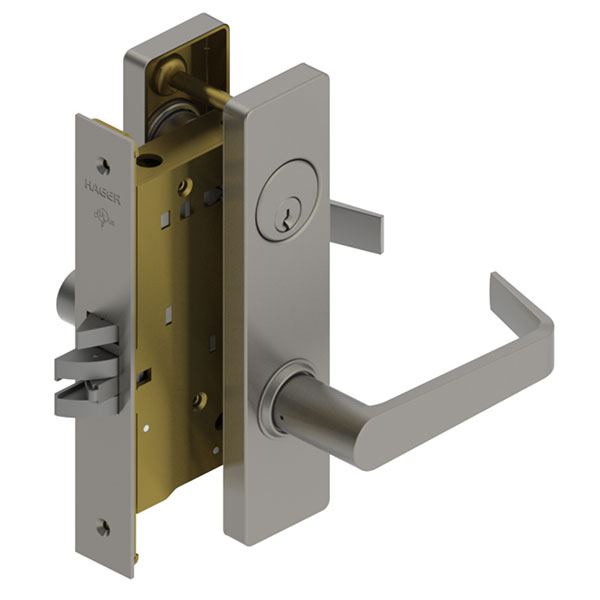

Hager 3882E Institution Mortise Lockset – Grade 1 Escutcheon Security Trim
The Hager 3882E Institution Mortise Lockset is a heavy-duty, maximum-security solution designed for high-risk environments where access must be strictly controlled from both sides of the door. This Institution Function (ANSI F30) set—often referred to as a Double Cylinder lock—features rigid levers on both the interior and exterior. Entrance and exit are only possible via a key, which retracts the latchbolt. This configuration is the premier choice for detention centers, psychiatric facilities, and high-security research labs where occupant movement must be monitored and restricted.
As a BHMA Certified Grade 1 device, the 3882E is built to the highest mechanical standards for extreme industrial use. The Escutcheon (E) trim design offers a sleek, continuous vertical plate that provides a professional appearance and superior protection for the lock cylinders against tampering or vandalism. The heavy-duty mortise lock body is constructed from case-hardened steel, ensuring smooth performance for millions of cycles under duress.
Absolute Access Control & Industrial Strength
The Hager 3882E combines the strength of an industrial mortise lock with the accessibility of an ADA compliant lever handle. Unlike standard locks, this set eliminates the possibility of unauthorized exit by requiring a key for operation from either side. For a permanent and stable mount, the escutcheon plates are secured using thru bolts, providing a high-strength, through-the-door connection that keeps the hardware perfectly aligned and resistant to extreme force.
Key Features
- Institution Functionality: Both levers are always rigid; entry and exit by key only (ANSI F30).
- Grade 1 Reliability: BHMA certified to meet the highest industry standards for mechanical life and strength.
- Double Cylinder Design: Maximum security for applications requiring total movement control.
- ADA Compliant: Ergonomic lever handles meet A117.1 Accessibility Code requirements for ease of use.
- Escutcheon Trim Design: 2-1/8" x 8" vertical plate provides a high-end, unified architectural look.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 3882E |
| ANSI Function | F30 (Institution / Double Cylinder) |
| Certification | BHMA Certified Grade 1 (ANSI A156.13) |
| Trim Style | Escutcheon (E) Design |
| Door Thickness | Standard 1-3/4" (Fits 1-3/8" to 2-1/2" doors) |
| Backset | 2-3/4" (70 mm) Standard |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | Lifetime Limited Manufacturer Warranty |
Available Finish & Style Options
Customize your Hager 3882E at DoorwaysPlus.com to match your facility's architectural aesthetic:
- Lever Designs: Choose from the Archer (ARC), August (AUG), or Withnell (WTN) styles.
- Architectural Finishes: Available in Satin Stainless Steel (US32D), Satin Chrome (US26D), Dark Bronze (US10B), and Bright Brass (US3).
- Cylinder Options: Conventional Schlage C Keyway standard; compatible with SFIC (Small Format Interchangeable Core) for rapid re-keying.
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Cylinder Options | SCC - Schlage C Keyway or Less Cylinder |
| Brand | Hager |
| ANSI Mortise Lock Function | F30 - Asylum (dbl cyl) |
| Series | Hager - 3800 Series |
