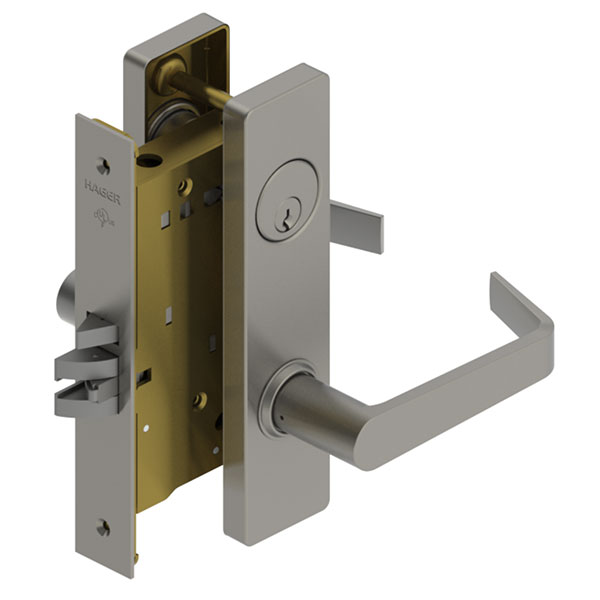

Hager 3861E Apartment Entrance Mortise Lockset – Grade 1 Escutcheon Trim
The Hager 3861E Apartment Entrance Mortise Lockset is a premier, heavy-duty security solution specifically engineered for multi-family housing, apartment complexes, and upscale residential suites. This Apartment Entrance Function (ANSI F08/F10) set provides a sophisticated balance of resident security and convenience: the latchbolt is operated by a lever from either side unless the outside lever is locked by a toggle. The deadbolt is projected by a key from the outside or a thumbturn from the inside. Crucially, a turn of the inside lever retracts both the latch and the deadbolt simultaneously, ensuring a fast, single-motion egress during emergencies.
As a BHMA Certified Grade 1 device, the 3861E is built to withstand the rigorous daily use of high-density housing. The Escutcheon (E) trim design offers a sleek, continuous vertical plate that provides a clean, professional appearance and superior protection for the lock cylinders. The heavy-duty mortise lock body is constructed from case-hardened steel, ensuring smooth mechanical performance for millions of cycles.
Commercial Security & Industrial Strength
The Hager 3861E combines the strength of an industrial mortise lock with the accessibility of an ADA compliant lever handle and thumbturn. The internal components are precision-engineered to provide a solid tactile feel, ensuring the handles remain level and responsive even after years of constant operation. For a permanent and stable mount, the escutcheon plates are secured using thru bolts, providing a high-strength, through-the-door connection that resists tampering and keeps the hardware perfectly aligned.
Key Features
- Apartment Entrance Function: Toggle-controlled locking with deadbolt security (ANSI F08/F10).
- Single-Motion Egress: Inside lever retracts both latch and deadbolt for immediate emergency exit.
- Grade 1 Reliability: BHMA certified to meet the highest industry standards for mechanical life.
- ADA Compliant: Ergonomic lever and thumbturn designs meet A117.1 Accessibility Code requirements.
- Escutcheon Trim Design: 2-1/8" x 8" vertical plate provides a high-end architectural look.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 3861E |
| ANSI Function | F08 / F10 (Apartment Entrance) |
| Certification | BHMA Certified Grade 1 (ANSI A156.13) |
| Trim Style | Escutcheon (E) Design |
| Door Thickness | Standard 1-3/4" (Fits up to 2-1/2" doors) |
| Backset | 2-3/4" (70 mm) Standard |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | Lifetime Limited Manufacturer Warranty |
Available Finish & Lever Options
Customize your Hager 3861E at DoorwaysPlus.com to match your facility's architectural aesthetic:
- Lever Designs: Choose from the Archer (ARC), August (AUG), or Withnell (WTN) styles.
- Architectural Finishes: Available in Satin Stainless Steel (US32D), Satin Chrome (US26D), Dark Bronze (US10B), and Bright Brass (US3).
- Cylinder Options: Conventional Schlage C Keyway standard; compatible with SFIC for high-security key control.
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Cylinder Options | SCC - Schlage C Keyway or Less Cylinder |
| Brand | Hager |
| ANSI Mortise Lock Function | F09 - Public (dbl cyl) |
| Series | Hager - 3800 Series |
